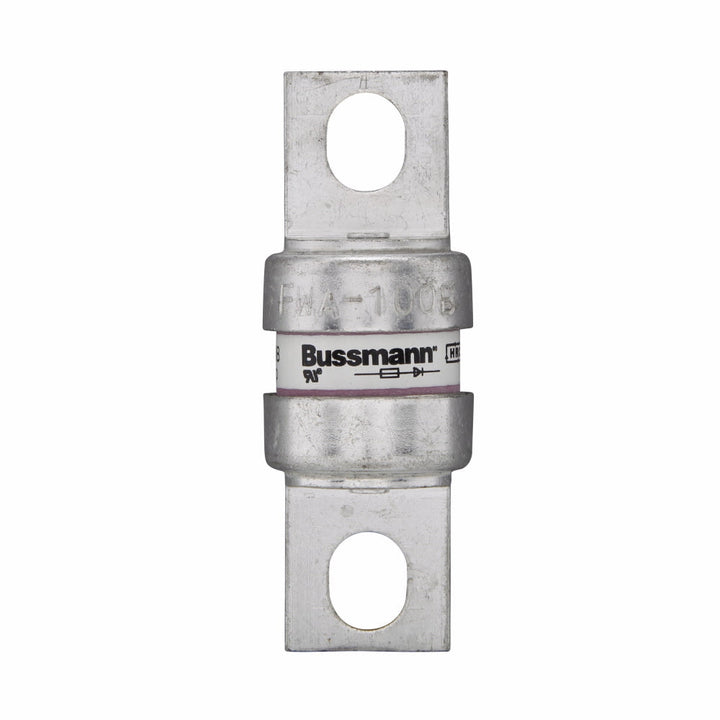

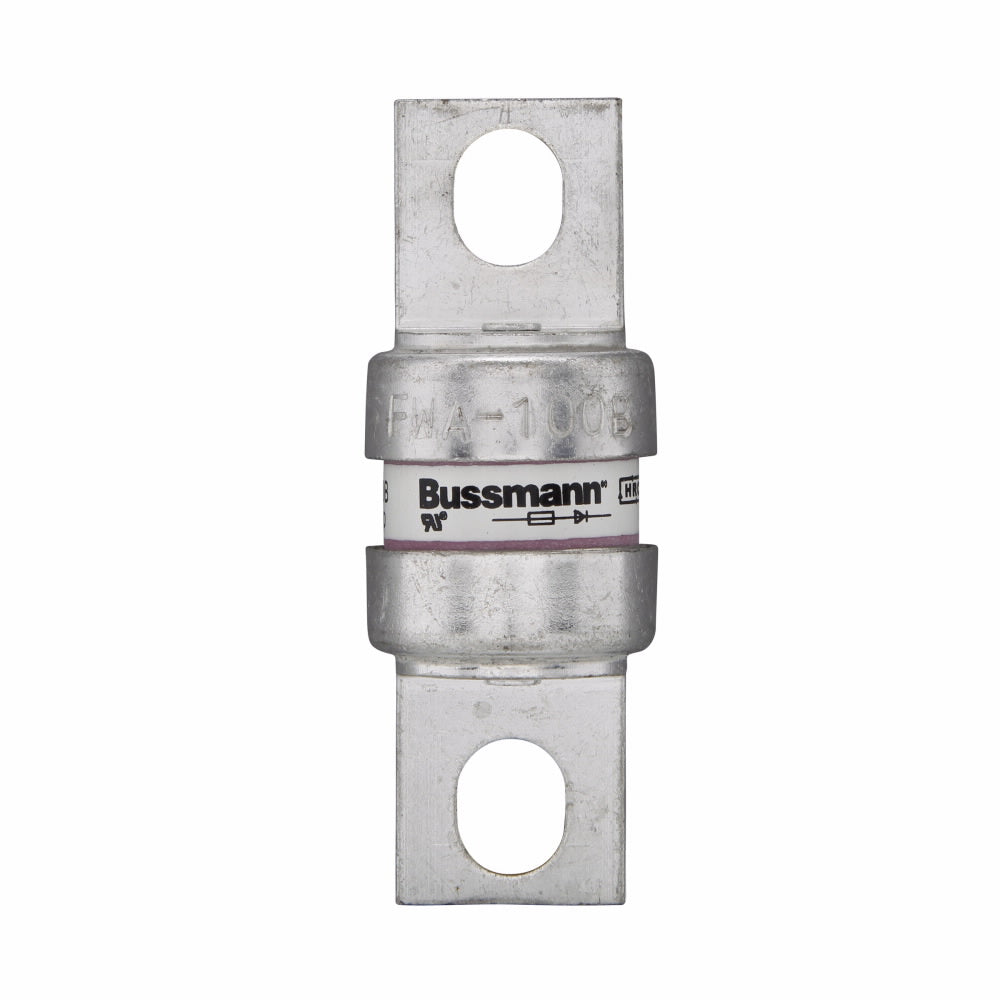

Bussmann FWA-125B - FWA Fuse 125A 150VDC (100kA AIC)

Bussmann
Price
Save $114.32
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Bussmann FWA-125B is a low voltage fuse designed for providing high-interrupting capacity protection in DC power circuits, such as those found in photovoltaic systems and battery banks. It features a 125A current rating and a 150V voltage rating, with a compact physical footprint of 26 mm x 26 mm x 72 mm and a stud connection type. The fuse is constructed as a single-barrel, fast-acting semiconductor protection type, complying with key industry standards including UL Recognition and CSA certification. Its 100kA AIC rating at 150V makes it suitable for safeguarding sensitive electronic components from short-circuit faults in industrial power conversion and renewable energy applications.

Key Features & Specifications
  • Type: FWA, Fast-Acting, Semiconductor Protection Fuse
  • Voltage Rating: 150V DC
  • Current Rating: 125A
  • Dimensions: 26 mm x 26 mm x 72 mm (L/D x H x W)
  • Standards: CE, UL Recognized (Guide JFHR2, File 60314), CSA Certified (LR12636)
  • Applications: DC Circuit Protection, Photovoltaic Systems, Battery Banks, Power Conversion
  • AIC rating: 100kA @ 150V
  • Connection: Stud
  • Barrels: 1
  • Family: FWA Series
  • Country of Origin: India
  • Weight: 0.2024 lb


Product Identification
  • UPC: 051712577816
  • GTIN: 00051712577816
