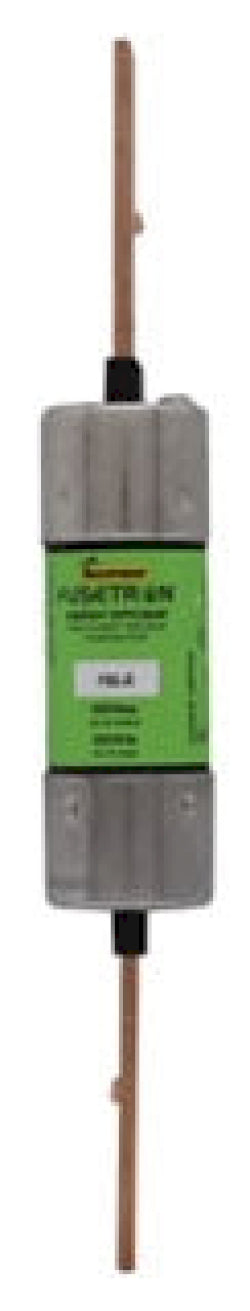

Bussmann FRS-R-90 - RK5 Time-Delay Fuse 90A 600V

Bussmann
Price
Save $135.35
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Bussmann FRS-R-90 is a low-voltage, time-delay fuse designed for branch circuit and feeder protection in industrial electrical systems. It features a 90A current rating and a 600V AC voltage rating, housed in a durable 7.88-inch long, single-barrel body with a 1.11-inch diameter. The fuse is constructed to the RK5 class rating, providing a 200kA interrupting capacity at 600V and is certified to UL 248-12, CSA Class 1422-01, and CE standards. Typical applications include protecting motors, transformers, and conductors where high fault currents and inrush conditions are present.

Key Features & Specifications
  • Type: Fusetron FRS-R, time-delay, low-voltage fuse, single barrel
  • Voltage Rating: 600V AC
  • Current Rating: 90A
  • Dimensions: 7.88 in L x 1.34 in H x 1.34 in W
  • Weight: 0.35 lb
  • Diameter: 1.11 in
  • Class Rating: RK5
  • AIC Rating: 200kA @ 600V
  • Standards: UL 248-12 (Guide JDDZ), CSA Certification Class 1422-01, CE
  • Applications: Branch circuit and feeder protection for motors, transformers, and wiring


Product Identification
  • UPC: 051712508421
  • GTIN: 00051712508421
