Bussmann FRS-R-6-1/4ID - Time-Delay Fuse RK5 Class (200kA AIC @600V)

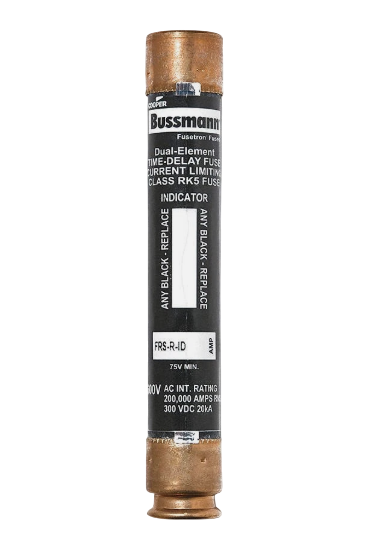

The Bussmann FRS-R-6-1/4ID is a time-delay fuse designed for comprehensive circuit protection in industrial electrical systems, providing reliable overload and short-circuit interruption. It features a 600V AC voltage rating with a 6A current rating, delivering 200kA interrupting capacity at rated voltage for robust fault protection. Constructed as a single-barrel RK5 class fuse measuring 5 inches in length with 0.81-inch diameter, this 1.4 lb device ensures dependable performance through its time-delay characteristics. The fuse meets rigorous industry standards including UL 248-12 and CSA Certification Class 1422-01, along with CE compliance. Typical applications include motor branch circuits, transformers, and industrial control panels where coordinated protection is essential.

Key Features & Specifications

• Type: Time-delay fuse, single barrel construction, RK5 class rating
• Voltage Rating: 600V AC
• Current Rating: 6A
• Dimensions: 5 inches length, 0.81 inches diameter
• Standards: UL 248-12 Guide JDDZ, CSA Certification Class 1422-01, CE
• Applications: Motor circuits, transformers, industrial control panels
• AIC rating: 200kA@600V
• Class Rating: RK5
• Barrels: 1
• Weight: 1.4 lb
• Certification: CE, CSA Certification Class 1422-01, UL 248-12 Guide JDDZ

Product Identification

• UPC: 05171220449
• GTIN: 00051712204491
