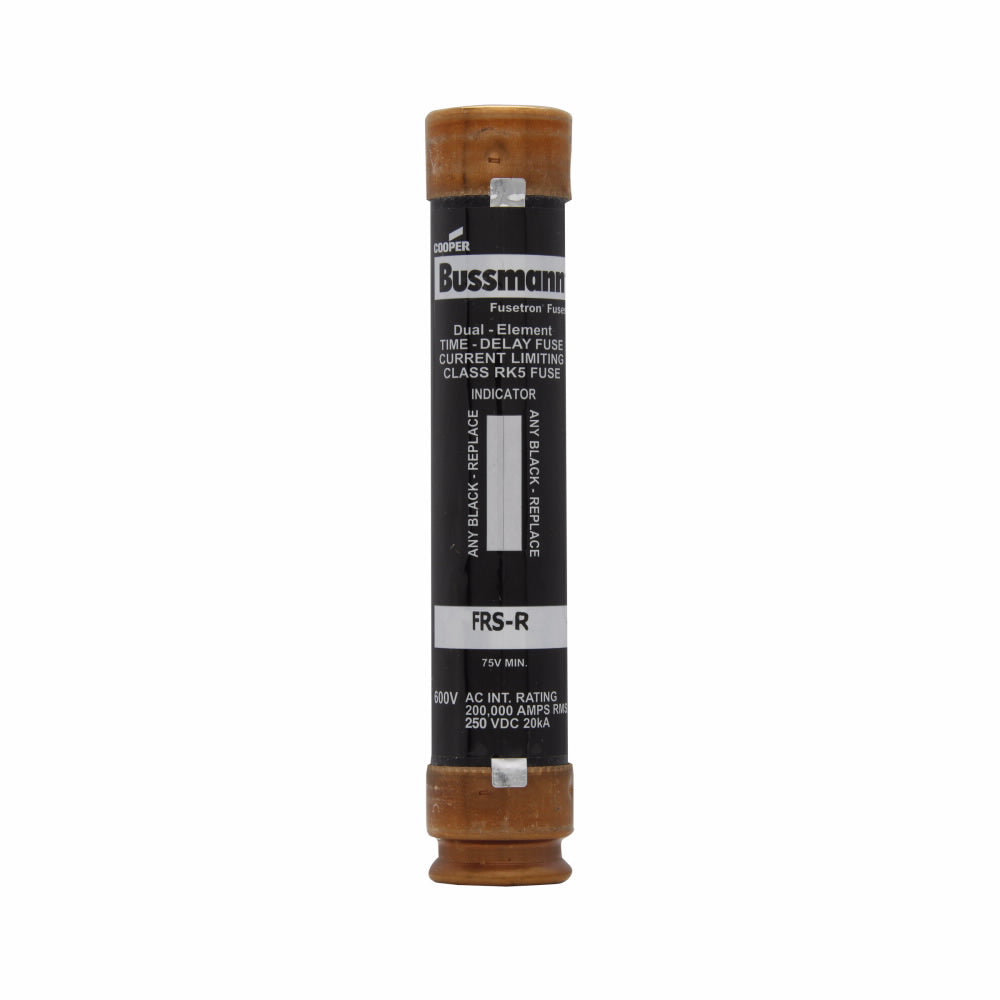

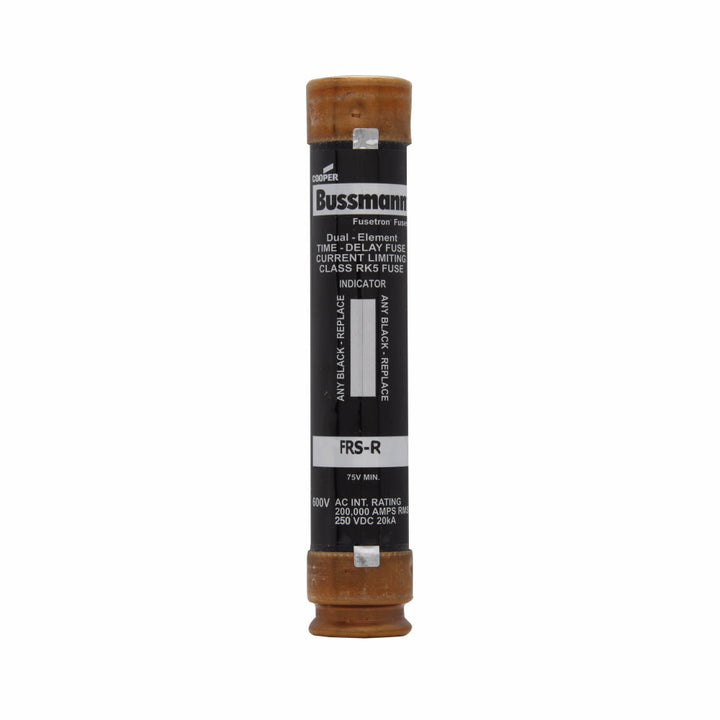

Bussmannn FRS-R-40ID - Fusetron Time-Delay Fuse 40A (200kA AIC @600V)

Bussmannn FRS-R-40ID is a Fusetron time-delay fuse designed for circuit protection in industrial electrical systems. It features a 600V AC rating with a 40A current capacity and 200kA interrupting rating, housed in a 5-1/2 inch cylindrical body with 1.06-inch diameter. The RK5-class fuse meets UL 248-12, CSA Class 1422-01, and CE standards for safety compliance, making it suitable for motor circuits, transformers, and feeder protection applications.

Key Features & Specifications

• Type: Time-delay low-voltage fuse with dual-element construction
• Voltage Rating: 600V AC
• Current Rating: 40A
• Dimensions: 5-1/2 in length, 1.06 in diameter
• Standards: UL 248-12 (JDDZ), CSA Class 1422-01, CE
• Applications: Motor circuits, transformers, industrial feeders
• Class Rating: RK5
• AIC rating: 200kA@600V
• Barrels: 1
• Weight: 2 lb
• Country of Origin: United States

Product Identification

• UPC: 051712204620
• GTIN: 00051712204620
