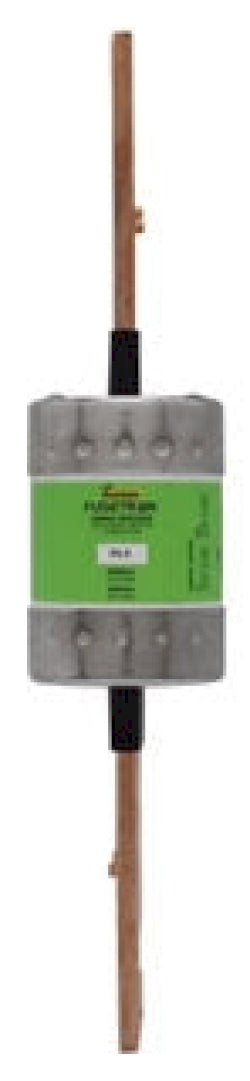

Eaton Bussmann FRS-R-225 - RK5 Time-Delay Fuse 225A (200kA AIC @600V)

Eaton Bussmann FRS-R-225 is a time-delay, current-limiting fuse designed for comprehensive circuit protection in industrial power distribution systems. It features a 600V AC voltage rating and 225A current rating with a high 200kA interrupting capacity at 600V AC. The fuse construction includes a single-barrel design with 2.34-inch diameter and 11-5/8-inch length, weighing 1 lb, utilizing RK5 class rating for effective motor circuit protection. It complies with UL 248-12, CSA Certification Class 1422-01, and CE standards for industrial safety requirements. Typical applications include motor branch circuits, feeder circuits, and industrial control panels where coordinated protection is essential.

Key Features & Specifications

• Type: Time-delay current-limiting fuse, RK5 class, single barrel construction
• Voltage Rating: 600V AC
• Current Rating: 225A
• Dimensions: 11-5/8 inch length, 2.34 inch diameter
• Standards: UL 248-12 Guide JDDZ, CSA Certification Class 1422-01, CE
• Applications: Motor branch circuits, feeder circuits, industrial control panels
• AIC rating: 200kA@600V AC
• Class Rating: RK5
• Barrels: 1
• Weight: 1 lb
• Certification: CE, CSA Certification Class 1422-01, UL 248-12 Guide JDDZ

Product Identification

• UPC: 051712508490
• GTIN: 00051712508490
