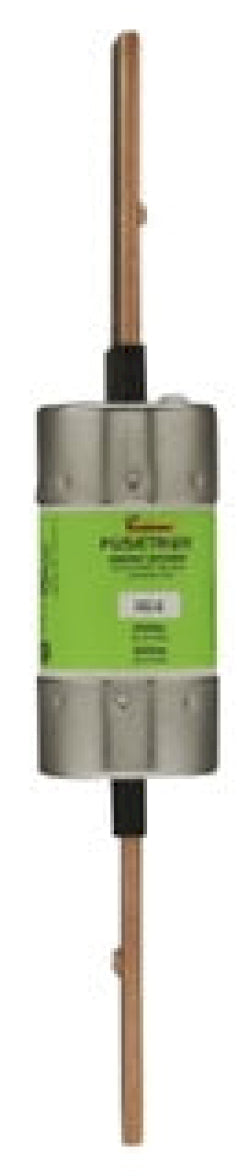

Bussmann FRS-R-175 - Time-Delay Fuse 175A (RK5 Class, 200kA AIC)

Bussmann FRS-R-175 is a Fusetron time-delay fuse designed for comprehensive circuit protection in industrial power distribution systems. This low-voltage fuse features a 175A current rating and 600V voltage rating, providing reliable overload and short-circuit protection. The single-barrel construction measures 1.61 inches in diameter with a 9-5/8 inch length and weighs 1 lb, built to RK5 class specifications for time-delay characteristics. It meets UL 248-12, CSA Certification Class 1422-01, and CE standards with a 200kA interrupting rating at 600V AC. Typical applications include motor branch circuits, transformers, and feeder circuits where coordinated protection is essential.

Key Features & Specifications

• Type: Fusetron time-delay fuse, single barrel construction
• Voltage Rating: 600V AC
• Current Rating: 175A
• Dimensions: 1.61" diameter x 9-5/8" length
• Standards: UL 248-12 Guide JDDZ, CSA Certification Class 1422-01, CE
• Applications: Motor circuits, transformers, industrial power distribution
• Class Rating: RK5
• AIC rating: 200kA@600V
• Barrels: 1
• Weight: 1 lb
• Family: Fusetron
• Country of Origin: Mexico

Product Identification

• UPC: 051712508476
• GTIN: 00051712508476
