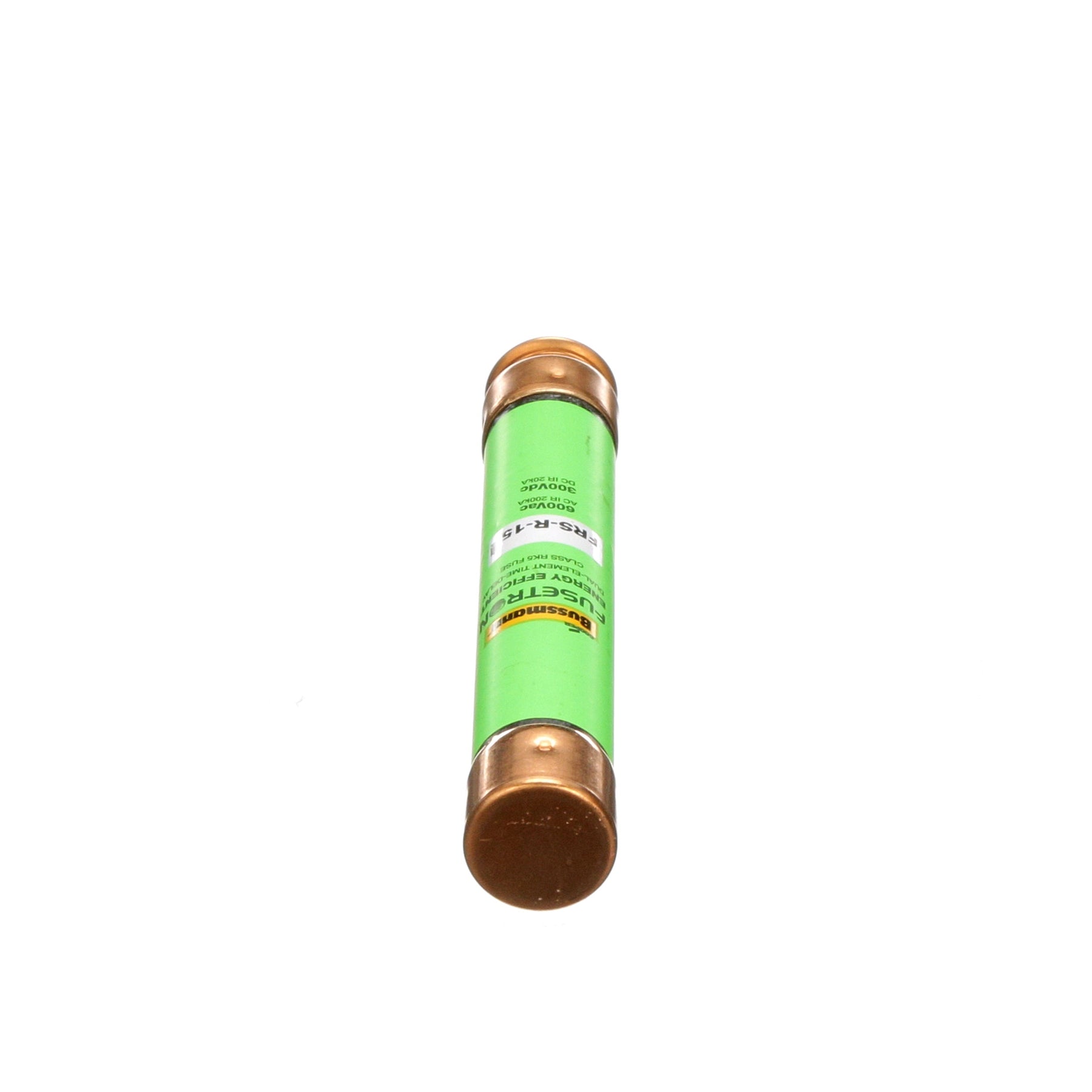

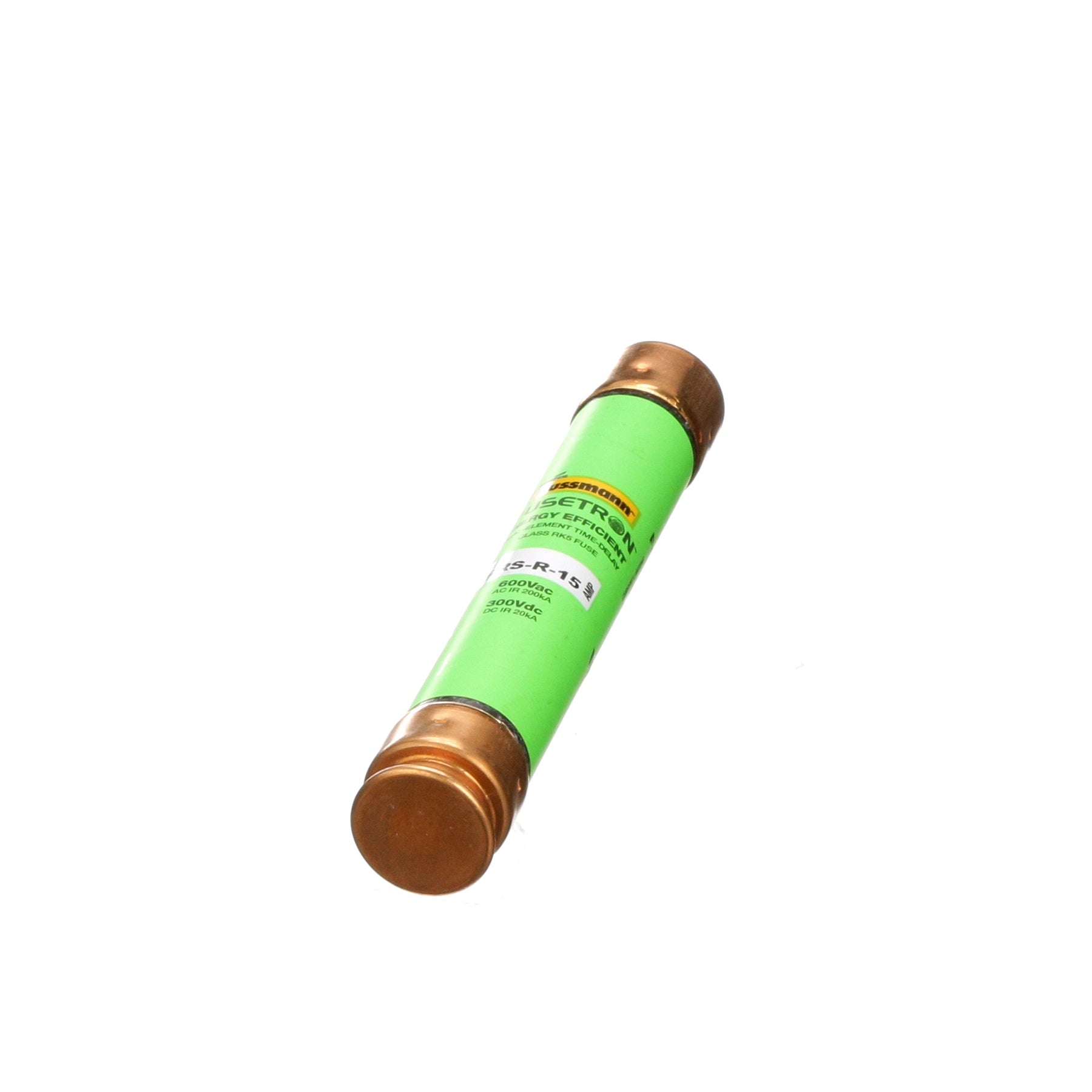

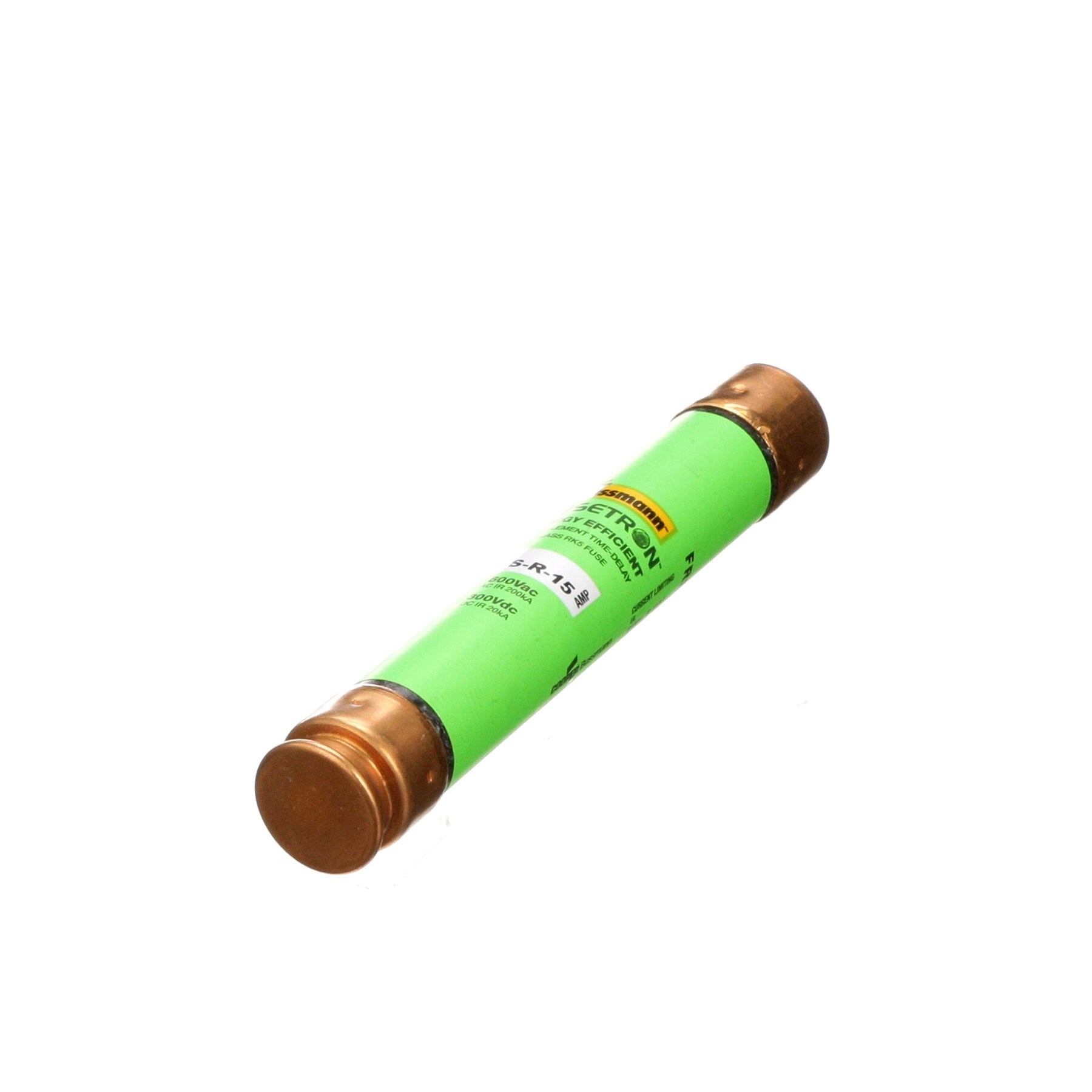

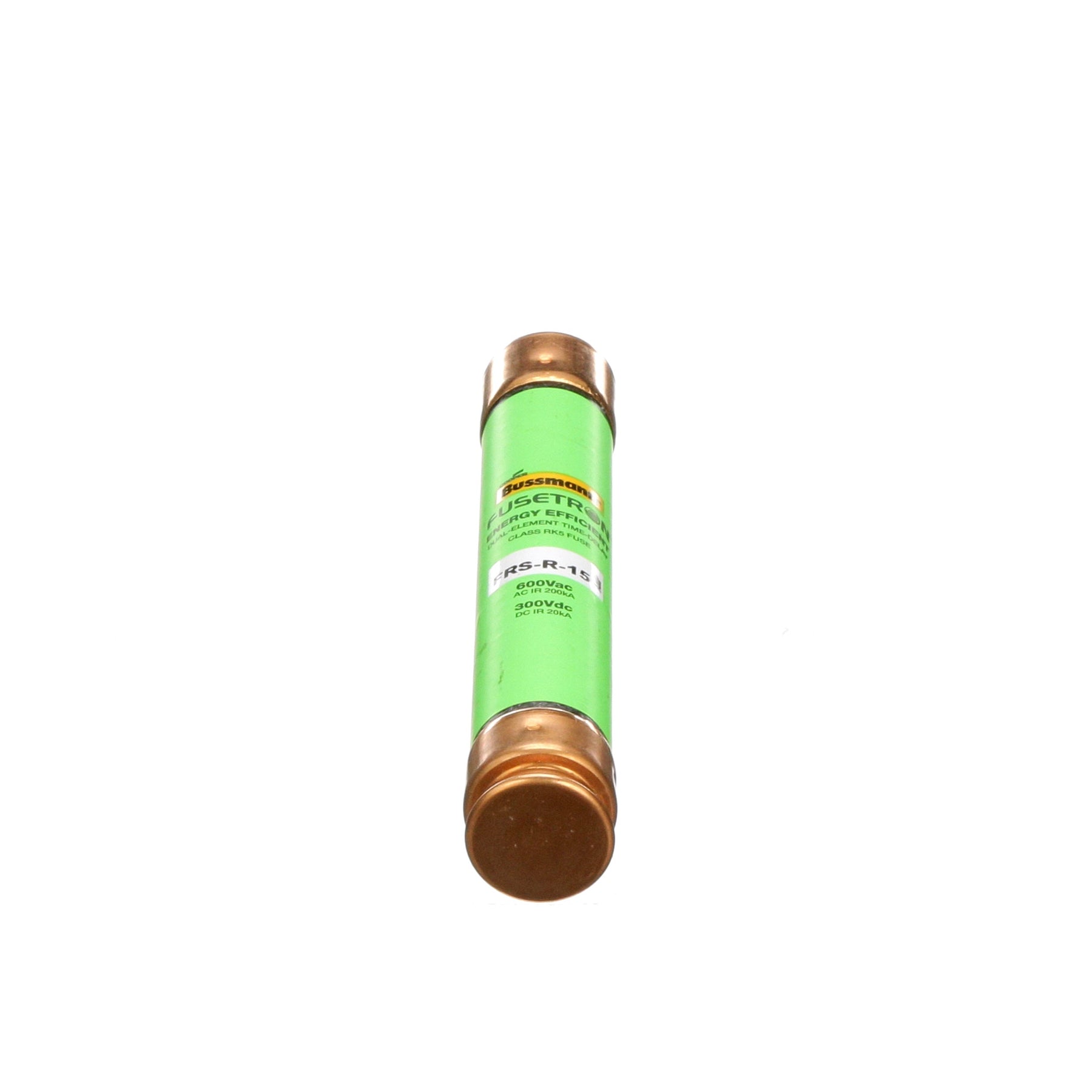

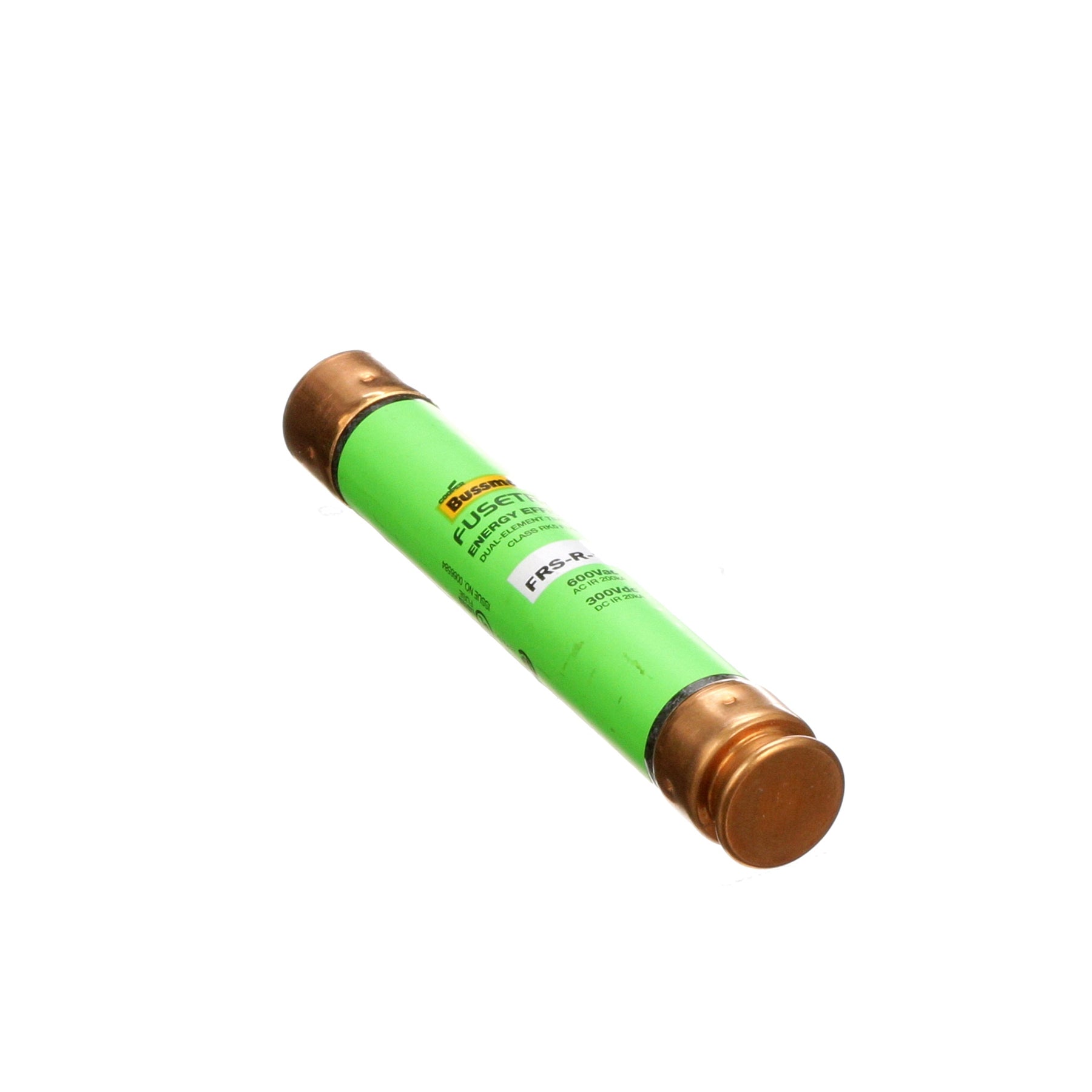

Bussmann FRS-R-15 - RK5 Time-Delay Fuse 15A 600V

Bussmann
Price
Save $539.88
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Bussmann FRS-R-15 is a low-voltage, time-delay fuse designed for branch circuit and feeder protection in industrial electrical systems. It provides a 15A current rating and a 600V voltage rating, featuring a single-barrel RK5 class construction with a 0.81-inch diameter and a 5-inch length for consistent mounting. The fuse is certified to UL 248-12 and CSA Class 1422-01 standards, with an interrupting rating of 200kA at 600V AC, ensuring reliable protection against short-circuits and overloads in motor control centers, HVAC systems, and industrial panels.

Key Features & Specifications
  • Type: Fusetron time-delay, current-limiting, low-voltage fuse with RK5 class rating
  • Voltage Rating: 600V AC
  • Current Rating: 15A
  • Dimensions: 5 in L x 0.81 in H x 0.81 in W (127mm x 20.6mm x 20.6mm)
  • Standards: CE, CSA Certification Class 1422-01, UL 248-12 Guide JDDZ
  • Applications: Industrial branch circuit and feeder protection, motor circuits, HVAC, panelboards
  • AIC rating: 200kA @ 600V AC
  • Class Rating: RK5
  • Barrels: 1
  • Diameter: 0.81 in (20.6 mm)
  • Weight: 0.165 lb
  • Country of Origin: Mexico


Product Identification
  • UPC: 051712508308
  • GTIN: 00051712508308
