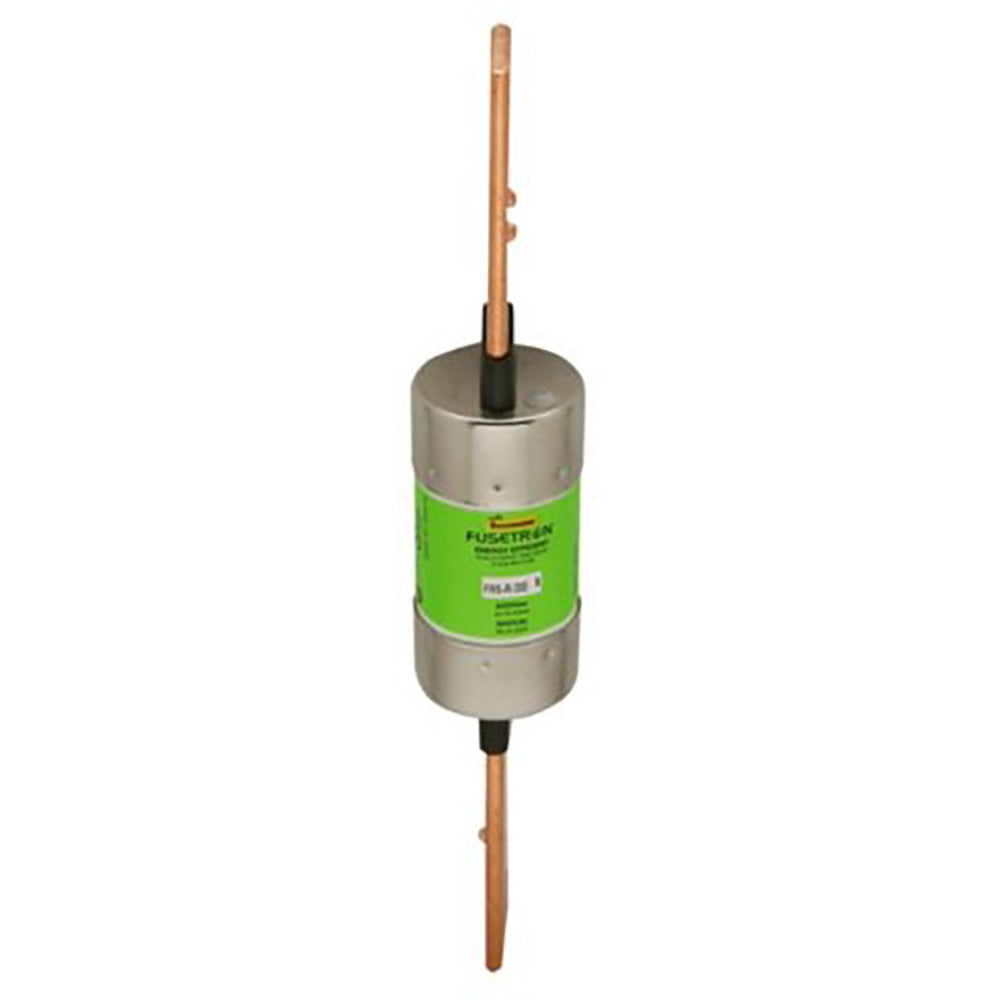

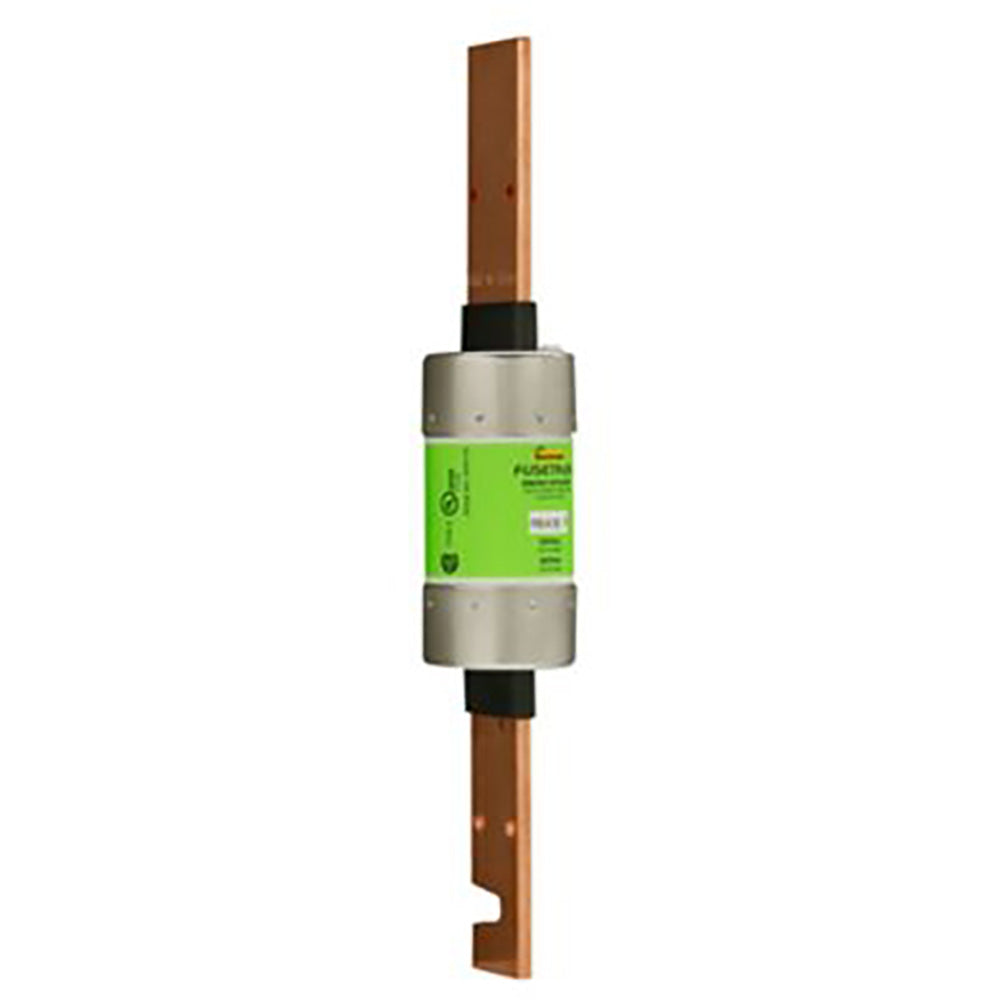

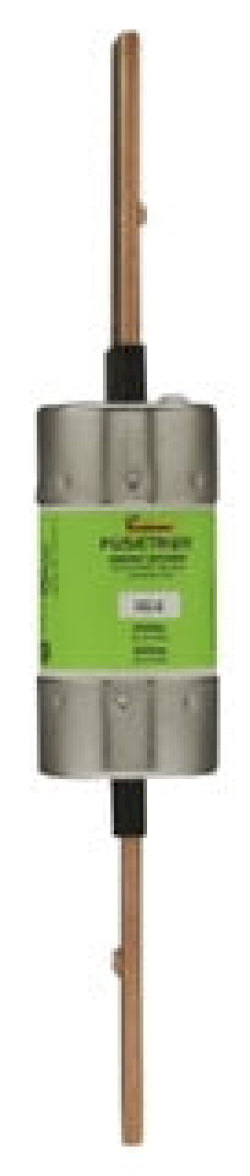

Bussmann FRS-R-110 - Time-Delay Fuse 110A (RK5 Class, 200kA AIC)

Bussmann FRS-R-110 is a Fusetron time-delay fuse designed for comprehensive circuit protection in industrial power distribution systems. It features a 110A current rating and 600V voltage rating with a high 200kA interrupting capacity for reliable fault protection. The fuse measures 9-5/8 inches in length with a 1.61-inch diameter and single-barrel construction, manufactured to RK5 class specifications for time-delay characteristics. It complies with UL 248-12, CSA Certification Class 1422-01, and CE standards, ensuring robust performance in demanding industrial environments including motor circuits, transformers, and power distribution equipment.

Key Features & Specifications

• Type: Fusetron time-delay fuse, RK5 class, single barrel construction
• Voltage Rating: 600V AC
• Current Rating: 110A
• Dimensions: 9-5/8 inches length, 1.61 inches diameter
• Standards: UL 248-12 Guide JDDZ, CSA Certification Class 1422-01, CE
• Applications: Industrial power distribution, motor protection, transformer circuits
• AIC rating: 200kA@600V
• Class Rating: RK5
• Barrels: 1
• Weight: 1 lb
• Country of Origin: Mexico

Product Identification

• UPC: 051712508445
• GTIN: 00051712508445
