Bussmann FRS-R-100 - RK5 Time-Delay Fuse 100A 600V

Bussmann
Price
Save $136.75
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

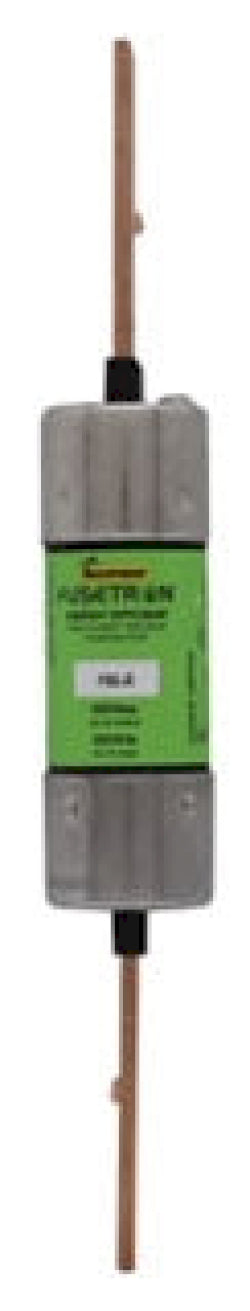

Bussmann FRS-R-100 is a low-voltage current-limiting fuse designed for branch circuit and feeder protection in industrial electrical systems. It provides a 100A current rating with a 600V AC voltage rating and a high 200kA interrupting capacity at that voltage. The fuse features a single-barrel RK5 class construction with a 1.11-inch diameter and a 7.88-inch length, built to UL 248-12, CSA Class 1422-01, and CE standards for reliable overcurrent protection in demanding applications such as motor control centers, industrial panels, and power distribution equipment.

Key Features & Specifications
  • Type: Fusetron FRS-R, time-delay, current-limiting, low-voltage fuse
  • Voltage Rating: 600V AC
  • Current Rating: 100A
  • Dimensions: 7.88 in L x 1.11 in H x 1.11 in W
  • Standards: CE, CSA Certification Class 1422-01, UL 248-12 Guide JDDZ
  • Applications: Branch circuit and feeder protection in industrial panels, MCCs, and power distribution
  • Class Rating: RK5
  • AIC rating: 200kA @ 600V
  • Barrels: 1
  • Diameter: 1.11 in
  • Weight: 0.4 lb


Product Identification
  • UPC: 051712508438
  • GTIN: 00051712508438
