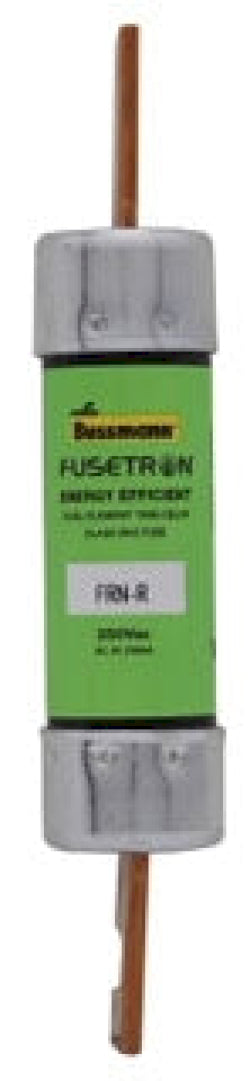

Bussmann FRN-R-80 - RK5 Class Fuse 80A 250V (200kA AIC)

Bussmann
Price
Save $524.80
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Bussmann FRN-R-80 is a low-voltage current-limiting fuse designed for providing reliable overcurrent protection in industrial power distribution and motor branch circuits. It features a 250V AC voltage rating and a 80A current rating, engineered to safely interrupt faults up to 200kA. The fuse is constructed as a single-barrel, RK5 class device with a 1.06-inch diameter and a length of 5.88 inches, contributing to its current-limiting performance. It complies with key industry standards including UL 248-12 and CSA Certification Class 1422-01, ensuring suitability for demanding applications such as protecting feeders, mains, and motor circuits where high interrupting capacity and time-delay characteristics are required.

Key Features & Specifications
  • Type: Fusetron FRN-R, time-delay, current-limiting, low-voltage fuse
  • Voltage Rating: 250V AC
  • Current Rating: 80A
  • Dimensions: 5.88 in L x 1 in H x 1 in W
  • Standards: CE, CSA Certification Class 1422-01, UL 248-12 Guide JDDZ
  • Applications: Industrial power distribution, motor branch circuit protection
  • Class Rating: RK5
  • AIC rating: 200kA @ 250V
  • Barrels: 1
  • Diameter: 1.06 in
  • Weight: 0.3 lb


Product Identification
  • UPC: 051712507417
  • GTIN: 00051712507417
