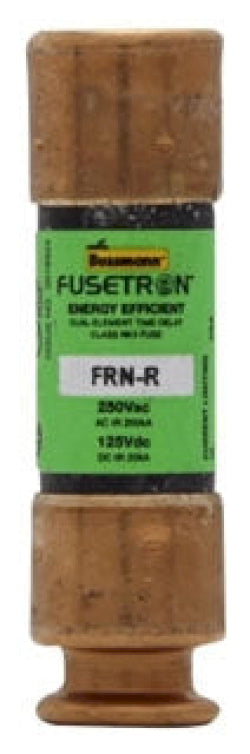

Eaton Bussmann FRN-R-8/10 - RK5 Time-Delay Fuse 8A 250V (200kA AIC Rating)

Eaton Bussmann FRN-R-8/10 is a time-delay, current-limiting fuse designed for branch circuit and feeder protection in industrial electrical systems. It features a 250V AC voltage rating with an 8A current rating, providing reliable overload and short-circuit protection. The fuse construction includes a single-barrel design with 0.56-inch diameter and 2-inch length, weighing 1 lb, utilizing RK5 class rating for enhanced performance. This component meets CE, CSA Certification Class 1422-01, and UL 248-12 Guide JDDZ standards, ensuring compliance with industry safety requirements. Typical applications include motor circuits, transformers, and power distribution equipment where 200kA interrupting rating at 250V is necessary for system protection.

Key Features & Specifications

• Type: Time-delay, current-limiting low voltage fuse, single barrel construction
• Voltage Rating: 250V AC
• Current Rating: 8A
• Dimensions: 2-inch length, 0.56-inch diameter
• Standards: CE, CSA Certification Class 1422-01, UL 248-12 Guide JDDZ
• Applications: Motor circuits, transformers, power distribution systems
• AIC rating: 200kA@250V
• Class Rating: RK5
• Barrels: 1
• Weight: 1 lb
• Family: Fusetron
• Country of Origin: Mexico

Product Identification

• UPC: 051712507073
• GTIN: 00051712507073
