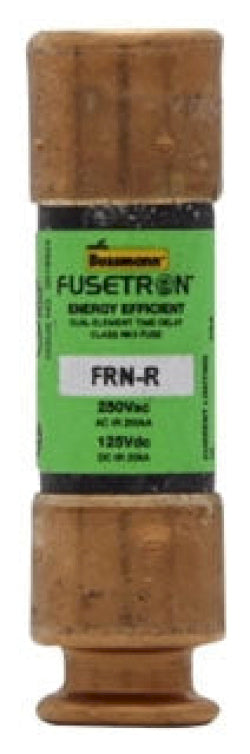

Eaton Bussmann FRN-R-7-1/2 - Fusetron Time-Delay Fuse 7A 250V (RK5 Class, 200kA AIC)

Eaton Bussmann FRN-R-7-1/2 is a time-delay, current-limiting fuse from the Fusetron family designed for branch circuit and feeder protection in industrial electrical systems. It features a 7A current rating and 250V voltage rating with a high 200kA interrupting capacity at 250V for reliable short-circuit protection. The fuse construction includes a single-barrel design with 0.56-inch diameter and 2-inch length, weighing 1 lb, utilizing RK5 class rating for dual-element time-delay characteristics. It complies with UL 248-12 Guide JDDZ and CSA Certification Class 1422-01 standards with CE marking, ensuring proper protection of motors, transformers, and lighting circuits against overloads and short circuits in commercial and industrial applications.

Key Features & Specifications

• Type: Time-delay, current-limiting fuse, dual-element construction, single barrel design
• Voltage Rating: 250V AC
• Current Rating: 7A
• Dimensions: 2-inch length, 0.56-inch diameter
• Standards: UL 248-12 Guide JDDZ, CSA Certification Class 1422-01, CE
• Applications: Motor protection, transformer protection, lighting circuit protection, industrial feeder circuits
• AIC rating: 200kA@250V
• Class Rating: RK5
• Barrels: 1
• Weight: 1 lb
• Certification: CE, CSA Certification Class 1422-01, UL 248-12 Guide JDDZ
• Family: Fusetron
• Country of Origin: Mexico

Product Identification

• UPC: 051712506977
• GTIN: 00051712506977
