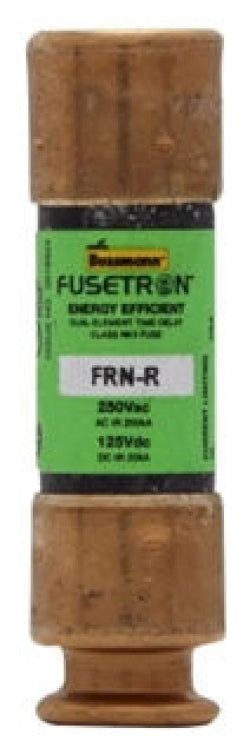

Bussmann FRN-R-2 - Class RK5 Time-Delay Fuse 2A 250V (200kA AIC Rating)

The Bussmann FRN-R-2 is a Class RK5 time-delay fuse designed for comprehensive circuit protection in industrial applications, providing reliable overload and short-circuit interruption. It features a 250V AC voltage rating with a 2A current rating and offers a high 200kA interrupting capacity at rated voltage. The fuse construction includes a single-barrel design with 0.56-inch diameter and 2-inch length, weighing 1 lb for robust physical characteristics. This Fusetron series fuse meets CE, CSA Certification Class 1422-01, and UL 248-12 Guide JDDZ standards for safety and performance compliance. Typical applications include motor branch circuits, transformers, and feeder circuits where time-delay characteristics prevent nuisance tripping during temporary overload conditions.

Key Features & Specifications

• Type: Class RK5 time-delay fuse, single-barrel construction
• Voltage Rating: 250V AC
• Current Rating: 2A
• Dimensions: 2-inch length, 0.56-inch diameter
• Standards: CE, CSA Certification Class 1422-01, UL 248-12 Guide JDDZ
• Applications: Motor branch circuits, transformers, feeder circuits
• AIC rating: 200kA@250V
• Class Rating: RK5
• Barrels: 1
• Weight: 1 lb
• Family: Fusetron
• Country of Origin: Mexico

Product Identification

• UPC: 051712507141
• GTIN: 00051712507141
