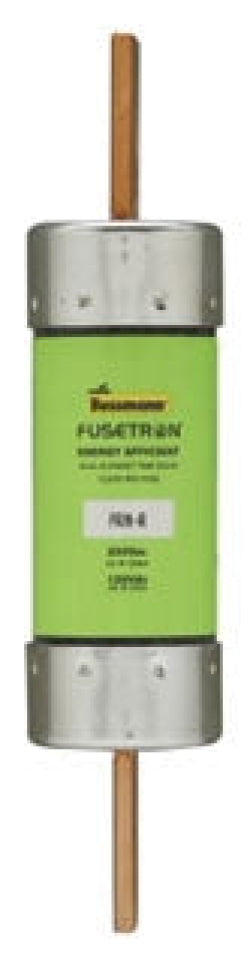

Bussmann FRN-R-110 - Fusetron Time-Delay Fuse 110A (20kA AIC @125V DC)

Bussmann FRN-R-110 is a Fusetron time-delay fuse designed for circuit protection in low-voltage applications. It features a 110A current rating and 125V voltage rating with a 20kA interrupting capacity at 125V DC, housed in a 7-1/8-inch cylindrical body with a 1.56-inch diameter and RK5 class rating. Constructed with durable materials, this Mexico-manufactured fuse meets CE, CSA (Class 1422-01), and UL 248-12 (Guide JDDZ) standards for industrial safety. Typical applications include motor branch circuits, transformers, and other equipment requiring time-delay protection against overloads and short circuits.

Key Features & Specifications

• Type: FRN-R time-delay fuse, single barrel construction
• Voltage Rating: 125V AC/DC
• Current Rating: 110A
• Dimensions: 7-1/8 in length, 1.56 in diameter
• Weight: 1 lb
• Class Rating: RK5
• AIC Rating: 20kA @125V DC
• Certification: CE, CSA Class 1422-01, UL 248-12 (JDDZ)
• Applications: Motor circuits, transformers, industrial equipment

Product Identification

• UPC: 051712507448
• GTIN: 00051712507448
