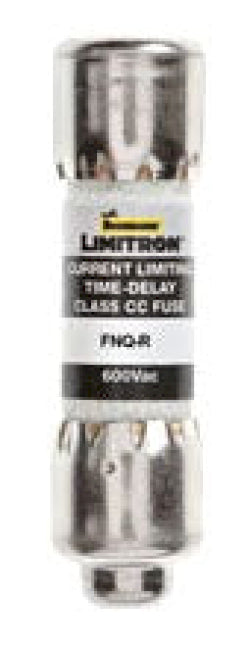

Bussmann FNQ-R-9 - Class CC Fuse 9A 600V (200kA AIC Rating)

The Bussmann FNQ-R-9 is a Class CC low-voltage current-limiting fuse designed for branch circuit protection in industrial electrical systems. It features a 9A current rating and 600V AC voltage rating with a high 200kA interrupting capacity at 600V for reliable short-circuit protection. The fuse construction includes a single-barrel design with 0.41-inch diameter and 1-1/2-inch length, weighing 1 lb for compact panel mounting. It complies with UL 248-4, CSA Class 1422-01, and CE standards for safety and performance verification. Typical applications include motor control centers, industrial control panels, and power distribution equipment requiring precise overcurrent protection.

Key Features & Specifications

• Type: Class CC current-limiting fuse, single-barrel construction
• Voltage Rating: 600V AC
• Current Rating: 9A
• Dimensions: 1-1/2 inch length, 0.41 inch diameter
• Standards: UL 248-4, CSA Class 1422-01, CE certified
• Applications: Industrial control panels, motor control centers, power distribution systems
• AIC rating: 200kA@600V
• Class Rating: CC
• Barrels: 1
• Weight: 1 lb
• Family: CC-Tron
• Certification: CE/UL-248-4 Guide JDDZ/CSA Class 1422-01

Product Identification

• UPC: 051712497084
• GTIN: 00051712497084
