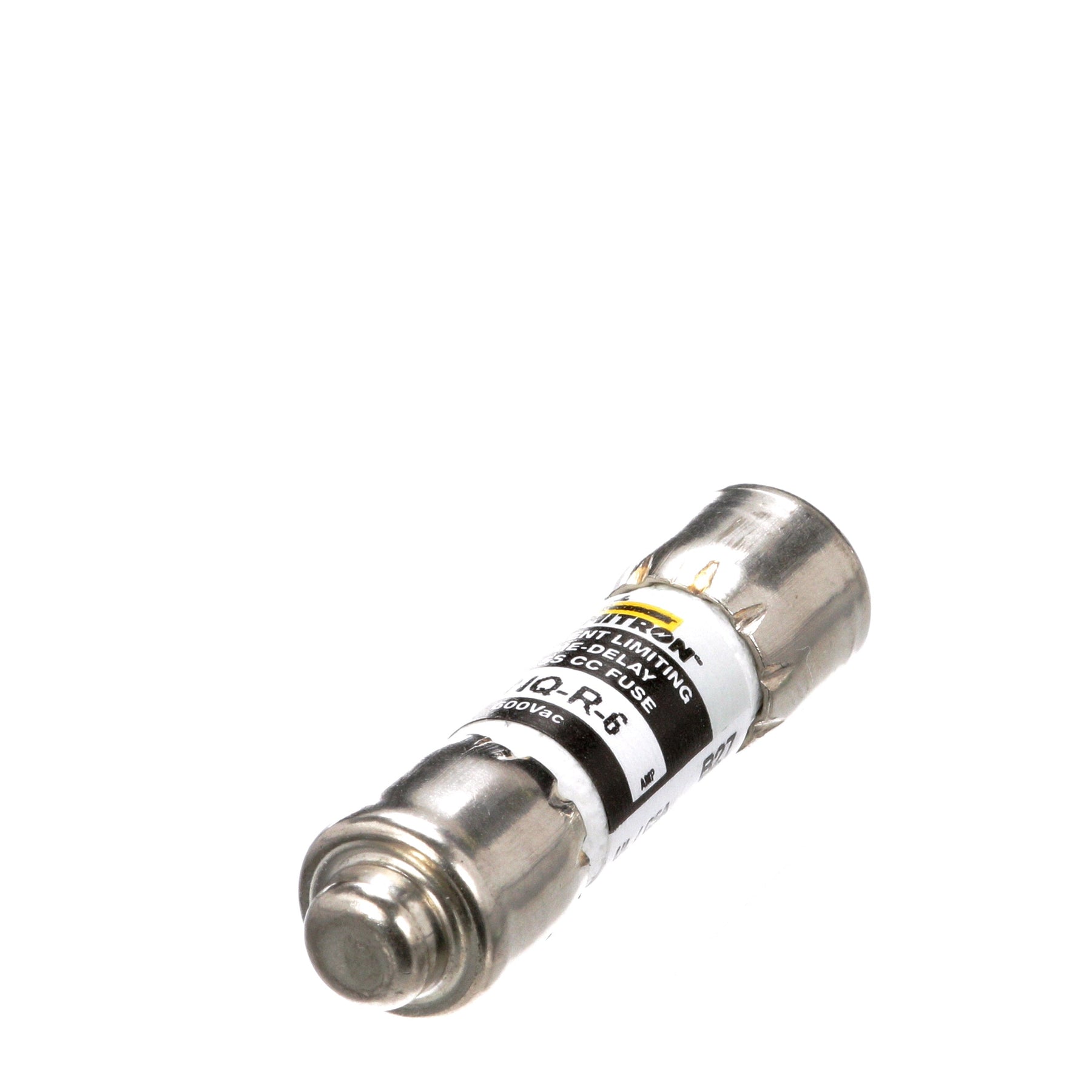

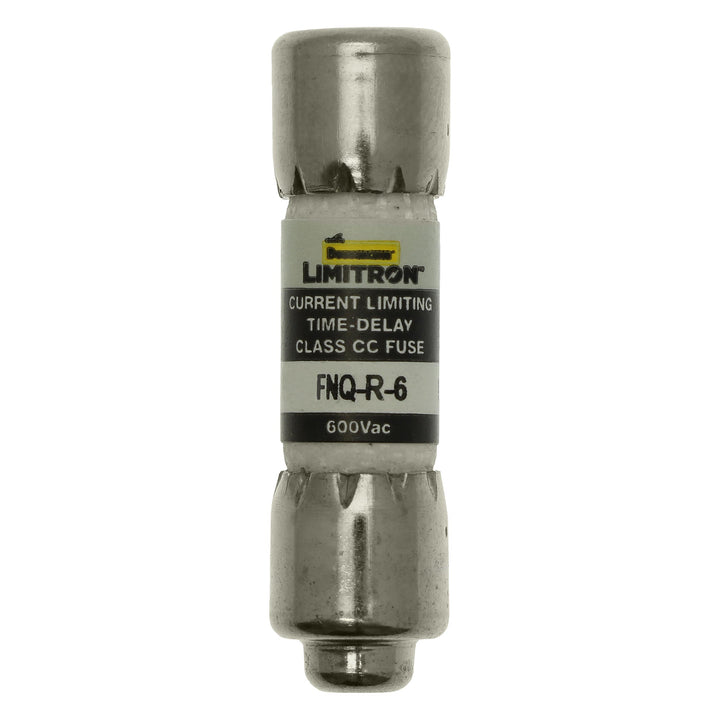

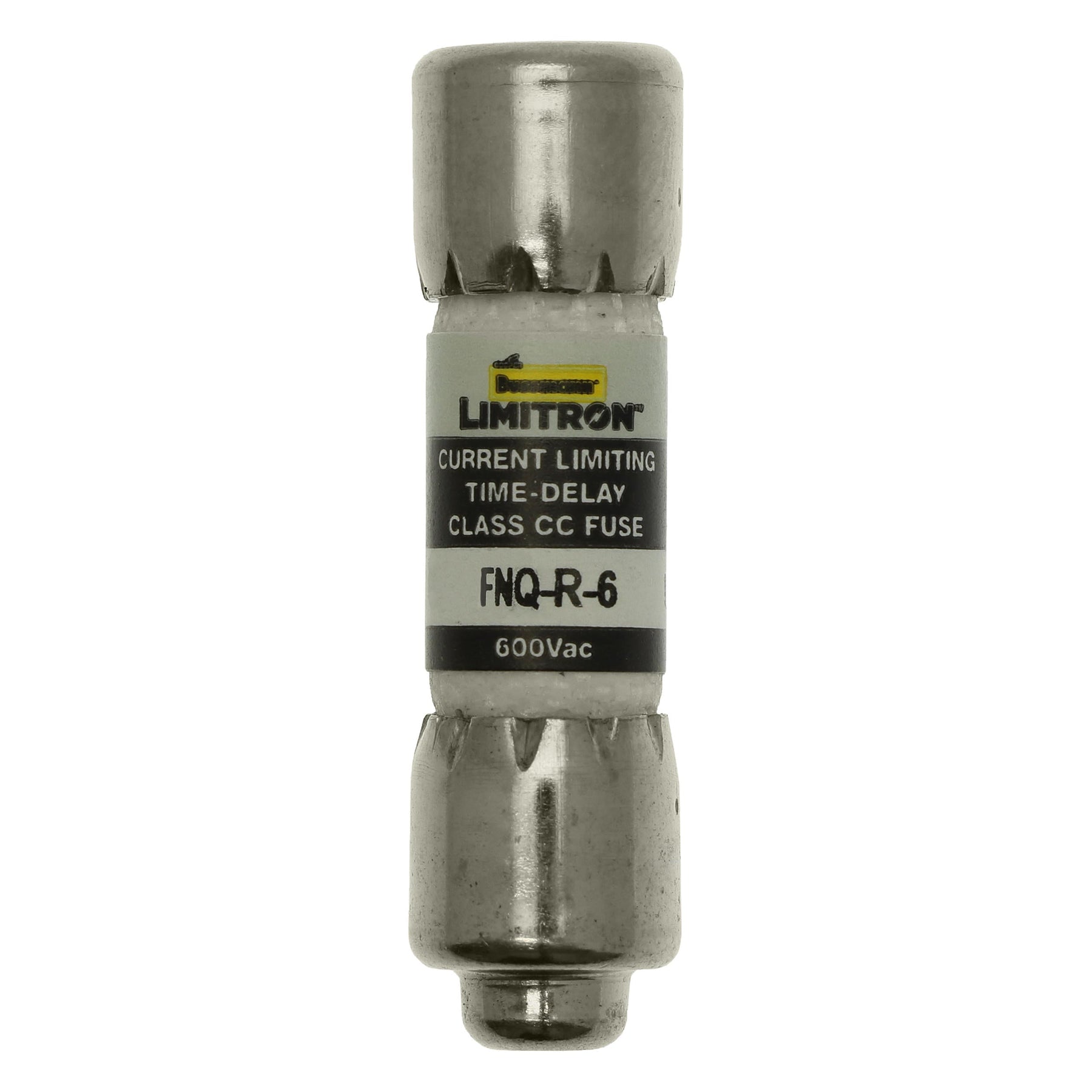

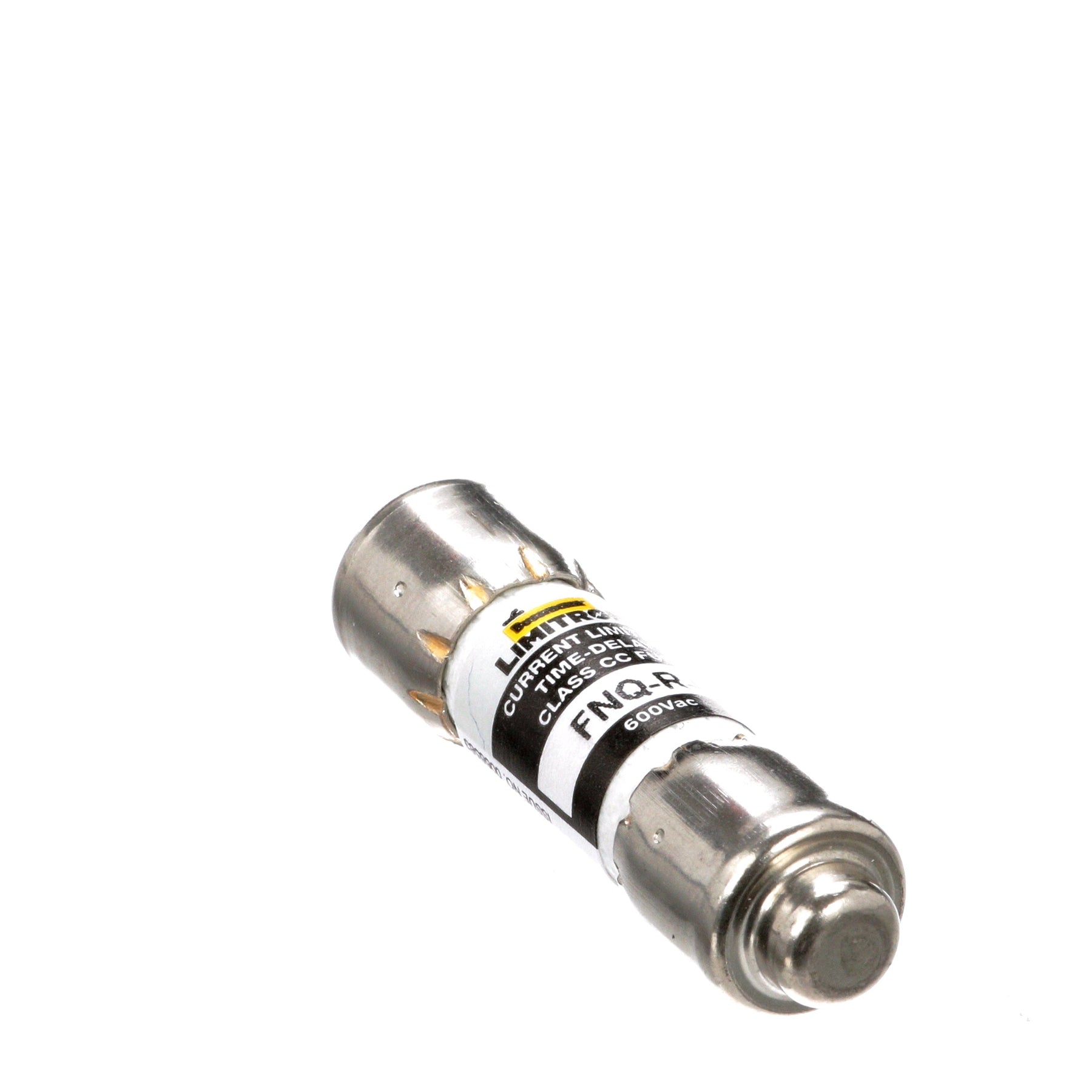

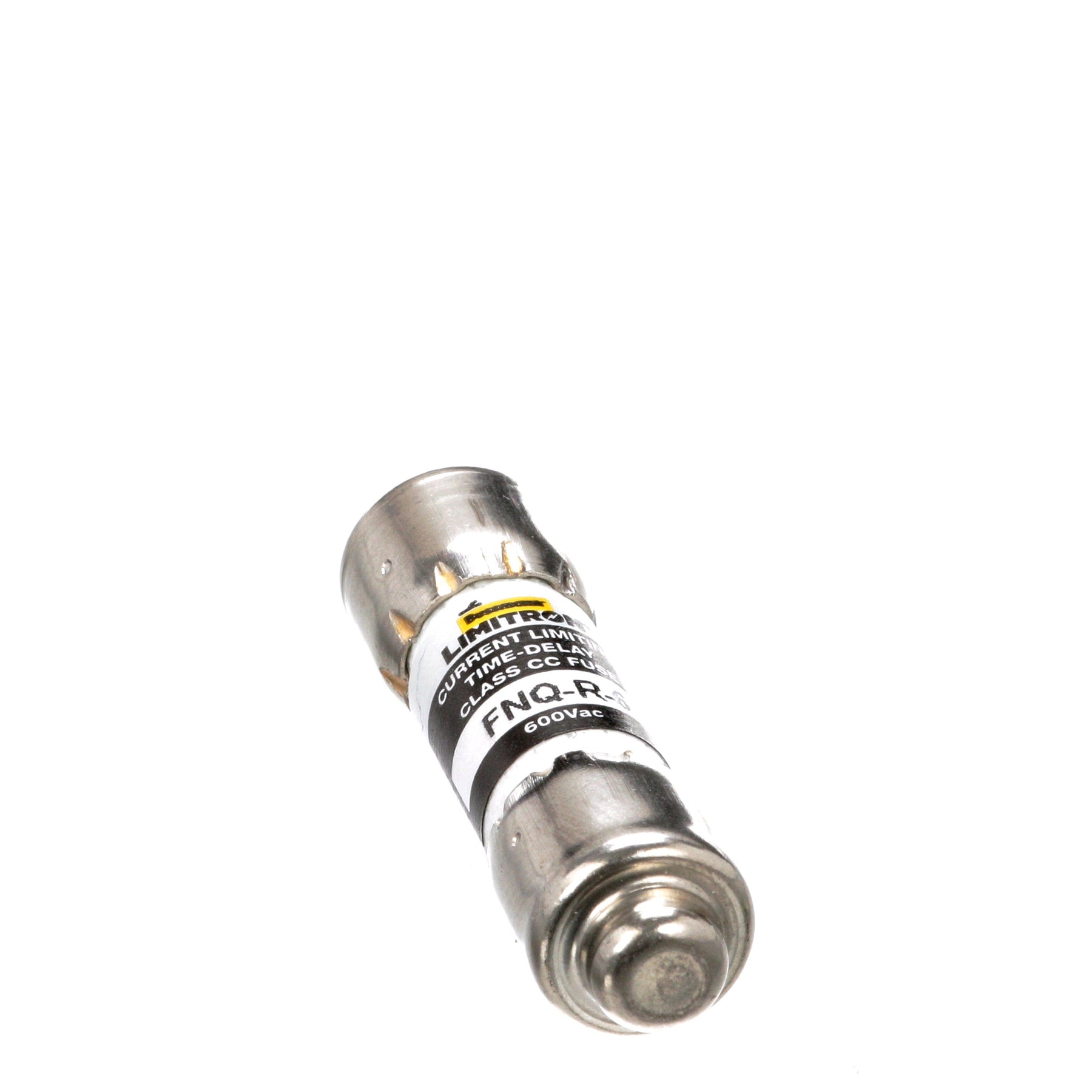

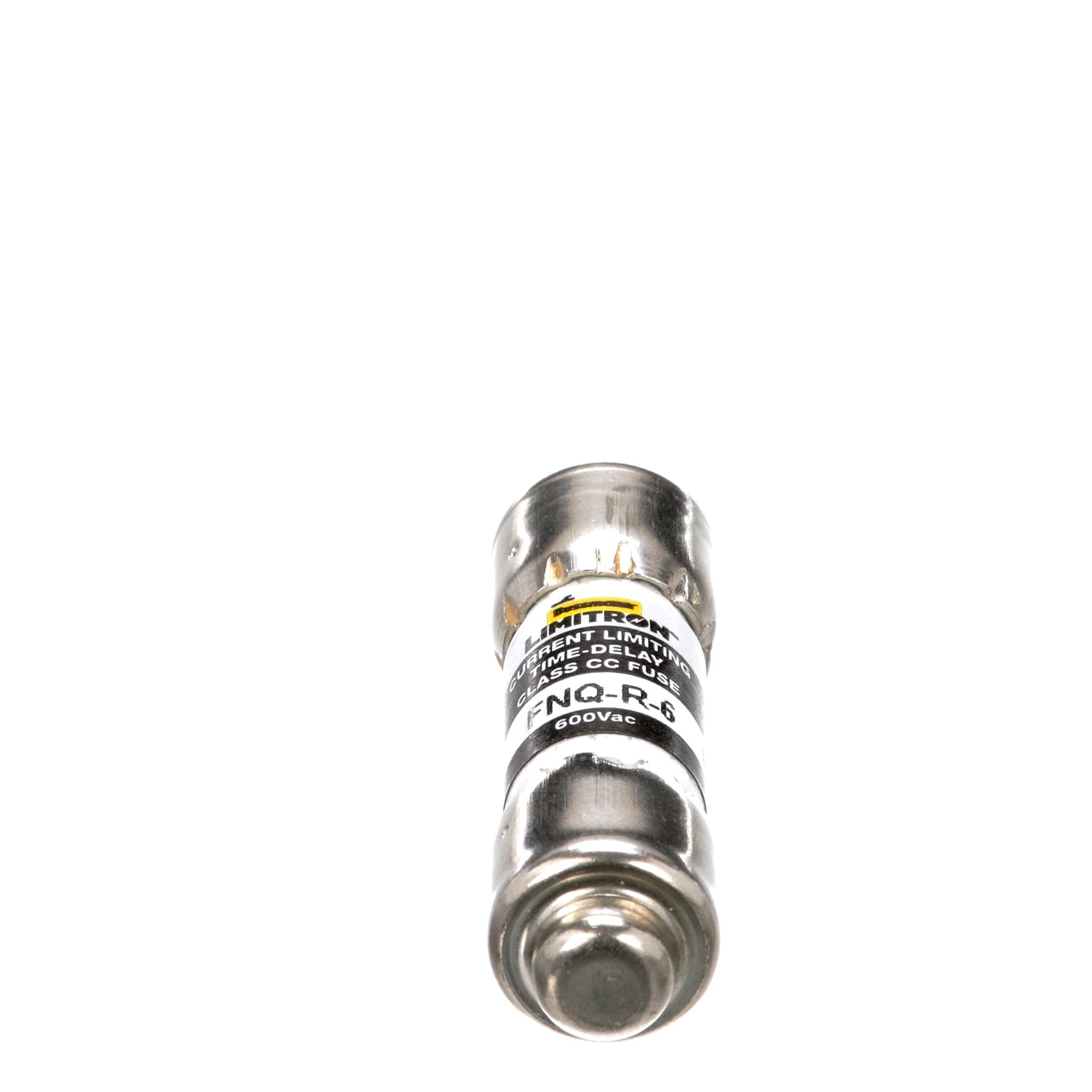

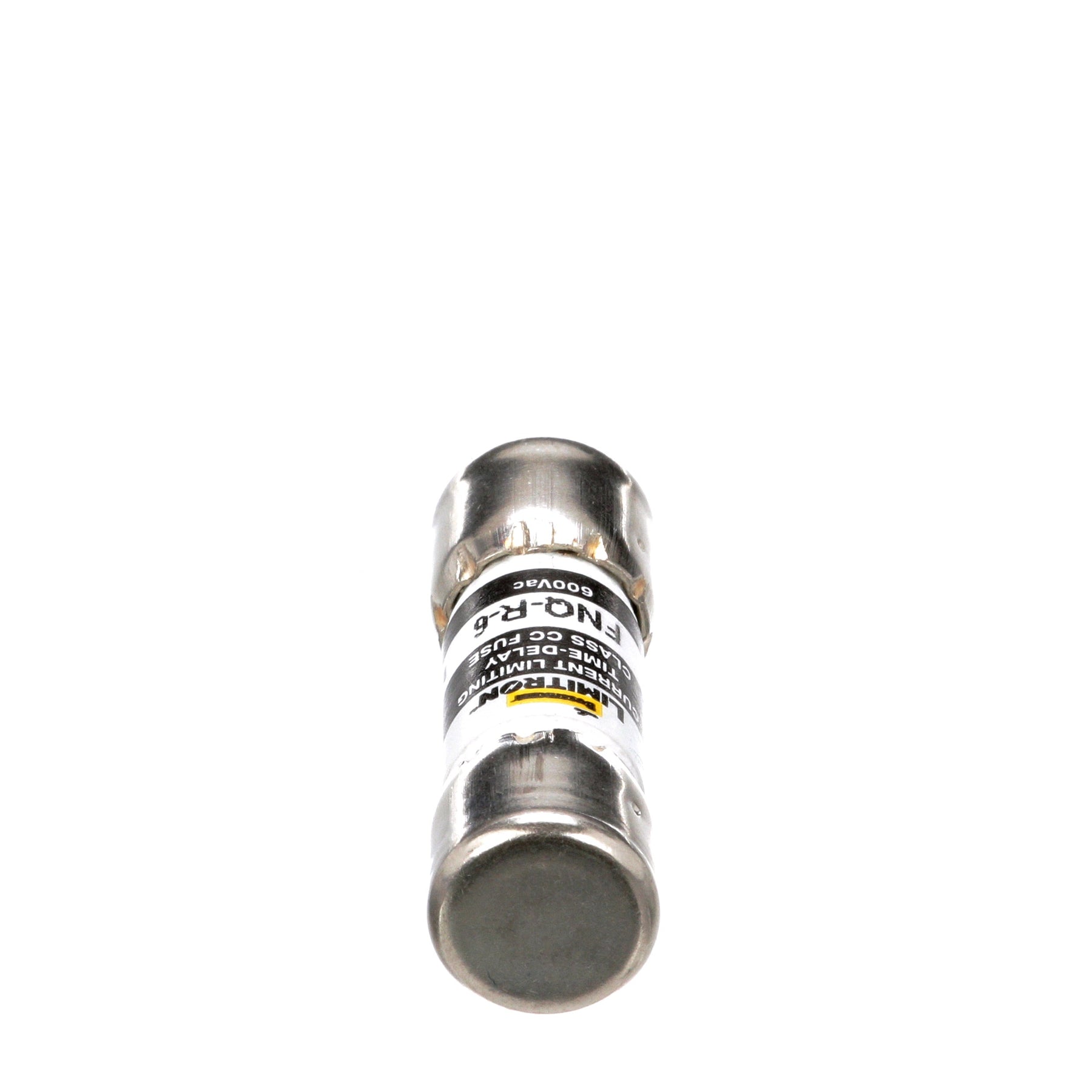

Bussmann FNQ-R-6 - Class CC Fuse 6A 600V (200kA AIC Rating)

The Bussmann FNQ-R-6 is a Class CC low-voltage fuse designed to provide reliable circuit protection in industrial applications. It features a 6A current rating and 600V voltage rating with a high 200kA interrupting capacity at rated voltage. The fuse construction utilizes a single-barrel design measuring 1-1/2 inches in length with a 0.41-inch diameter and weighs 1 lb. This component meets CE, UL-248-4 Guide JDDZ, and CSA Class 1422-01 standards for safety and performance compliance. Typical applications include protection of control circuits, transformers, and motor circuits in industrial power distribution systems.

Key Features & Specifications

• Type: Class CC low-voltage fuse, single-barrel construction
• Voltage Rating: 600V AC
• Current Rating: 6A
• Dimensions: 1-1/2 inch length, 0.41 inch diameter
• Standards: CE/UL-248-4 Guide JDDZ/CSA Class 1422-01
• Applications: Control circuits, transformers, motor circuit protection
• AIC rating: 200kA@600V
• Class Rating: CC
• Barrels: 1
• Weight: 1 lb
• Family: CC-Tron
• Country of Origin: Mexico

Product Identification

• UPC: 051712497008
• GTIN: 00051712497008
