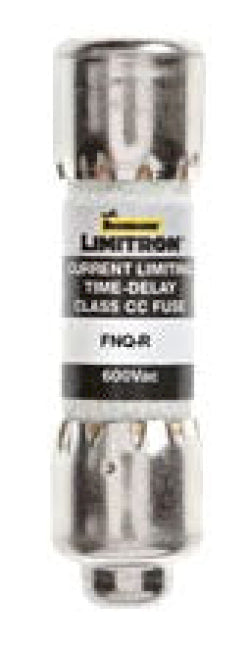

Bussmann FNQ-R-2-1/4 - Class CC Fuse 2A 600V (200kA AIC)

The Bussmann FNQ-R-2-1/4 is a Class CC low-voltage current-limiting fuse designed to provide reliable circuit protection in industrial electrical systems. It features a 2A current rating and 600V voltage rating with an impressive 200kA interrupting capacity at rated voltage. The fuse construction includes a single-barrel design with 0.41-inch diameter and 1-1/2-inch length, weighing 1 lb for robust performance. Certified to UL-248-4 and CSA Class 1422-01 standards, this fuse meets rigorous safety requirements for industrial applications. Typical uses include protection of control circuits, transformers, and motor circuits where high interrupting capacity and current limitation are essential.

Key Features & Specifications

• Type: Class CC current-limiting fuse, single-barrel construction
• Voltage Rating: 600V AC
• Current Rating: 2A
• Dimensions: 1-1/2 inch length, 0.41 inch diameter
• Standards: UL-248-4, CSA Class 1422-01, CE certified
• Applications: Industrial control circuits, transformer protection, motor circuits
• AIC rating: 200kA @ 600V
• Class Rating: CC
• Barrels: 1
• Weight: 1 lb
• Family: CC-Tron
• Country of Origin: Mexico

Product Identification

• UPC: 051712496971
• GTIN: 00051712496971
