Bussmann FNQ-R-10 - Class CC Fuse 10A 600V (200kA AIC)

Bussmann
Price
Save $77.23
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

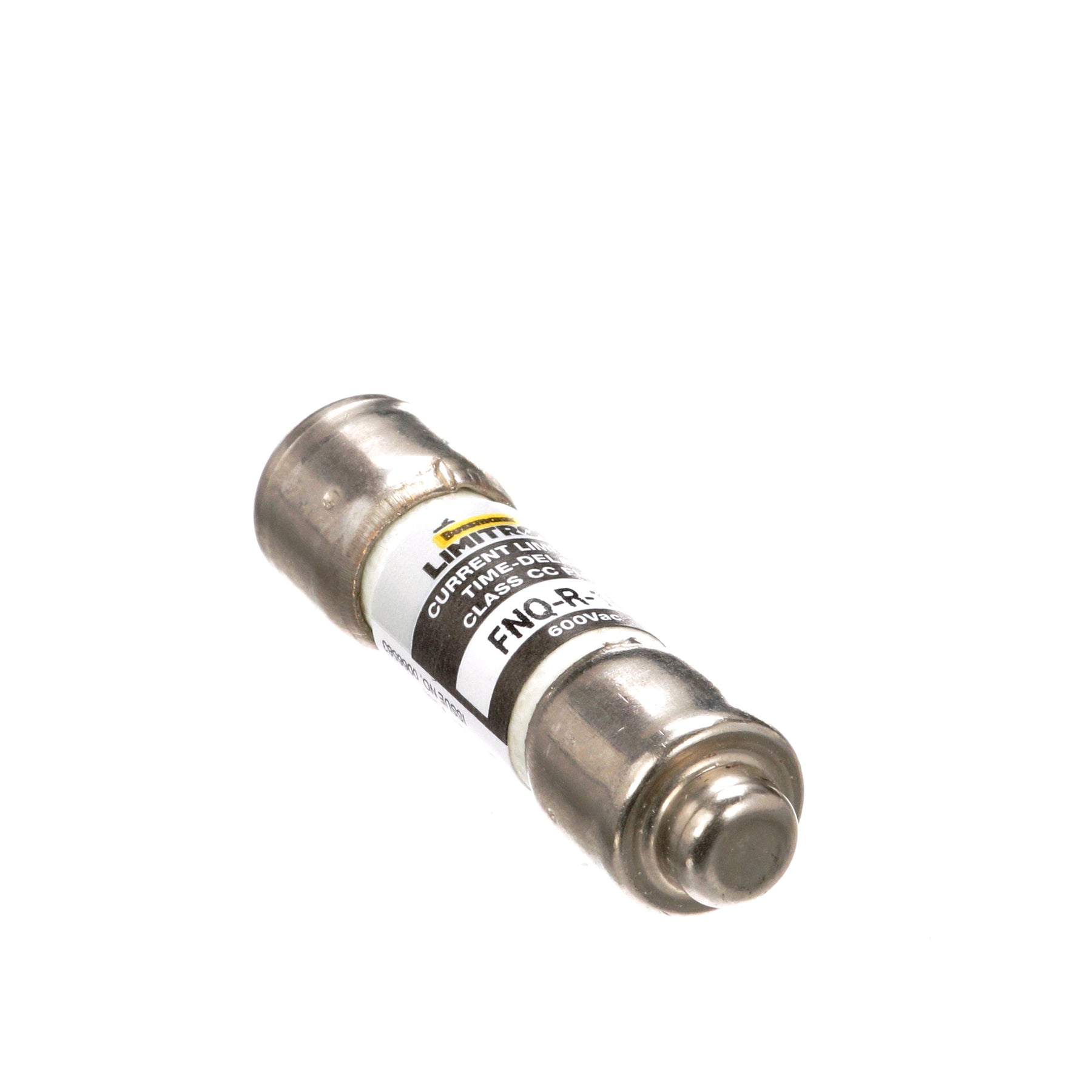

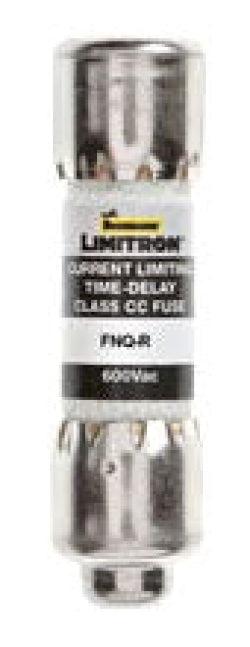

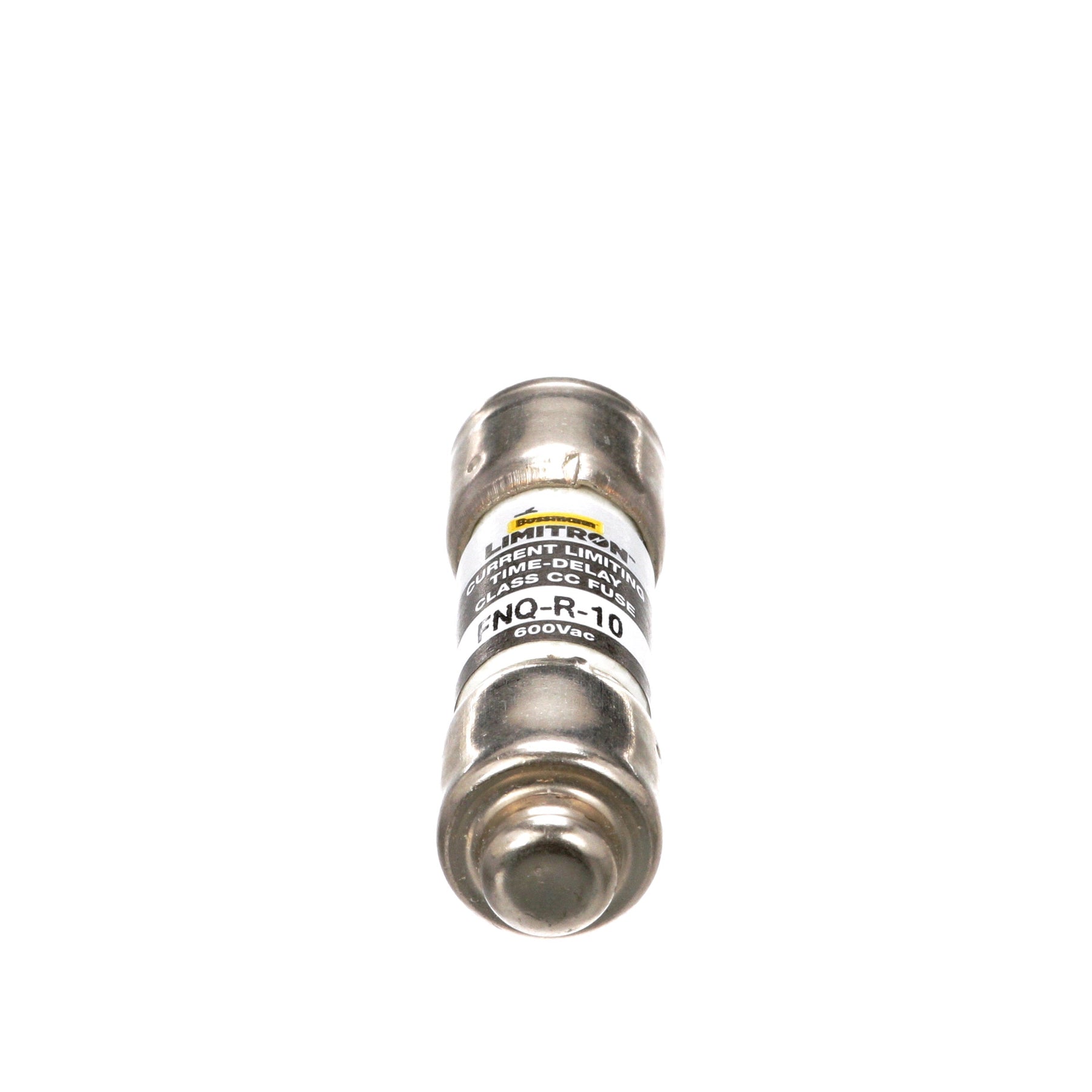

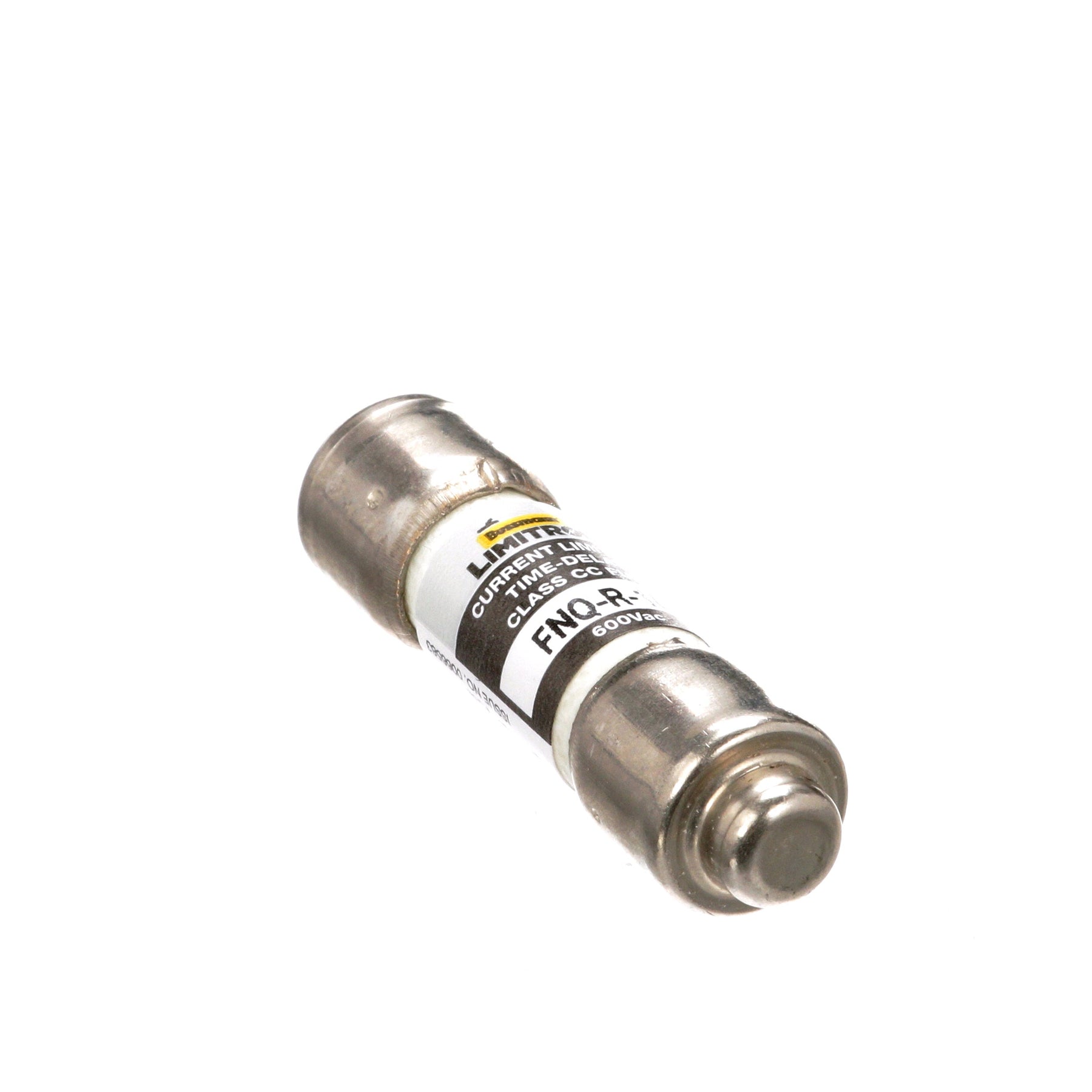

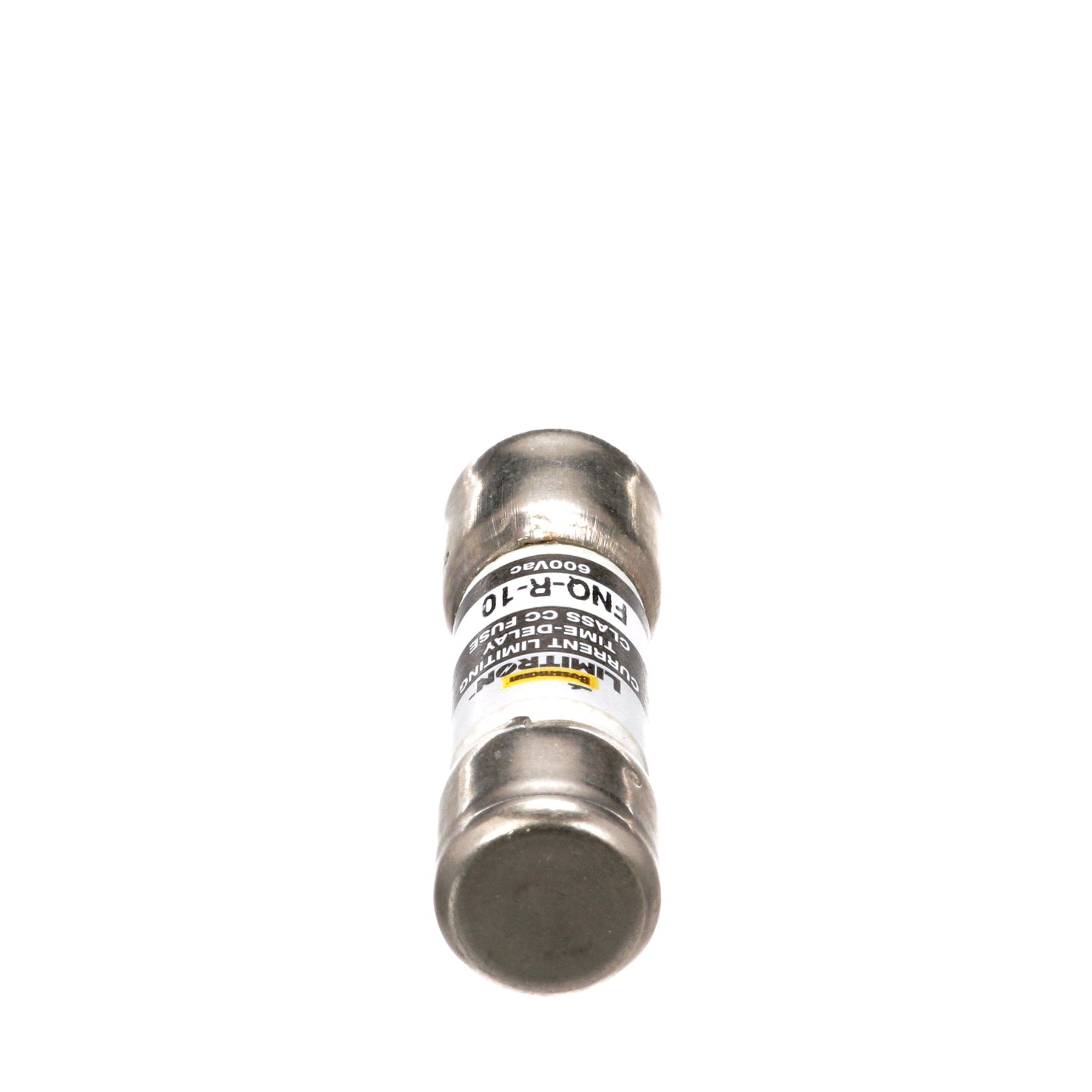

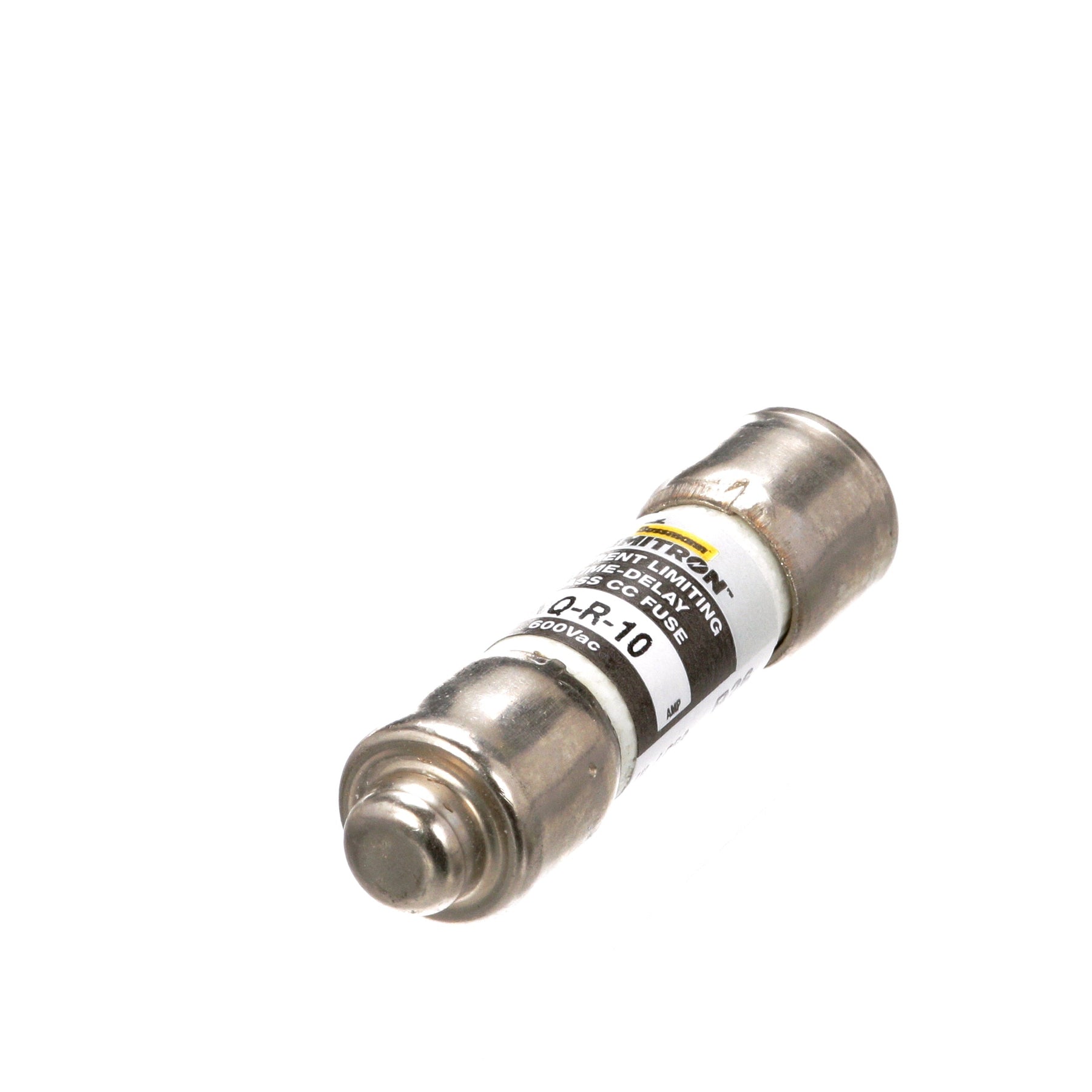

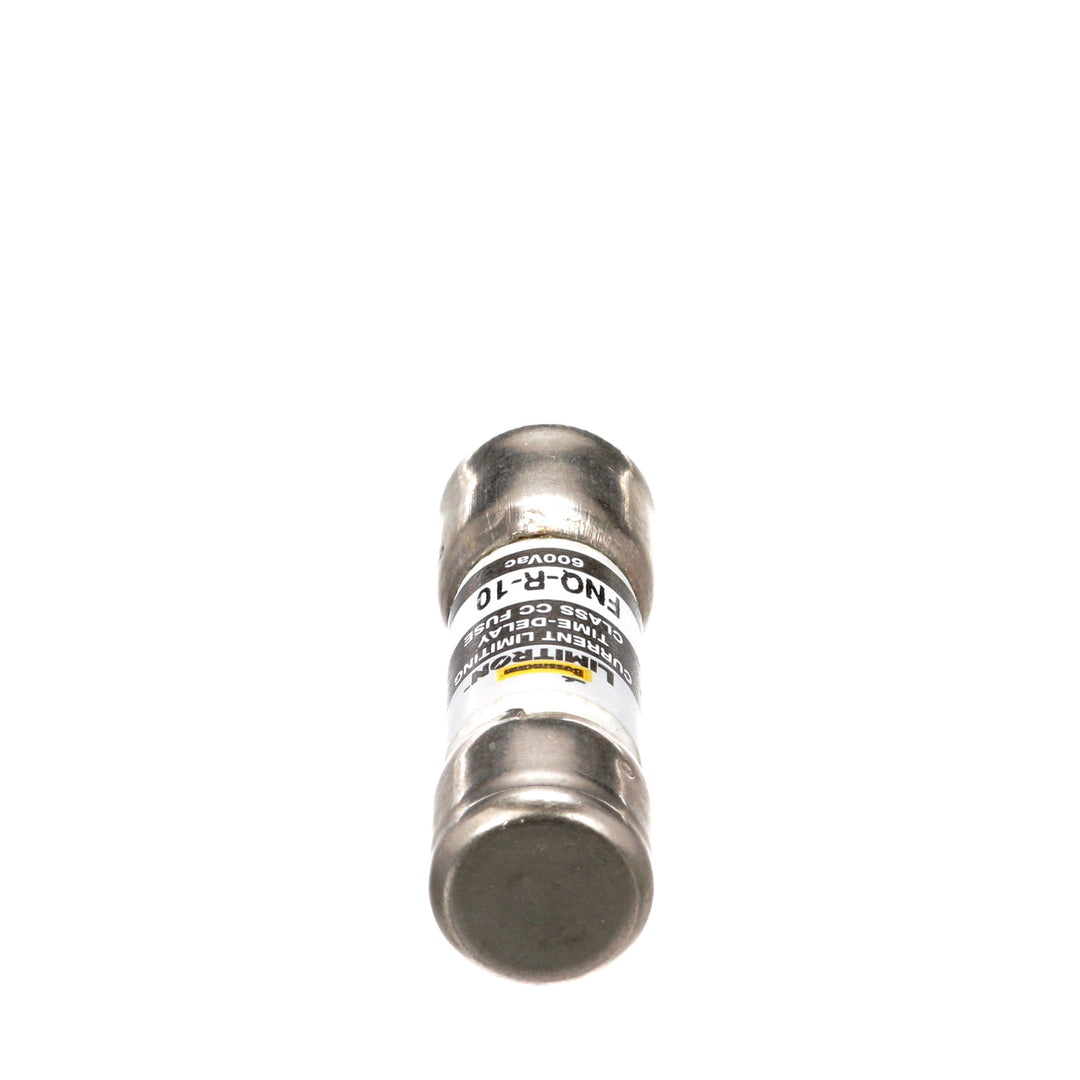

Bussmann FNQ-R-10 is a low-voltage, current-limiting fuse designed for protecting control circuits, transformers, and motor loads in industrial applications. It features a 10A current rating and a 600V AC voltage rating, with a high 200kA interrupting capacity at rated voltage for reliable short-circuit protection. The fuse is constructed as a single-barrel, 1.5-inch long device with a 0.41-inch diameter, conforming to the compact Class CC physical standard. It is certified to UL 248-4 and CSA Class 1422-01 standards, ensuring compliance for use in panelboards, industrial controls, and HVAC equipment where precise overcurrent protection is required.

Key Features & Specifications
  • Type: FNQ-R, CC-Tron family, single-barrel, current-limiting low-voltage fuse
  • Voltage Rating: 600V AC
  • Current Rating: 10A
  • Dimensions: 1.5 in L x 0.41 in H x 0.41 in W (38.1 mm x 10.4 mm x 10.4 mm)
  • Standards: CE, UL-248-4 Guide JDDZ, CSA Class 1422-01
  • Applications: Protection of control circuits, transformers, solenoids, and small motor loads
  • AIC rating: 200kA @ 600V
  • Class Rating: CC
  • Diameter: 0.41 in (10.4 mm)
  • Barrels: 1
  • Weight: 0.015 lb (0.0068 kg)
  • Country of Origin: Mexico


Product Identification
  • UPC: 051712497091
  • GTIN: 00051712497091
