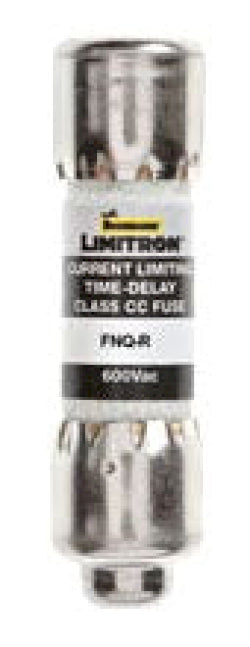

Bussmann FNQ-R-1-4/10 - Class CC Fuse 1A 600V (200kA AIC Rating)

The Bussmann FNQ-R-1-4/10 is a Class CC low-voltage fuse designed for circuit protection in industrial control systems. It features a 600V AC voltage rating with a 1A current rating and 200kA interrupting capacity at 600V for reliable short-circuit protection. The fuse construction includes a single barrel design measuring 1-1/2 inches in length with a 0.41-inch diameter and weighs 1 lb. It complies with UL 248-4, CSA Class 1422-01, and CE standards for safety and performance. Typical applications include protection of control circuits, transformers, and motor controllers in industrial environments.

Key Features & Specifications

• Type: Class CC low-voltage fuse, single barrel construction
• Voltage Rating: 600V AC
• Current Rating: 1A
• Dimensions: 1-1/2 inch length, 0.41 inch diameter
• Standards: UL 248-4, CSA Class 1422-01, CE certified
• Applications: Industrial control circuits, transformers, motor protection
• AIC rating: 200kA@600V
• Class Rating: CC
• Barrels: 1
• Weight: 1 lb
• Family: CC-Tron
• Country of Origin: Mexico

Product Identification

• UPC: 051712496957
• GTIN: 00051712496957
