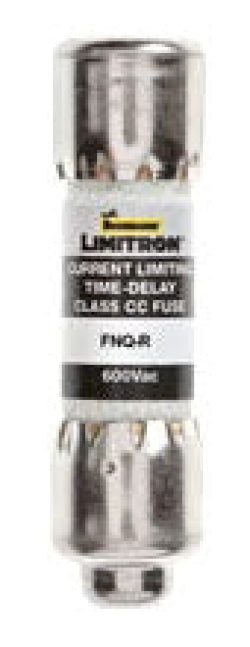

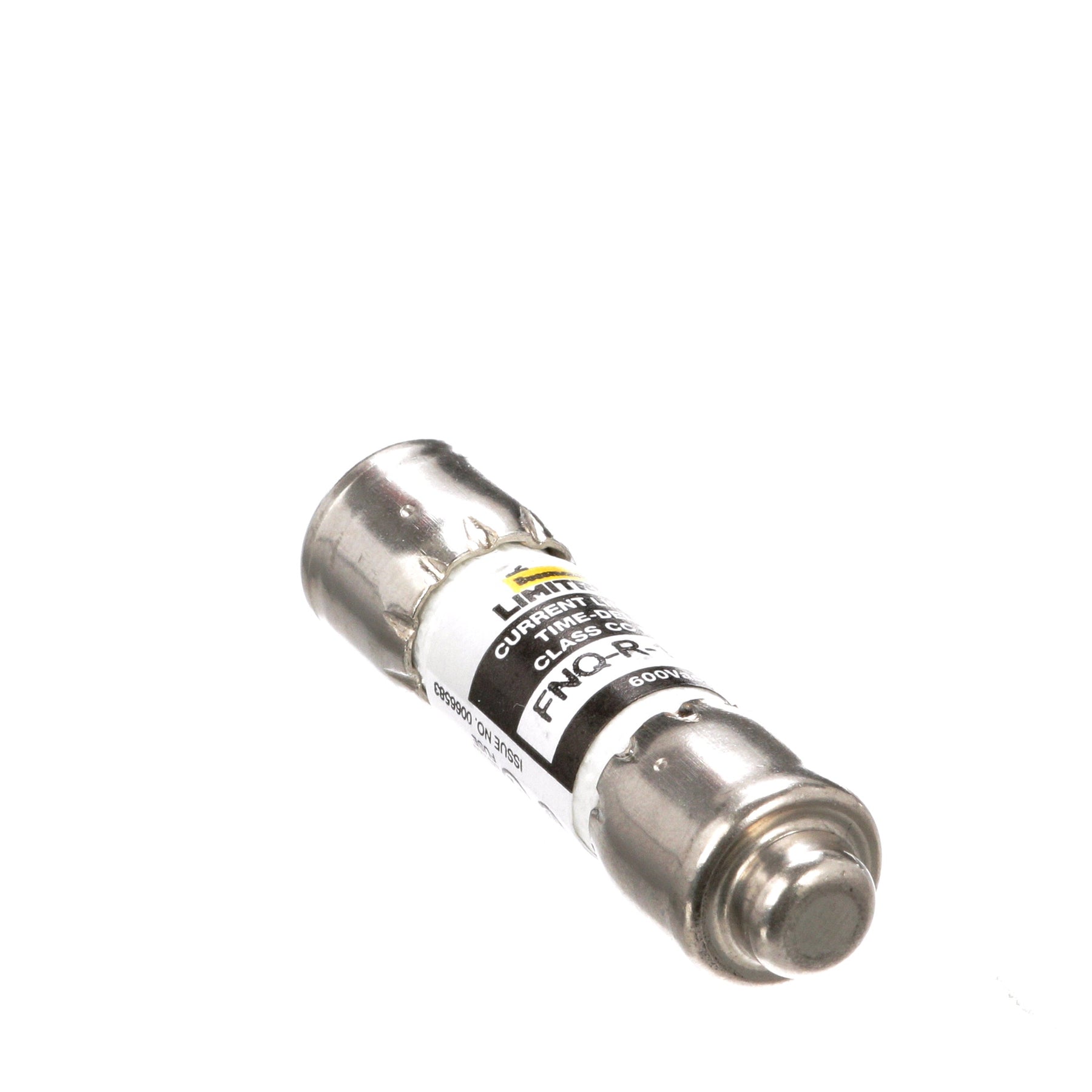

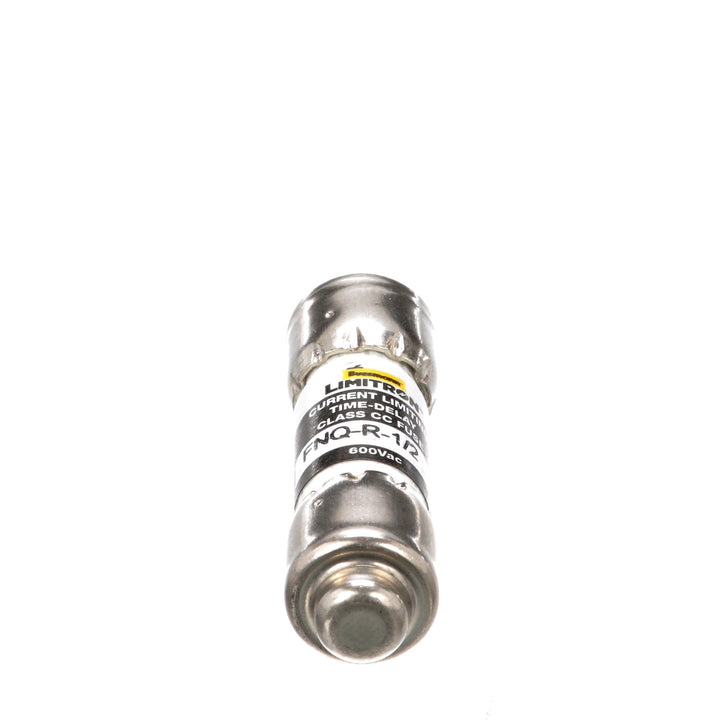

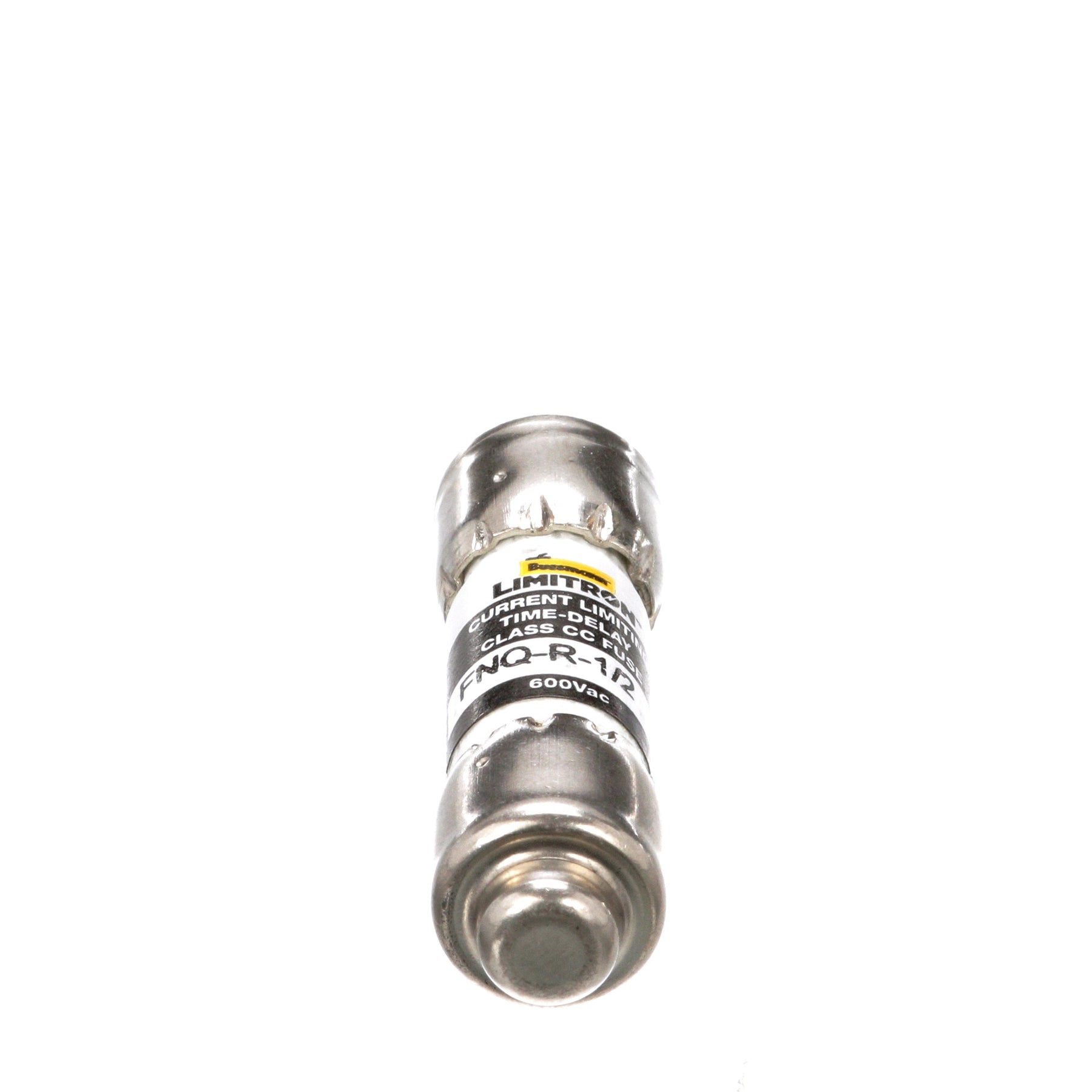

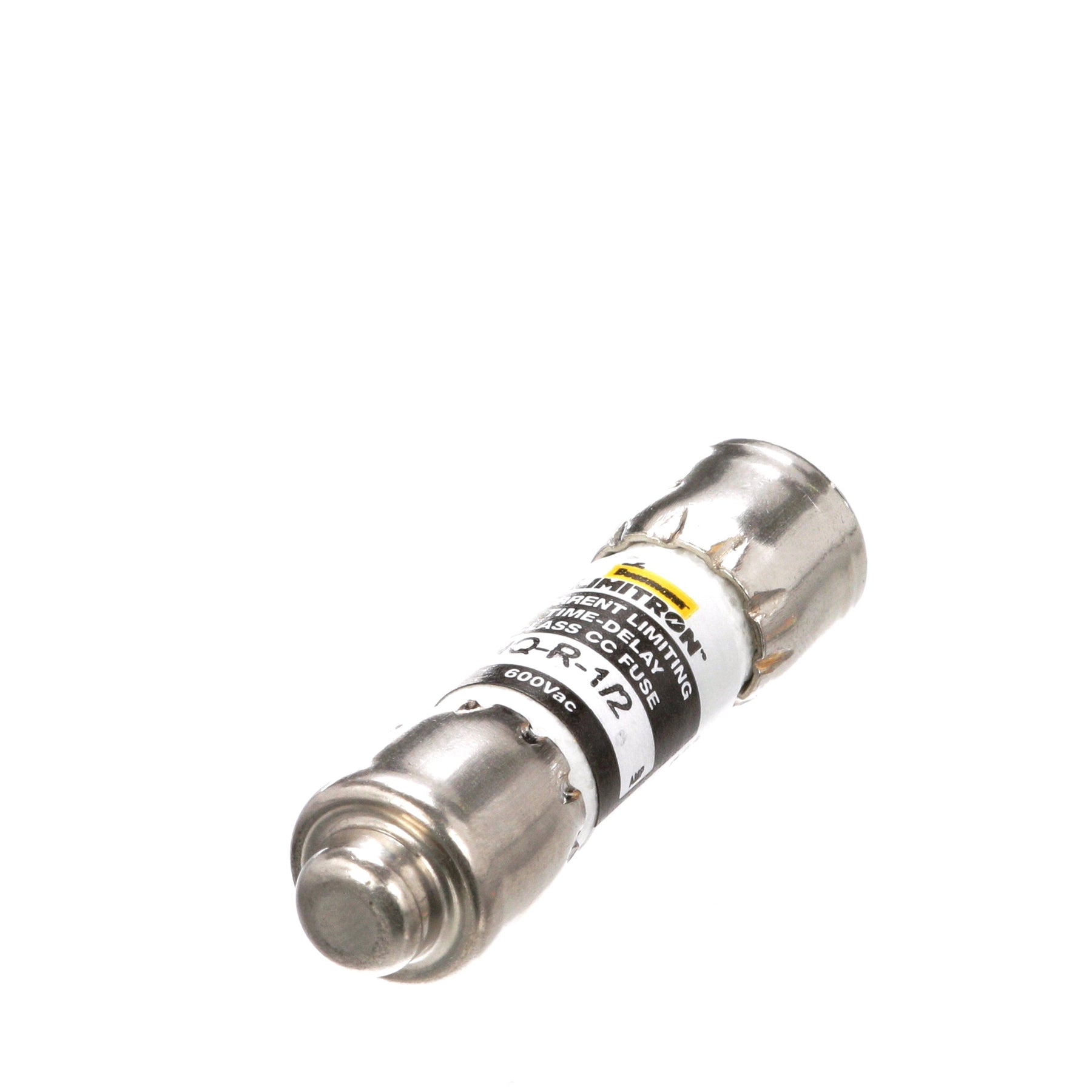

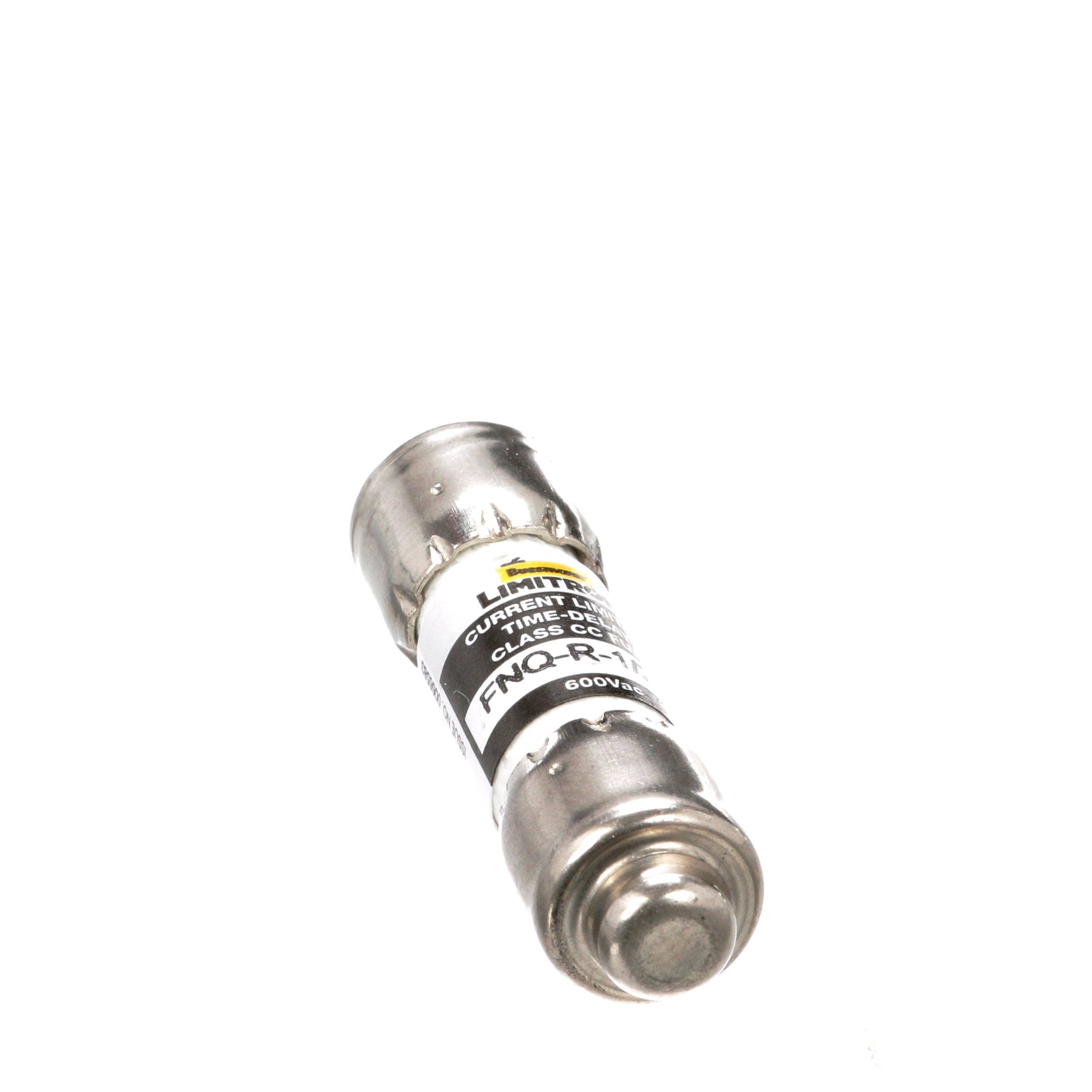

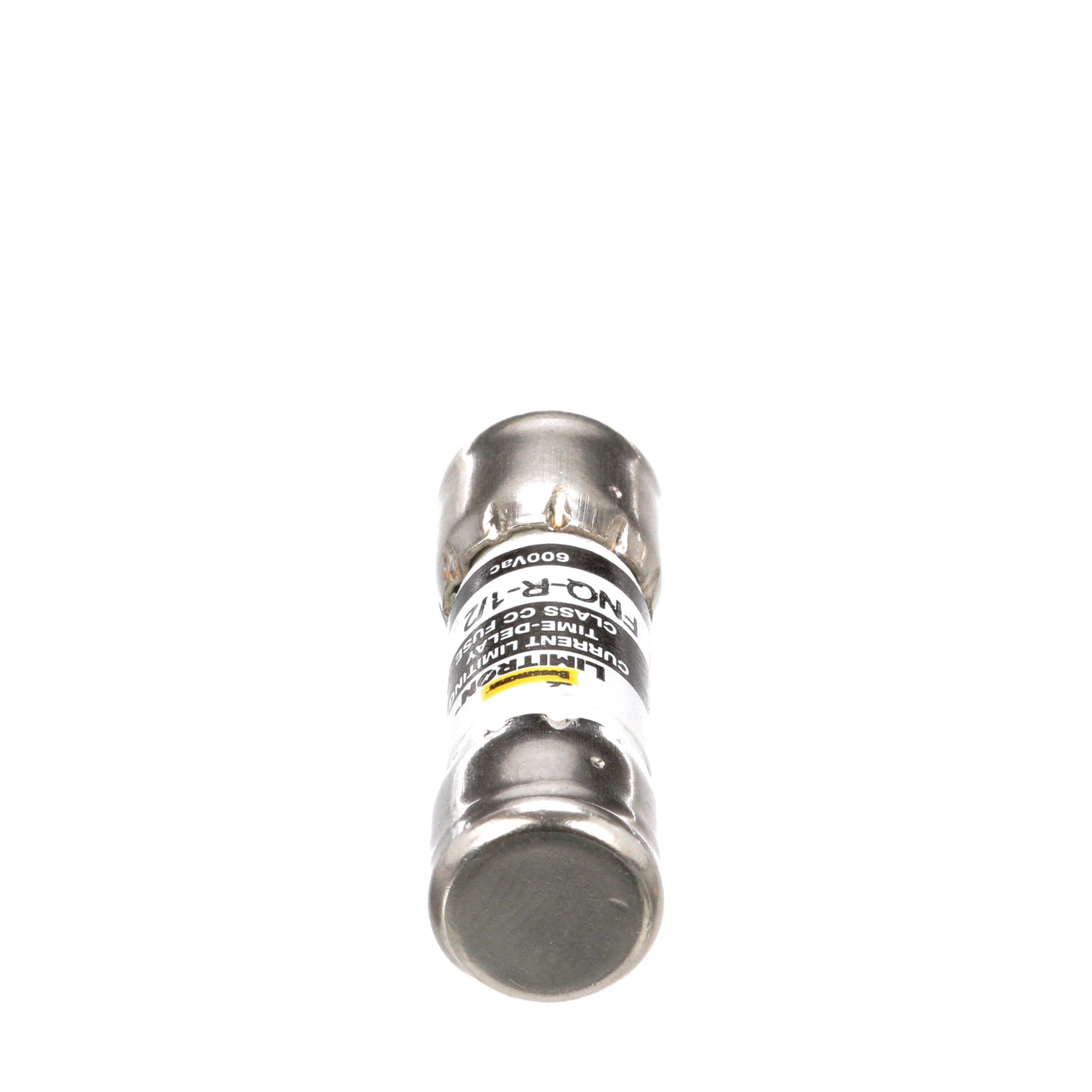

Bussmann FNQ-R-1/2 - Class CC Fuse 600V/0.5A (200kA AIC)

Bussmann FNQ-R-1/2 is a Class CC low-voltage fuse designed for circuit protection in industrial electrical systems. It features a 600V AC rating with a 0.5A current capacity and 200kA interrupting rating at 600V for reliable overcurrent protection. The fuse measures 1-1/2 inches in length with a 0.41-inch diameter barrel construction, weighing 1 lb, and complies with UL 248-4 and CSA Class 1422-01 standards. Certified for CE, UL, and CSA applications, this Mexico-manufactured component is part of the CC-Tron family, suitable for motor control centers, industrial control panels, and power distribution systems requiring precise current limitation.

Key Features & Specifications

• Type: FNQ Class CC time-delay fuse with single barrel design
• Voltage Rating: 600V AC
• Current Rating: 0.5A
• Dimensions: 1-1/2 in length x 0.41 in diameter
• Standards: CE/UL-248-4 Guide JDDZ/CSA Class 1422-01
• Applications: Industrial control circuits, motor protection, power distribution
• Class Rating: CC
• AIC rating: 200kA@600V
• Weight: 1 lb
• Country of Origin: Mexico

Product Identification

• UPC: 051712147019
• GTIN: 00051712147019
