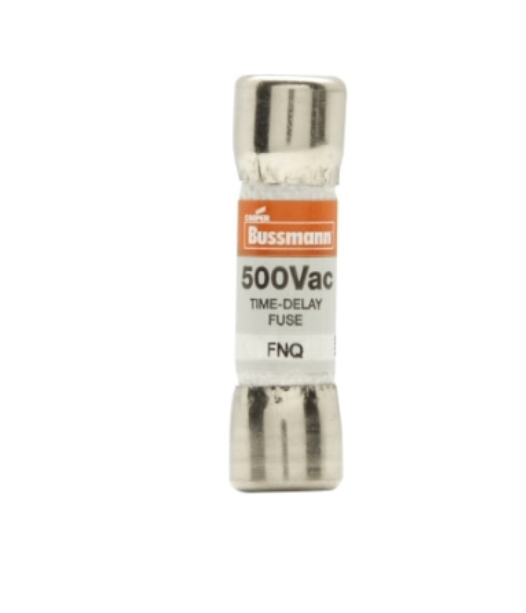

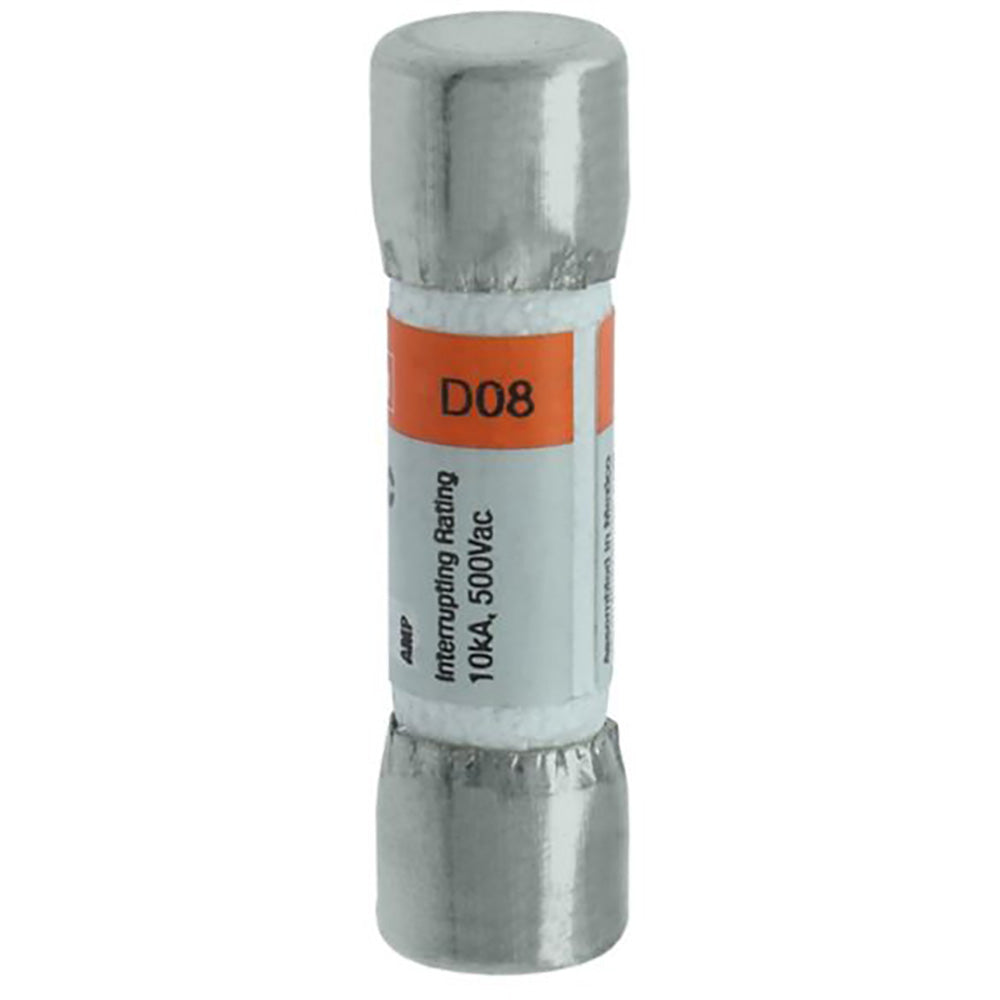

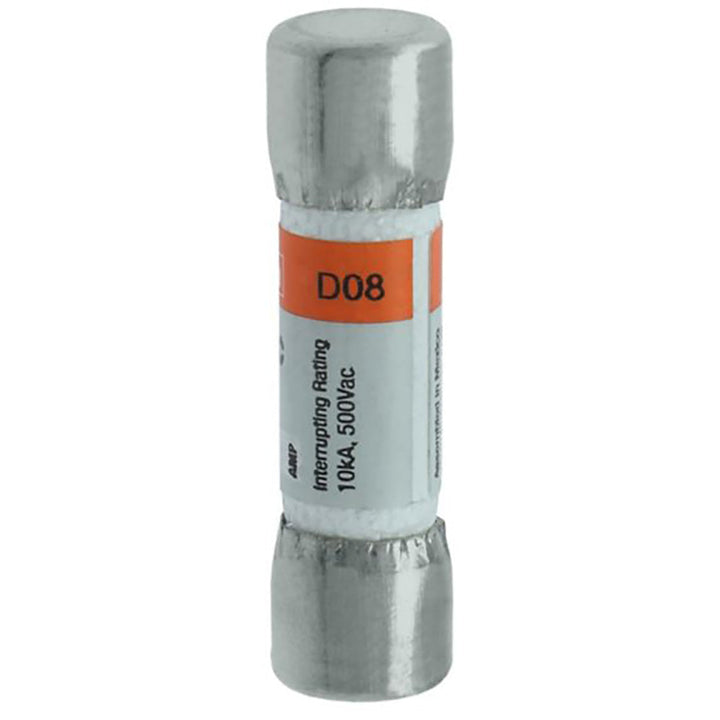

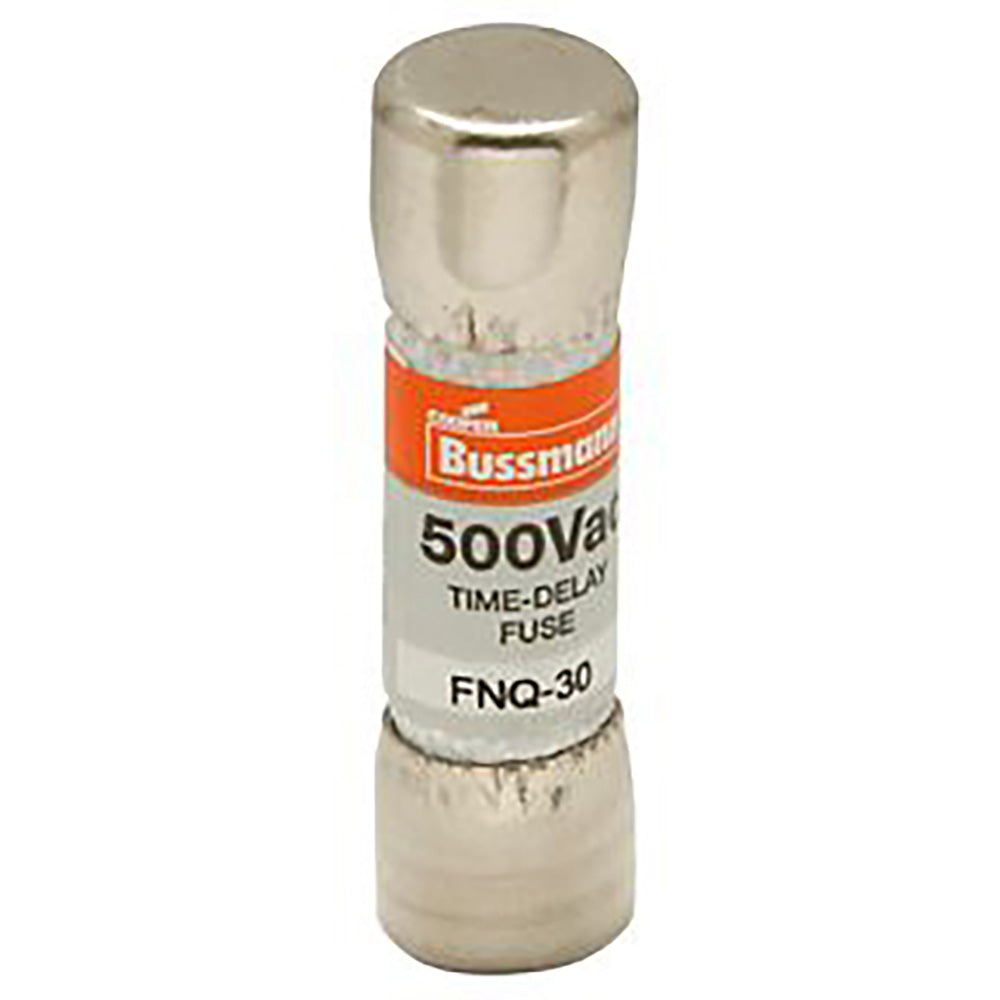

Bussmann FNQ-14 - Low Voltage Fuse 14A 500V (10kA AIC Rating)

Bussmann FNQ-14 is a low-voltage current-limiting fuse designed for circuit protection in industrial electrical systems. It features a 14A current rating and 500V voltage rating with a 10kA interrupting capacity at rated voltage. The fuse measures 1-1/2" in length with a 0.41" diameter and single-barrel construction weighing 1 lb. It complies with CE, CSA Class 1422-01, and UL-248-14 Guide JDYX standards for safety and performance. Typical applications include protection of motor circuits, transformers, and industrial control equipment where reliable overcurrent protection is required.

Key Features & Specifications

• Type: FNQ Series current-limiting fuse, single barrel design
• Voltage Rating: 500V AC/DC
• Current Rating: 14A
• Dimensions: 1-1/2" length x 0.41" diameter
• Standards: CE, CSA Class 1422-01, UL-248-14 Guide JDYX
• Applications: Motor circuit protection, transformer protection, industrial control systems
• AIC rating: 10kA@500V
• Barrels: 1
• Weight: 1 lb
• Certification: CE, CSA, UL
• Family: FNQ Series
• Country of Origin: Mexico

Product Identification

• UPC: 051712786348
• GTIN: 00051712786348
