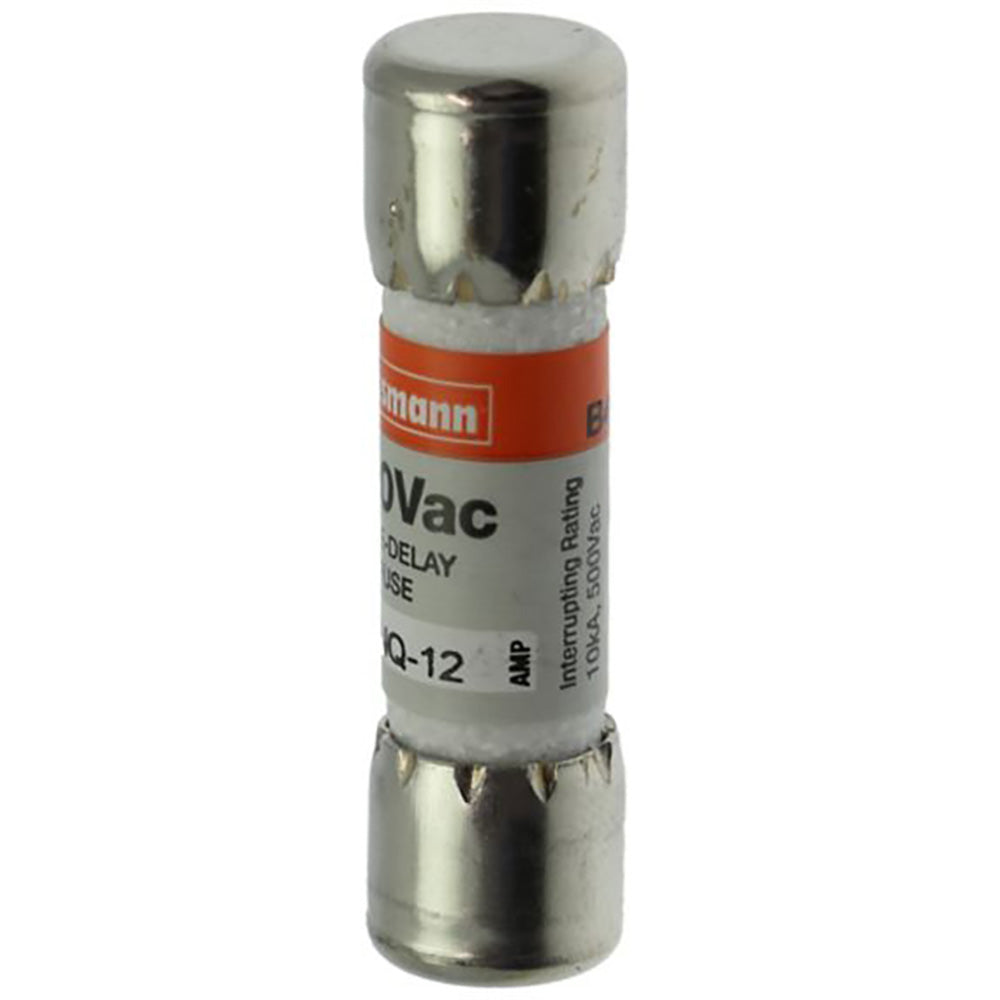

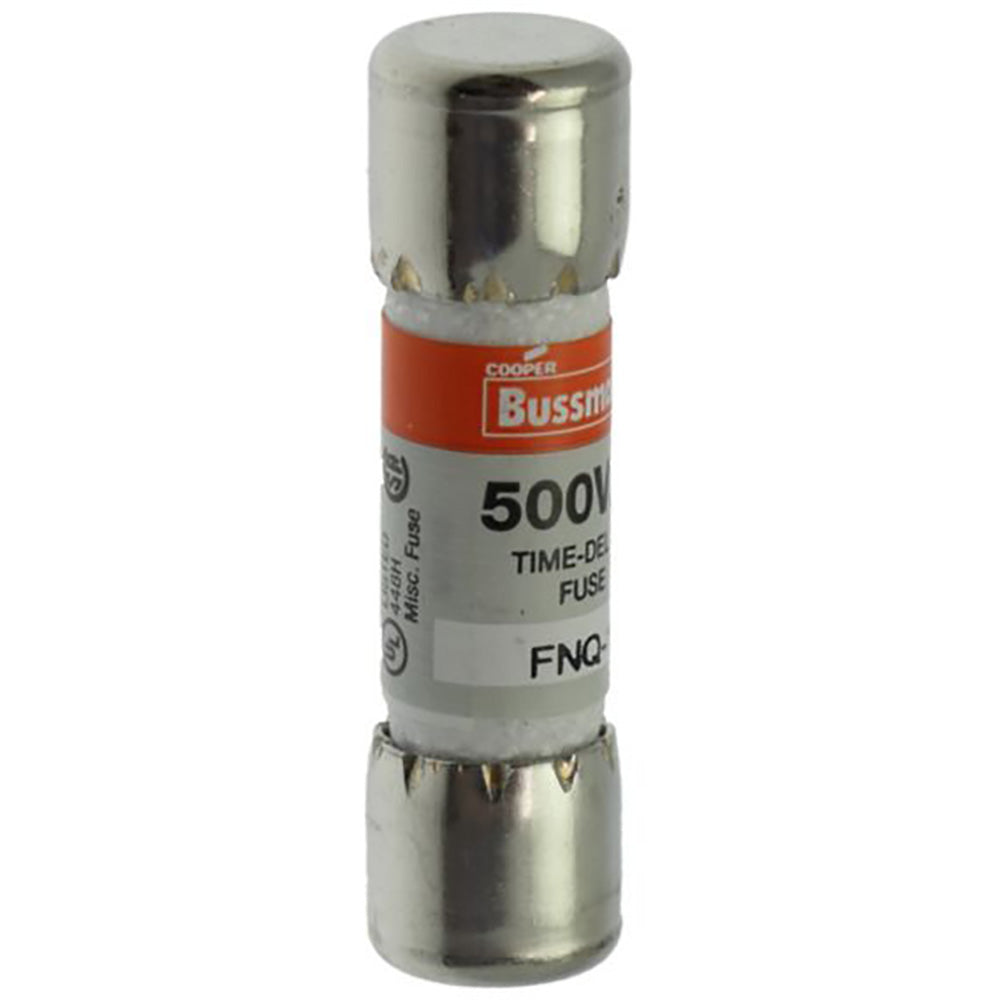

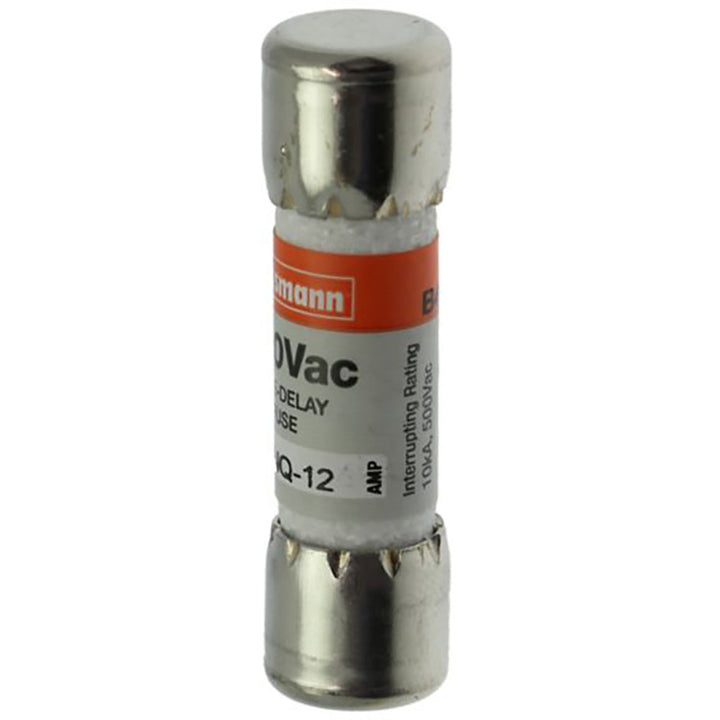

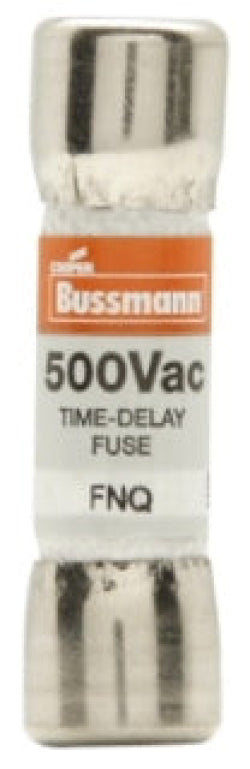

Bussmann FNQ-12 - Low Voltage Fuse 12A 500V (10kA AIC Rating)

The Bussmann FNQ-12 is a low-voltage current-limiting fuse designed for branch circuit protection in industrial electrical systems. It features a 12A current rating and 500V voltage rating with an interrupting capacity of 10kA at 500V AC. The fuse measures 1-1/2 inches in length with a 0.41-inch diameter single-barrel construction and weighs 1 lb. It complies with CE, CSA Class 1422-01, and UL-248-14 Guide JDYX standards for safety and performance. Typical applications include protection of control circuits, transformers, and motor circuits where reliable overcurrent protection is required.

Key Features & Specifications

• Type: FNQ series current-limiting fuse, single barrel construction
• Voltage Rating: 500V AC
• Current Rating: 12A
• Dimensions: 1-1/2 inch length, 0.41 inch diameter
• Standards: CE, CSA Class 1422-01, UL-248-14 Guide JDYX
• Applications: Industrial control circuits, transformers, motor protection
• AIC rating: 10kA@500V
• Barrels: 1
• Weight: 1 lb
• Certification: CE, CSA Class 1422-01, UL-248-14 Guide JDYX
• Family: FNQ Series
• Country of Origin: Mexico

Product Identification

• UPC: 051712786126
• GTIN: 00051712786126
