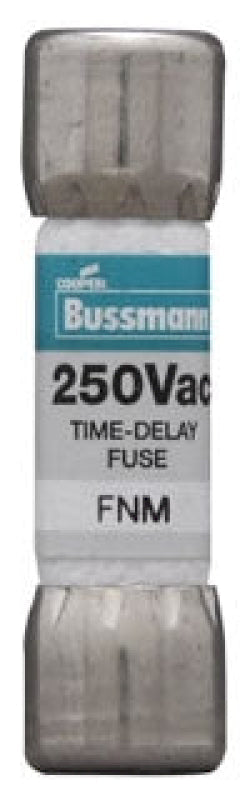

Bussmann FNM-8 - FNM Time-Delay Fuse 8A 250V (200kA AIC)

Bussmann
Price
Save $370.55
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
The Bussmann FNM-8 is a low-voltage, time-delay fuse designed for branch circuit protection in industrial control panels and motor circuits. It is rated for 250V AC/DC systems with an 8A current rating and a high 200kA interrupting capacity at 250V. The fuse features a compact, single-barrel ferrule non-rejection design with dimensions of 0.39" x 1.44" x 0.39" (LxHxW) and a 0.41" diameter, constructed to meet CSA Class 1422-01 and UL-248-14 (Guide JDYX) standards. This certified component is suitable for protecting transformers, solenoids, and motor loads where inrush currents are present.

Key Features & Specifications
  • Type: FNM Series, Time-Delay, Single Barrel, Ferrule Non-Rejection
  • Voltage Rating: 250V AC/DC
  • Current Rating: 8A
  • Dimensions: 0.39 in x 1.44 in x 0.39 in (L x H x W)
  • Diameter: 0.41 in
  • Weight: 0.2 lb
  • Standards: CE, CSA Class 1422-01, UL-248-14 Guide JDYX
  • AIC Rating: 200kA @ 250V
  • Class Rating: 1422-01
  • Connection: Ferrule Non-Rejection
  • Barrels: 1
  • Country of Origin: Mexico


Product Identification
  • UPC: 051712520805
  • GTIN: 00051712520805
