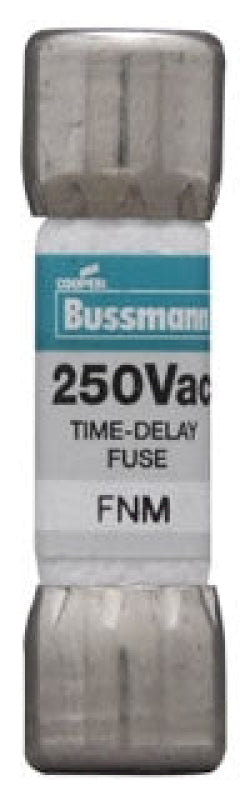

Bussmann FNM-7 - FNM Time-Delay Fuse 7A 250V (200kA AIC)

Bussmann
Price
Save $375.99
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Bussmann FNM-7 is a low-voltage, time-delay fuse designed for protecting control circuits, transformers, and motors against overloads and short circuits. It is rated for 250V AC/DC systems with a 7A current rating and a high 200kA interrupting capacity at 250V. The fuse features a compact, single-barrel construction with ferrule non-rejection contacts, measuring 1.5 inches in length and 0.41 inches in diameter, and is built to meet stringent industry standards including UL 248-14 and CSA Class 1422-01. This makes it suitable for a wide range of industrial applications in panelboards, control cabinets, and motor starter circuits.

Key Features & Specifications
  • Type: FNM Series, time-delay, low-voltage fuse with single-barrel construction
  • Voltage Rating: 250V AC/DC
  • Current Rating: 7A
  • Dimensions: 1.5 in L x 0.41 in H x 0.41 in W (38.1 mm x 10.4 mm x 10.4 mm)
  • Standards: CE, CSA Class 1422-01, UL-248-14 Guide JDYX
  • Applications: Protection for control circuits, transformers, and motors in industrial panelboards
  • AIC rating: 200kA @ 250V
  • Connection: Ferrule Non-Rejection
  • Barrels: 1
  • Diameter: 0.41 in (10.4 mm)
  • Class Rating: 1422-01
  • Weight: 0.175 lb


Product Identification
  • UPC: 051712520706
  • GTIN: 00051712520706
