Bussmann FNM-6-1/4 - FNM Time-Delay Fuse 6A 250V
Bussmann FNM-6-1/4 - FNM Time-Delay Fuse 6A 250V
Bussmann FNM-6-1/4 - FNM Time-Delay Fuse 6A 250V
Bussmann FNM-6-1/4 - FNM Time-Delay Fuse 6A 250V

Bussmann FNM-6-1/4 - FNM Time-Delay Fuse 6A 250V

Bussmann
Price
Save $375.62
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

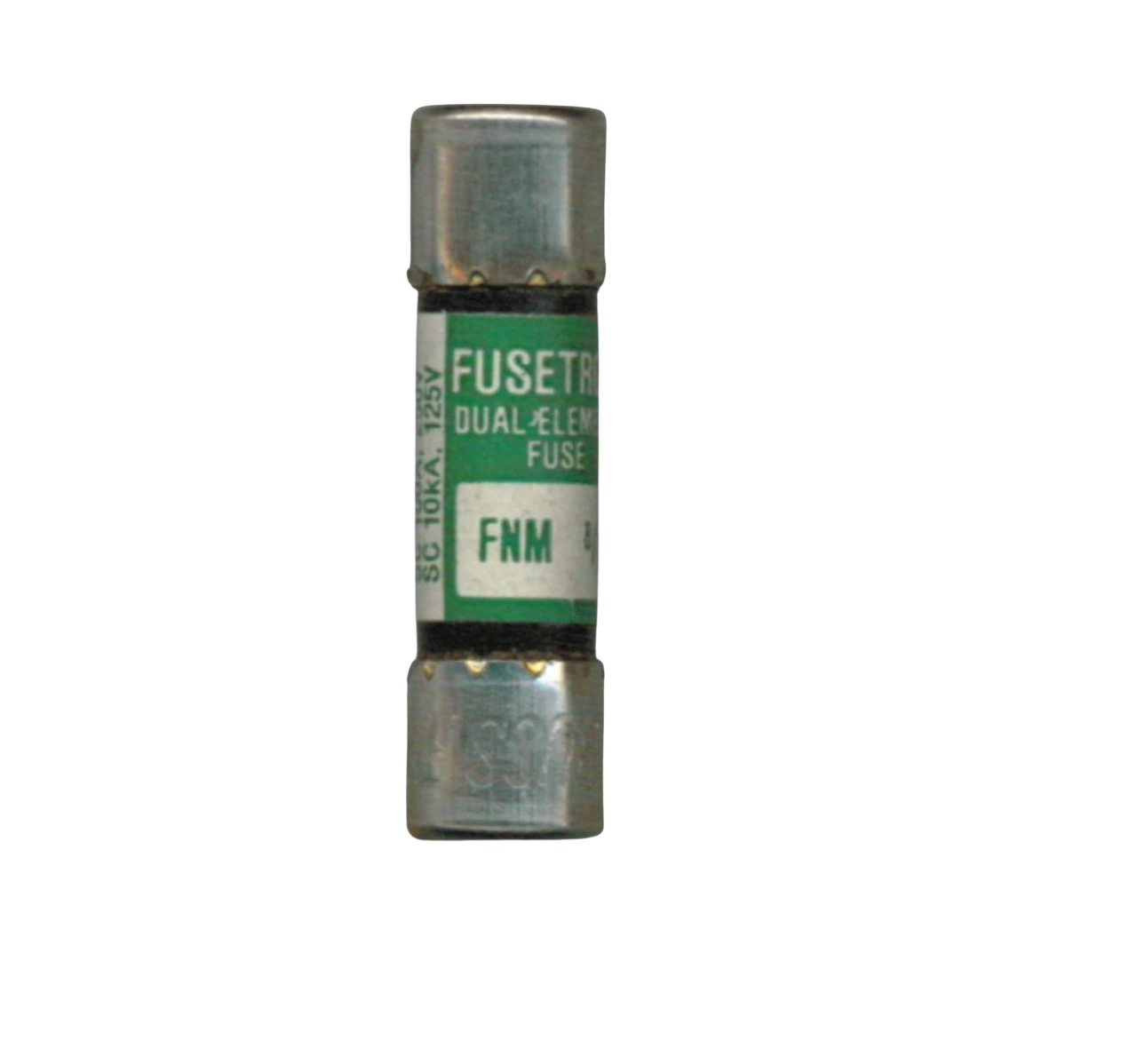

The Bussmann FNM-6-1/4 is a low-voltage, time-delay fuse designed for branch circuit and feeder protection in industrial control panels and equipment. It features a 6A current rating and a 250V voltage rating, providing reliable overcurrent protection with a high 200kA interrupting capacity. The fuse is constructed with a single-barrel, ferrule non-rejection design, measuring 0.39" x 1.44" x 0.39" and weighing 0.2 lb, and is built to meet stringent industry standards including UL 248-14 and CSA Class 1422-01. It is commonly applied in motor circuits, transformers, and other loads requiring a time-delay characteristic to withstand harmless inrush currents.

Key Features & Specifications
  • Type: FNM Series, Time-Delay, Single Barrel, Ferrule Non-Rejection
  • Voltage Rating: 250V AC/DC
  • Current Rating: 6A
  • Dimensions: 0.39 in (D) x 1.44 in (H) x 0.39 in (W)
  • Diameter: 0.41 in
  • Weight: 0.2 lb
  • Standards: CE, CSA Class 1422-01, UL-248-14 Guide JDYX
  • Applications: Industrial motor protection, transformers, feeders, and control circuits
  • AIC Rating: 200kA @ 250V
  • Class Rating: 1422-01
  • Connection: Ferrule Non-Rejection
  • Barrels: 1


Product Identification
  • UPC: 051712520645
  • GTIN: 00051712520645
