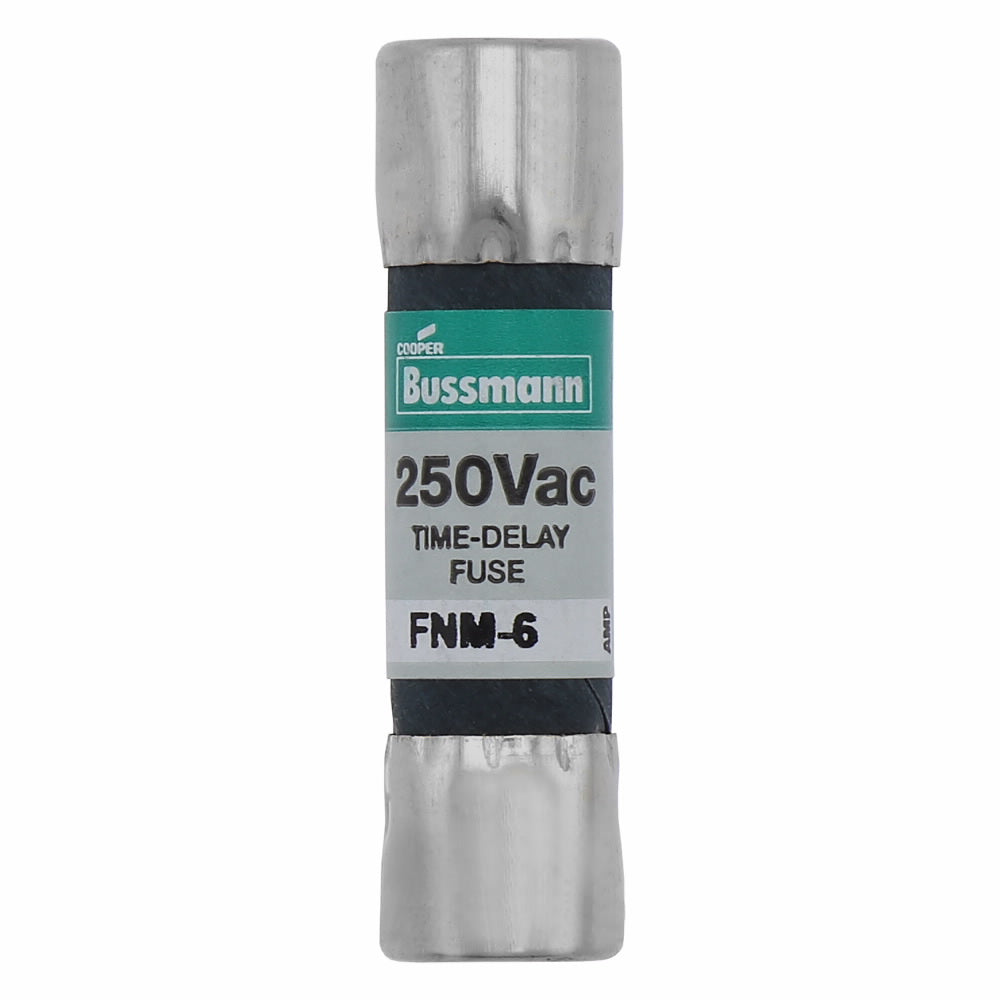

Bussmannn FNM-6 - Low Voltage Fuse 6A@250V (200kA AIC Rating)

Bussmannn FNM-6 is a low-voltage fuse designed for circuit protection in industrial electrical systems, featuring a 6A current rating and 250V voltage capacity with a 200kA interrupting rating. The ferrule non-rejection design ensures secure connections in a compact 1-1/2" body with 0.41" diameter, constructed to meet CE, CSA Class 1422-01, and UL-248-14 standards. Its single-barrel configuration provides reliable overcurrent protection for motor circuits, transformers, and branch circuits in commercial/industrial environments where high fault current interruption is critical.

Key Features & Specifications

• Type: FNM series non-time-delay fuse with ferrule non-rejection terminals
• Voltage Rating: 250V AC
• Current Rating: 6A
• Dimensions: 1-1/2" length x 0.41" diameter
• Standards: CE, CSA Class 1422-01, UL-248-14 Guide JDYX
• Applications: Motor circuits, transformers, industrial branch circuits
• AIC rating: 200kA@250V
• Connection: Ferrule Non-Rejection
• Barrels: 1
• Class Rating: 1422-01
• Weight: 1 lb
• Country of Origin: Mexico

Product Identification

• UPC: 051712520607
• GTIN: 00051712520607
