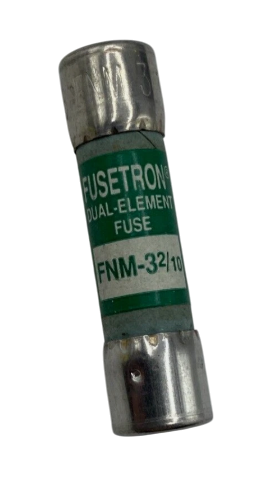

Bussmann FNM-3-2/10 - FNM Fuse 3A 250V (100kA AIC)
Bussmann FNM-3-2/10 - FNM Fuse 3A 250V (100kA AIC)
Bussmann FNM-3-2/10 - FNM Fuse 3A 250V (100kA AIC)
Bussmann FNM-3-2/10 - FNM Fuse 3A 250V (100kA AIC)

Bussmann FNM-3-2/10 - FNM Fuse 3A 250V (100kA AIC)

Bussmann
Price
Save $353.86
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Bussmann FNM-3-2/10 is a low-voltage fuse designed for providing precise overcurrent protection in industrial control circuits and equipment. It features a 3A current rating and a 250V voltage rating, engineered to safely interrupt faults with an interrupting rating of 100kA. The fuse is constructed with a compact, cylindrical body measuring 0.39 in x 1.44 in x 0.39 in and utilizes a single-barrel, ferrule non-rejection connection for secure installation. It complies with key industry standards including UL-248-14 and CSA Class 1422-01, ensuring reliable performance in applications such as motor control centers, transformers, and panelboards.

Key Features & Specifications
  • Type: FNM Series, low-voltage, current-limiting fuse
  • Voltage Rating: 250V AC/DC
  • Current Rating: 3A
  • Dimensions: 0.39 in (L) x 1.44 in (H) x 0.39 in (W)
  • Standards: CE, CSA Class 1422-01, UL-248-14 Guide JDYX
  • Applications: Industrial control circuits, motor protection, panelboards
  • Class Rating: 1422-01
  • AIC rating: 100kA @ 250V
  • Connection: Ferrule Non-Rejection
  • Barrels: 1
  • Diameter: 0.41 in
  • Weight: 0.2 lb


Product Identification
  • UPC: 05171252032
  • GTIN: 00051712520324
