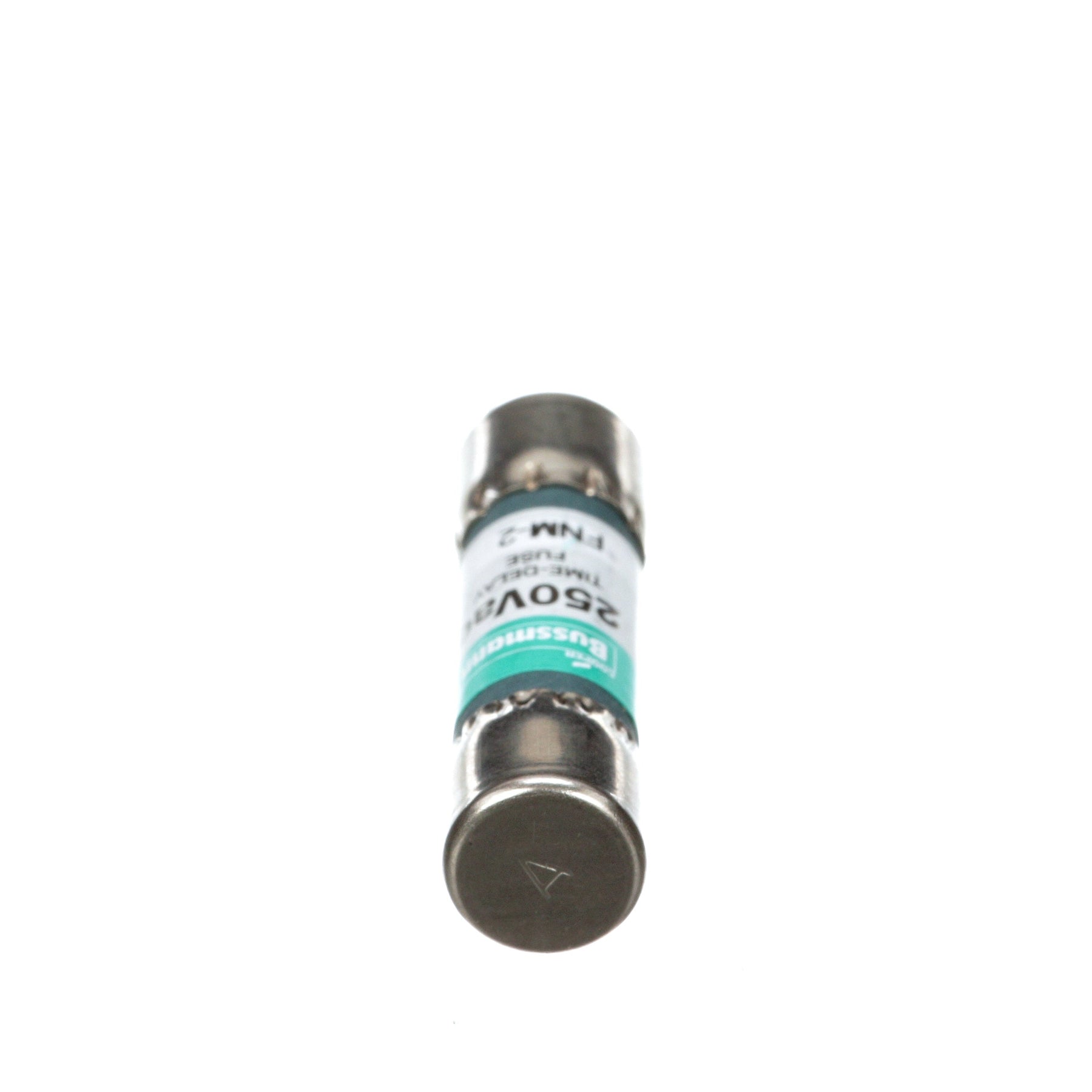

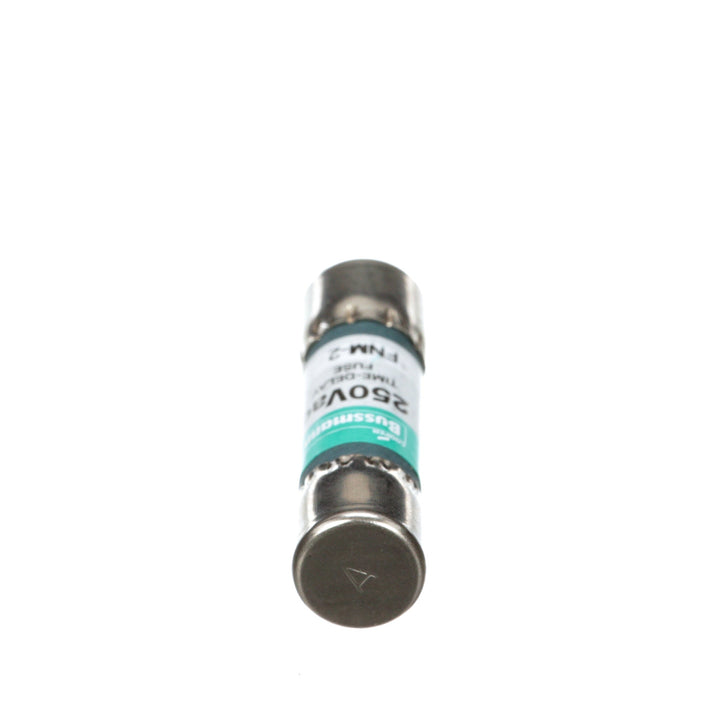

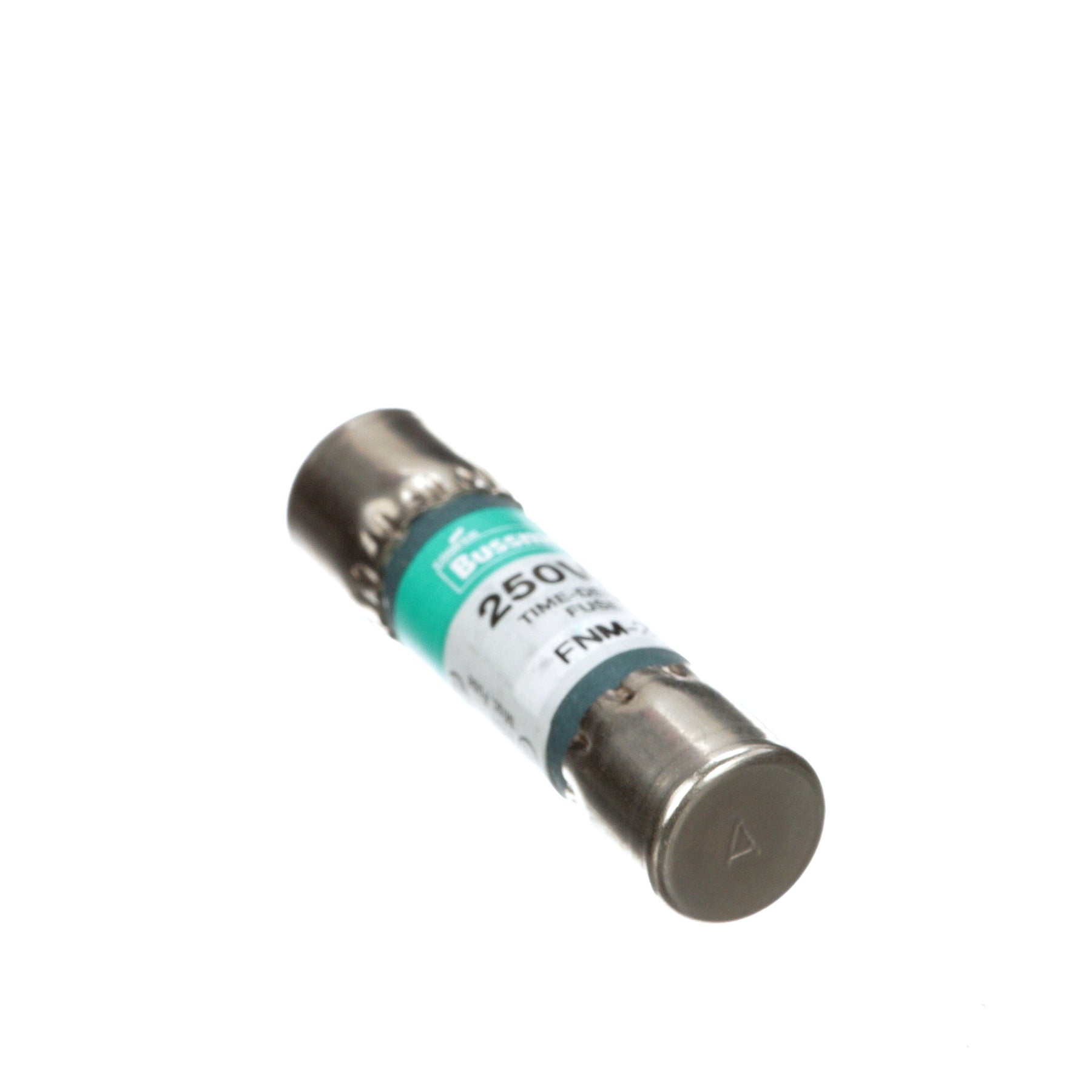

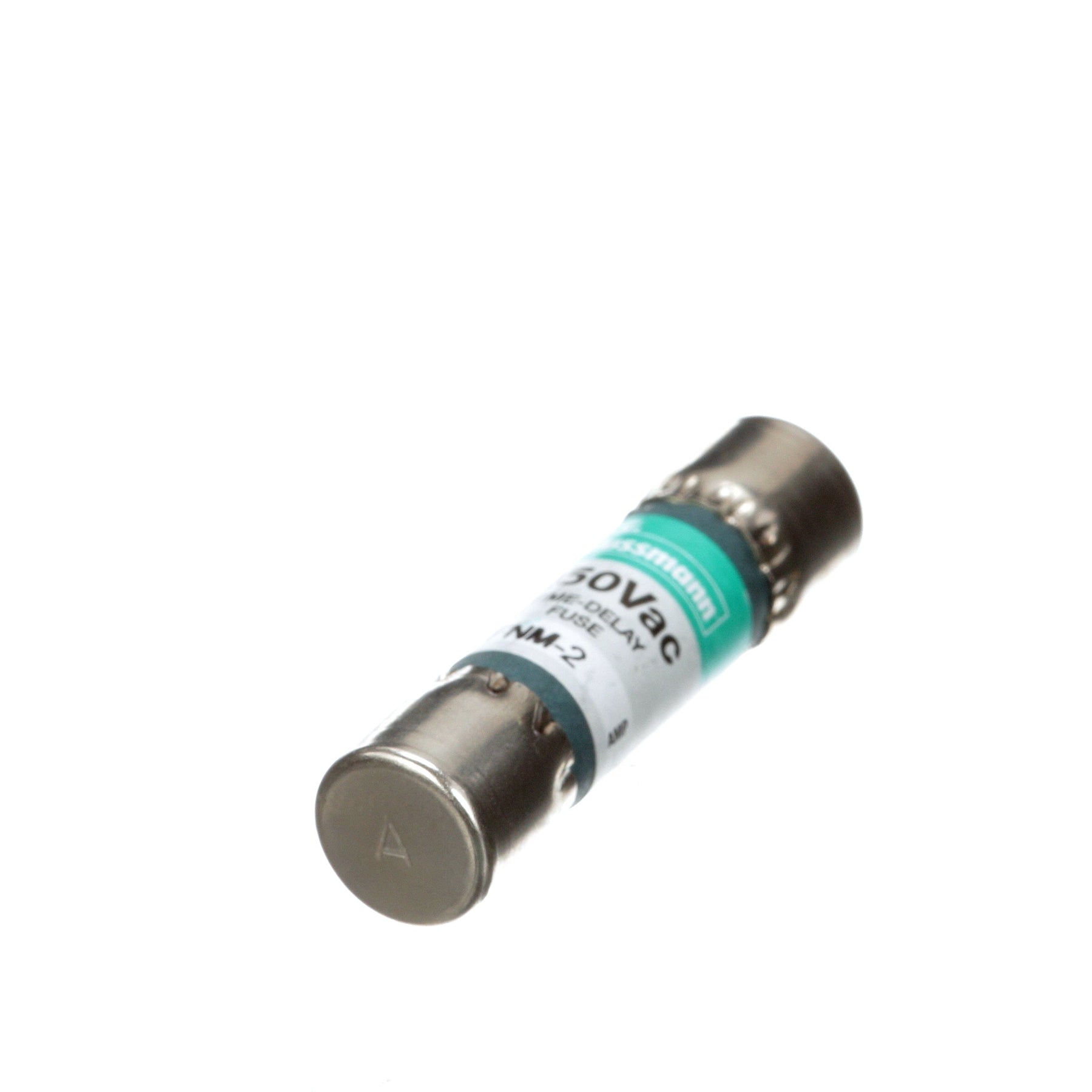

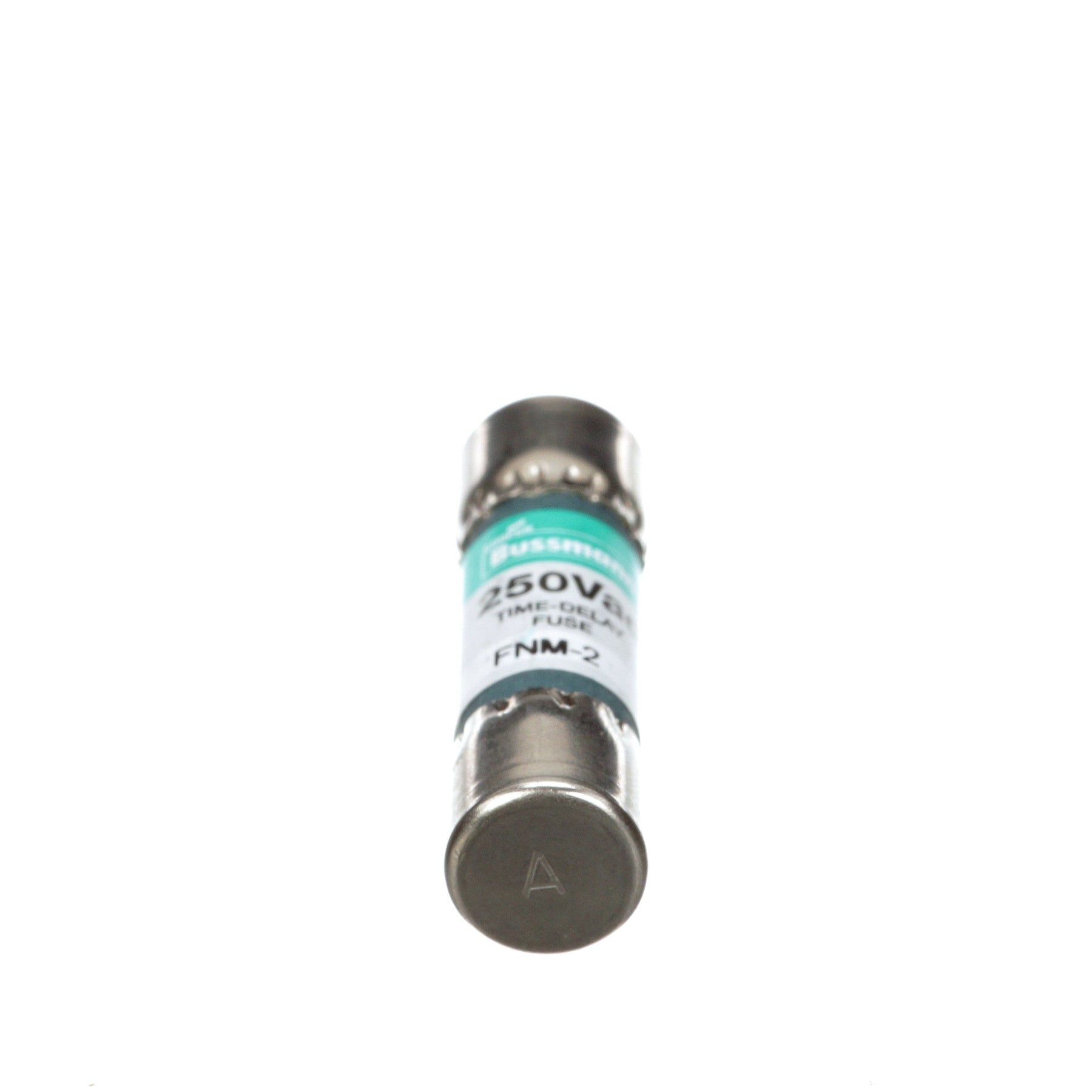

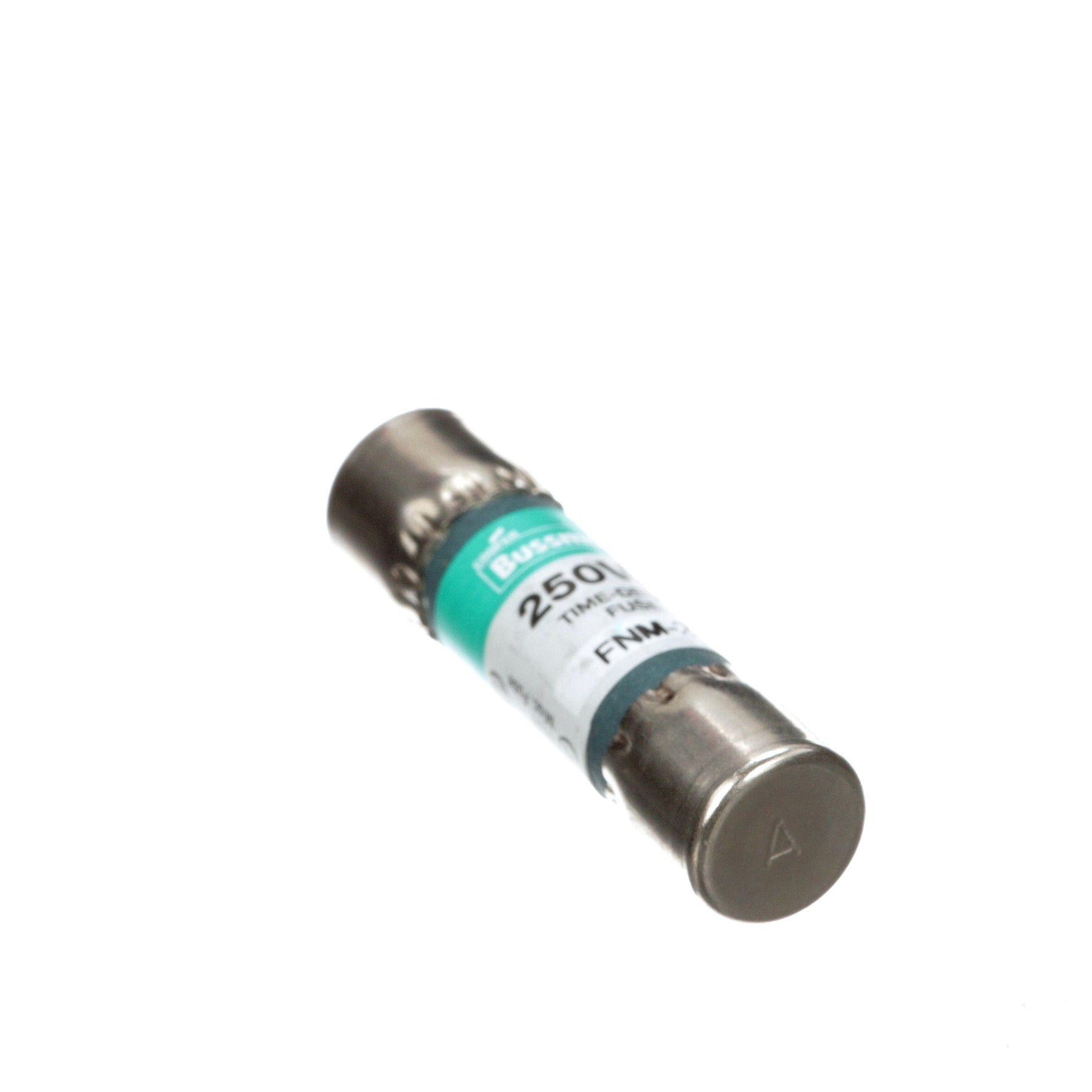

Bussmann FNM-2 is a low voltage fuse designed for providing precise overcurrent protection in industrial control circuits and equipment. It features a 2A current rating and a 250V voltage rating, with a high 100kA interrupting capacity at its rated voltage for reliable fault clearing. The fuse is constructed as a single-barrel, ferrule non-rejection type with dimensions of 0.39 in x 1.44 in x 0.39 in and a 0.41-inch diameter, weighing 0.2 lb. It complies with key industry standards including UL-248-14 (Guide JDYX) and carries CSA Class 1422-01 and CE certifications. This fuse is typically applied in motor control centers, industrial panels, and transformer protection circuits where dependable, fast-acting protection is required.
Key Features & Specifications
Type: Low Voltage Fuse, FNM Series, single-barrel ferrule non-rejection construction
Voltage Rating: 250V
Current Rating: 2A
Dimensions: 0.39 in (L) x 1.44 in (H) x 0.39 in (W)
Diameter: 0.41 in
Weight: 0.2 lb
Standards: Certified to CE, CSA Class 1422-01, UL-248-14 Guide JDYX
