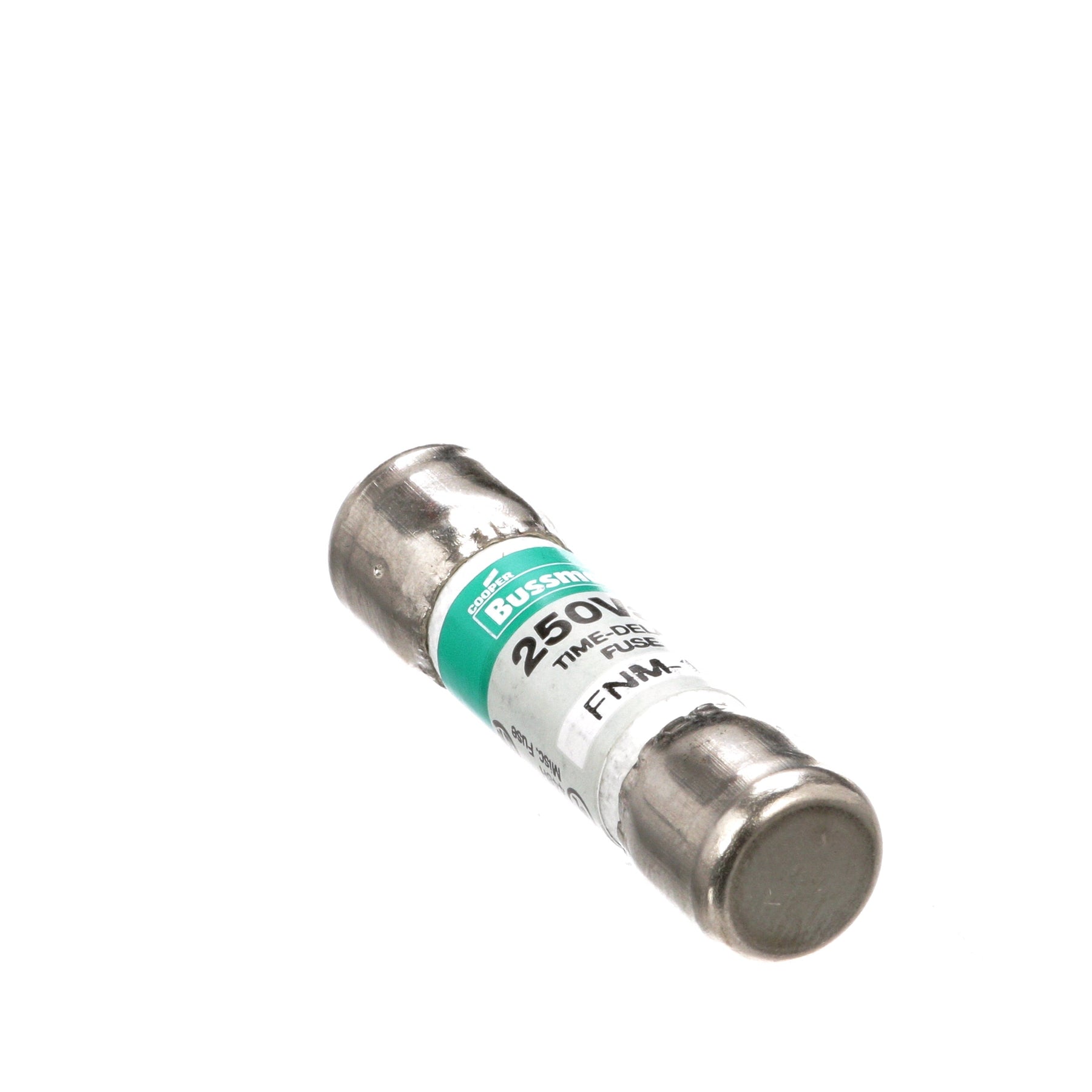

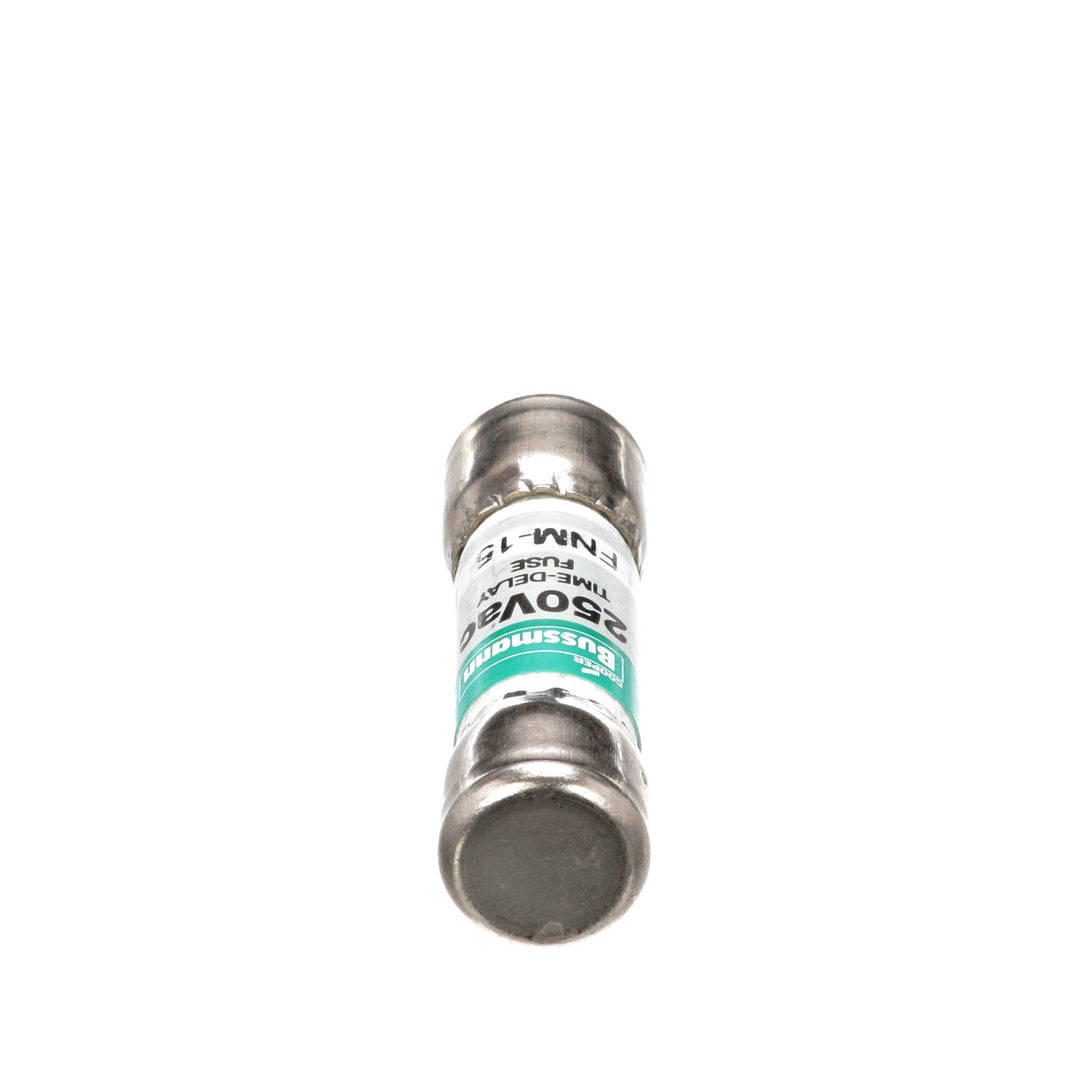

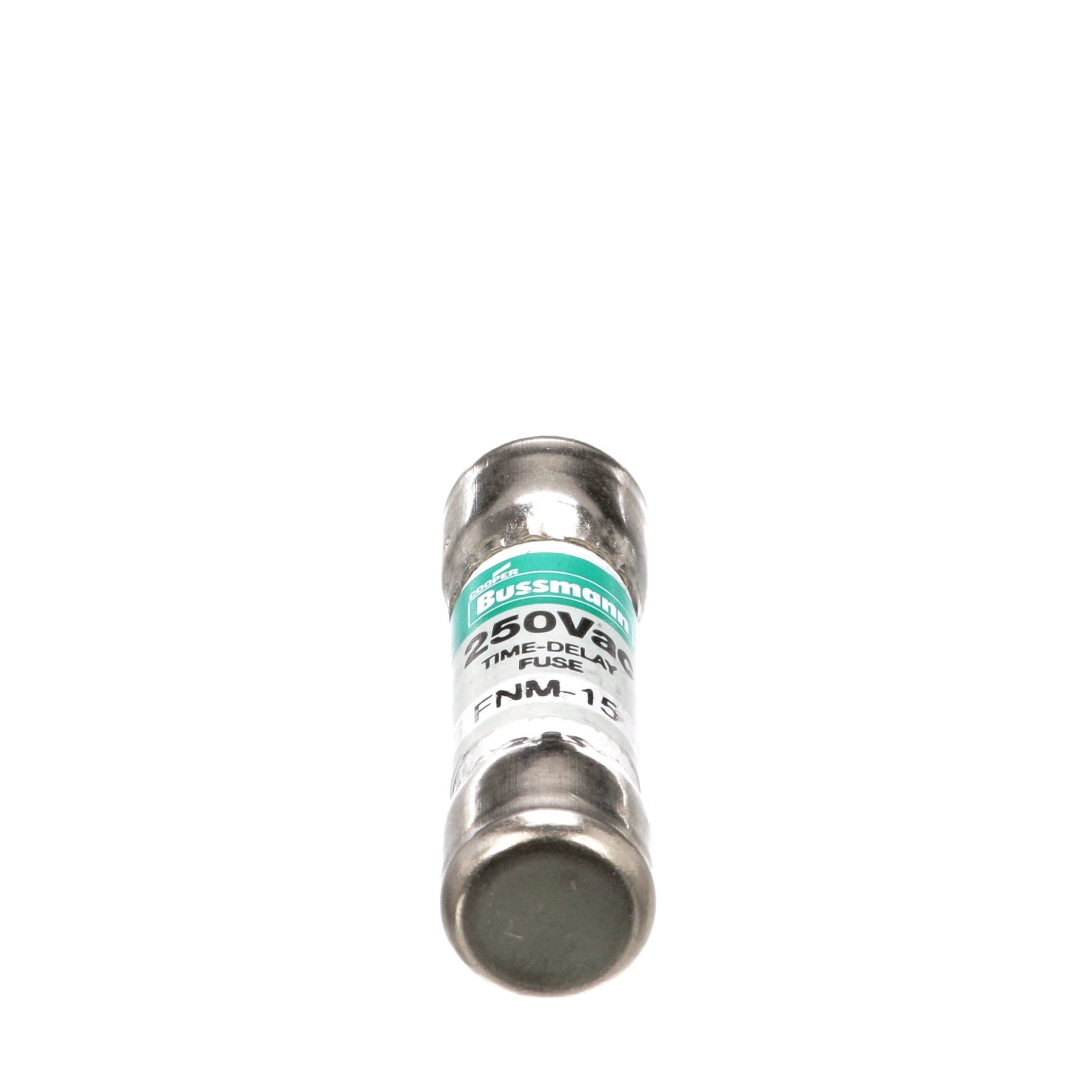

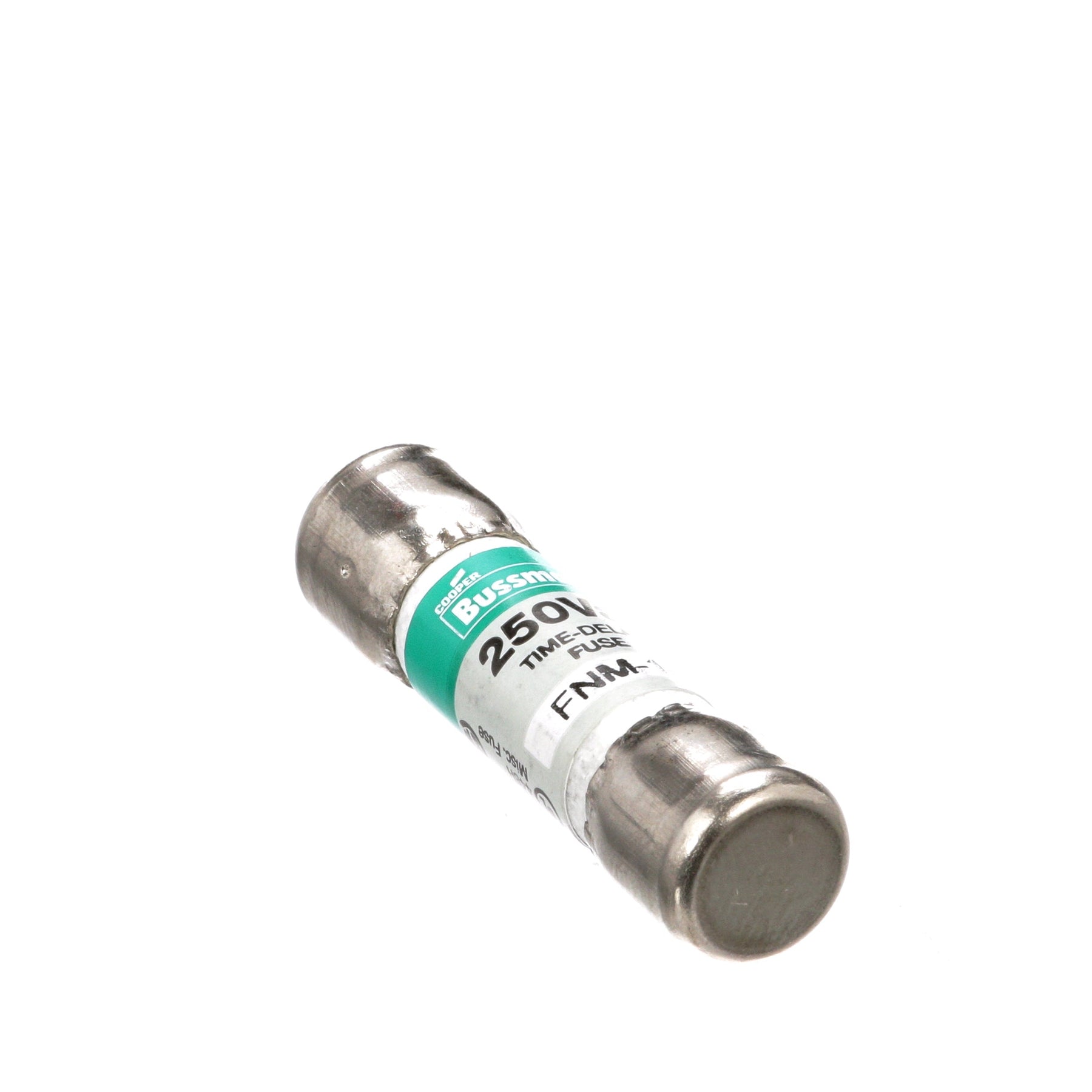

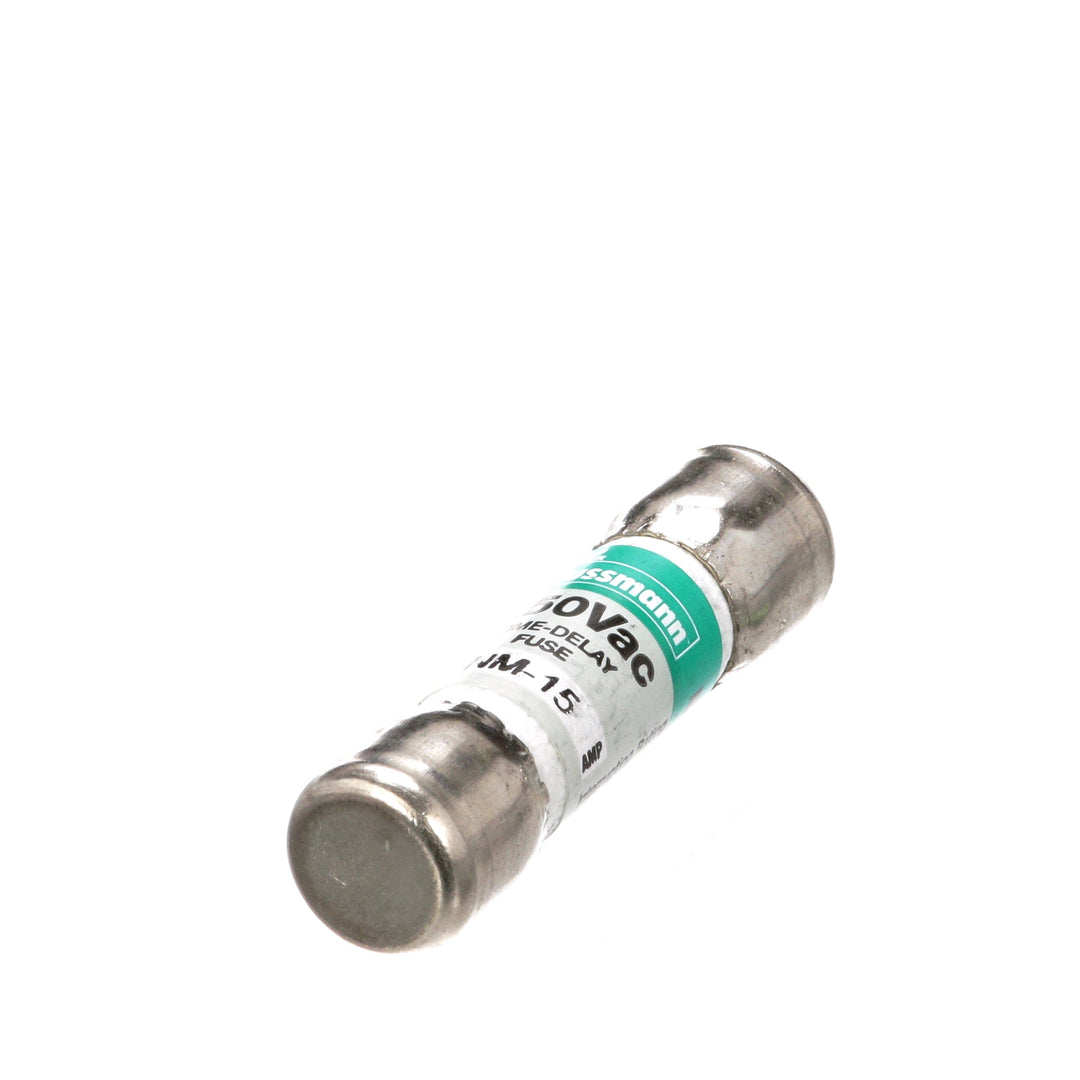

Bussmann FNM-15 is a low-voltage fuse designed for circuit protection in industrial applications, providing reliable overcurrent protection for electrical systems. It features a 15A current rating and 250V voltage rating with a 10kA interrupting capacity at rated voltage. The fuse construction includes a 1-1/2 inch ferrule non-rejection design with 0.41 inch diameter and single barrel configuration, manufactured to meet rigorous industry standards including CE, CSA Class 1422-01, and UL-248-14 Guide JDYX certifications. This fuse is commonly employed in industrial control circuits, motor branch circuits, and general purpose applications where consistent performance and safety compliance are essential.
Key Features & Specifications
Type: FNM series low-voltage fuse with ferrule non-rejection connection
Voltage Rating: 250V AC
Current Rating: 15A
Dimensions: 1-1/2 inch length, 0.41 inch diameter
Standards: CE, CSA Class 1422-01, UL-248-14 Guide JDYX
Applications: Industrial control circuits, motor protection, general purpose electrical systems
AIC rating: 10kA@250V
Connection: Ferrule Non-Rejection
Barrels: 1
Class Rating: 1422-01
Weight: 1 lb
Certification: CE, CSA Class 1422-01, UL-248-14 Guide JDYX
Product Identification
UPC: 051712521505
GTIN: 00051712521505
