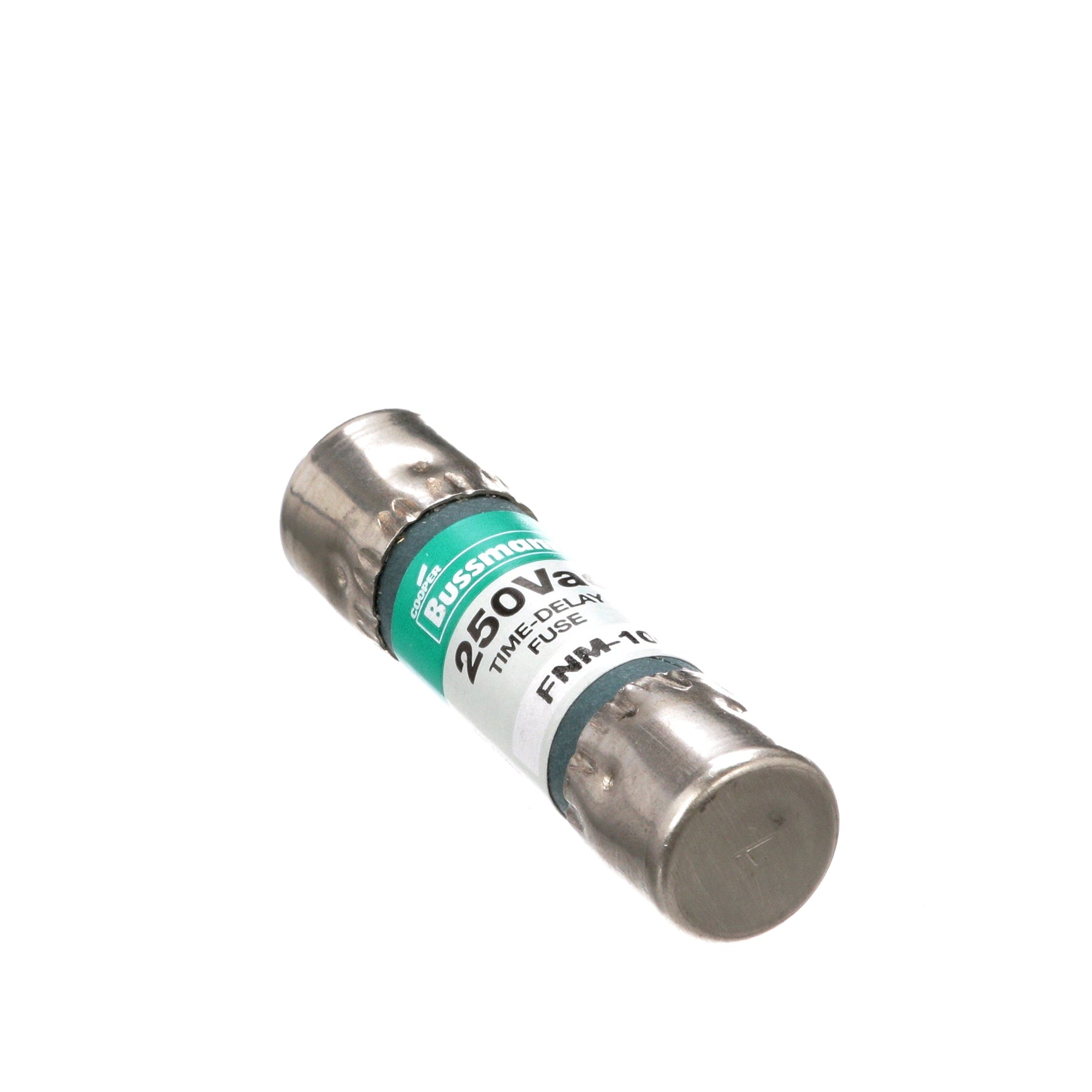

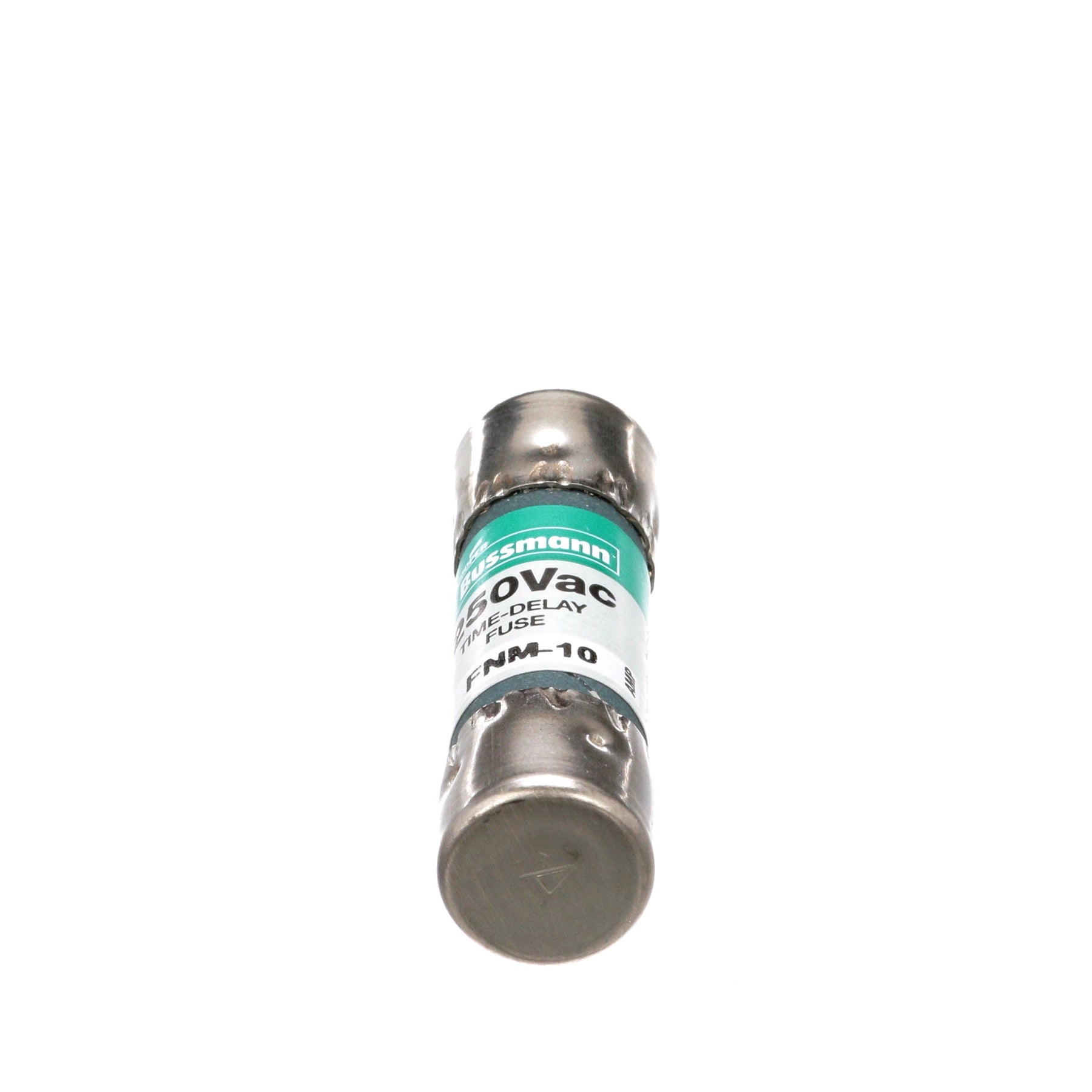

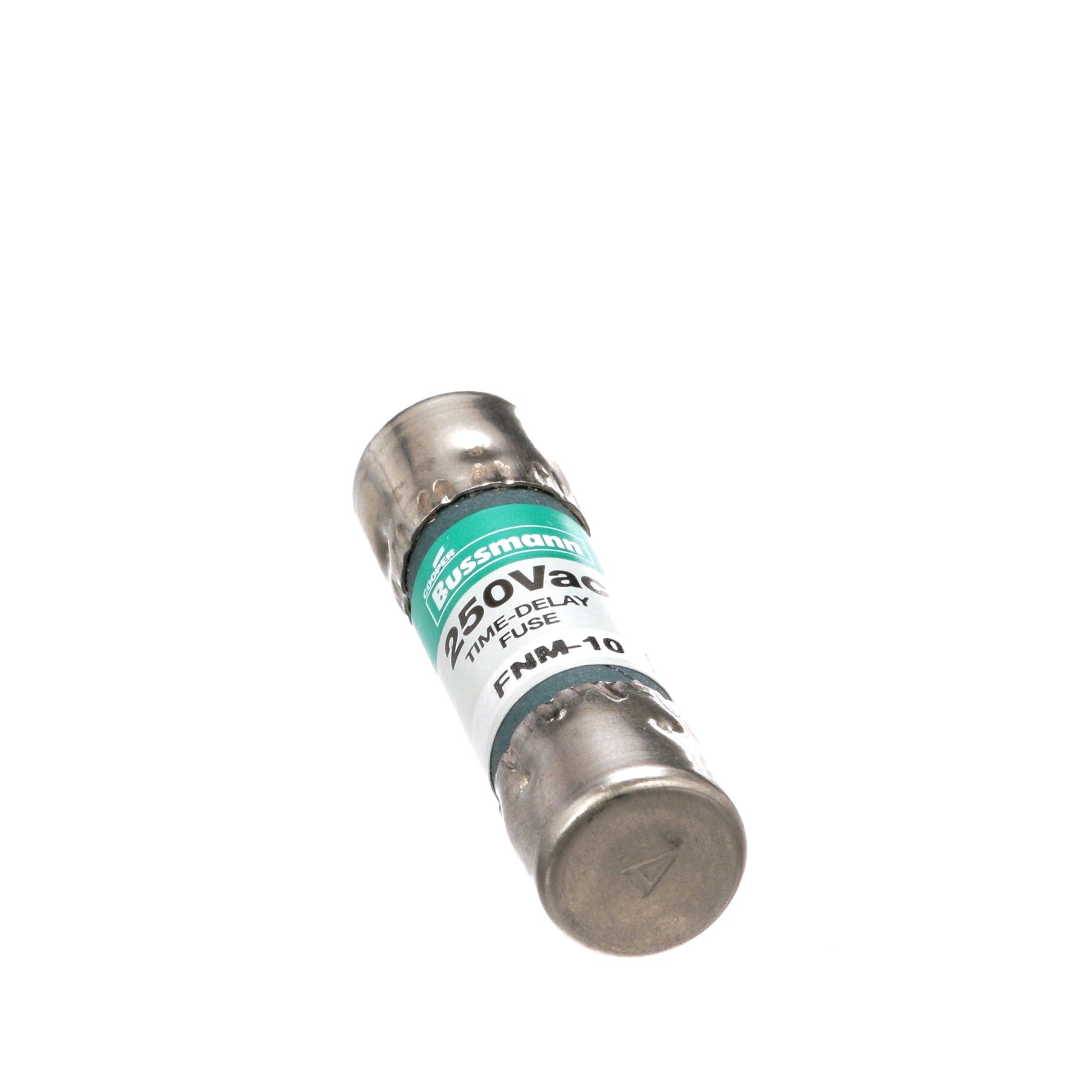

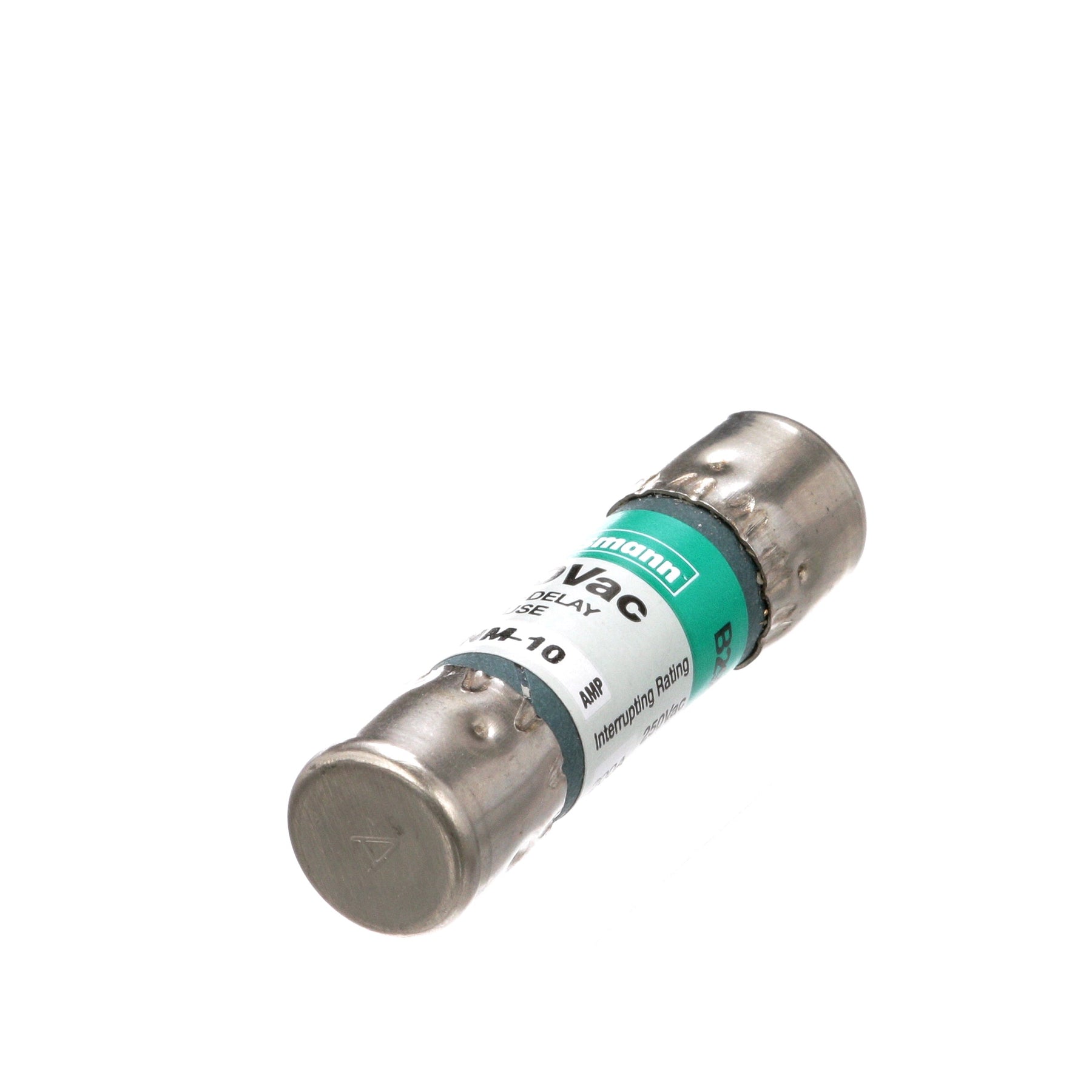

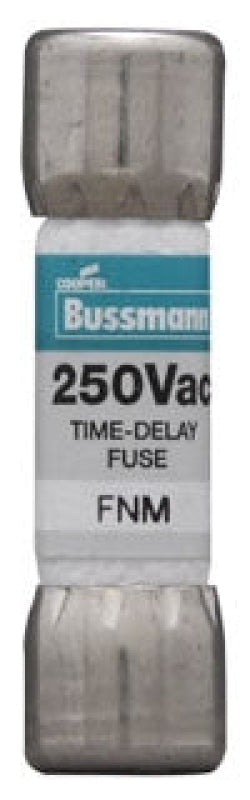

Bussmannn FNM-10 - Low Voltage Fuse 10A@250V (200kA AIC Rating)

Bussmannn FNM-10 is a low-voltage fuse designed for circuit protection in industrial electrical systems, featuring a 10A current rating and 250V voltage capacity with ferrule non-rejection terminals. Its compact 1-1/2" cylindrical design (0.41" diameter) with single-barrel construction meets CE, CSA Class 1422-01, and UL-248-14 standards while delivering 200kA interrupting capacity. The fuse provides reliable overcurrent protection for motor control circuits, transformers, and power distribution equipment in compliance with industrial safety requirements.

Key Features & Specifications

• Type: FNM series ferrule-style non-rejection fuse
• Voltage Rating: 250V AC
• Current Rating: 10A
• Dimensions: 1-1/2" length x 0.41" diameter
• Standards: CE, CSA Class 1422-01, UL-248-14 Guide JDYX
• Applications: Motor controls, transformers, industrial power distribution
• AIC rating: 200kA@250V
• Connection: Ferrule Non-Rejection
• Barrels: 1
• Class Rating: 1422-01
• Weight: 1 lb

Product Identification

• UPC: 051712521000
• GTIN: 00051712521000
