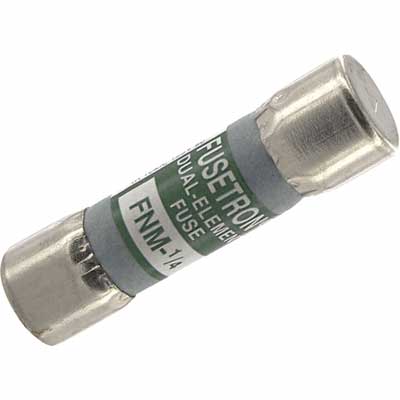

Bussmann FNM-1/4 - FNM Time-Delay Fuse 1A 250V (35kA AIC)

Bussmann
Price
Save $580.62
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Bussmann FNM-1/4 is a low-voltage, time-delay fuse designed for protecting control circuits, transformers, and motors against overloads and short circuits. It features a 1A current rating and a 250V AC voltage rating, with a compact physical profile measuring 0.39 in x 1.44 in x 0.39 in and a 0.41-inch diameter ferrule non-rejection connection. The fuse is constructed to meet CE, CSA Class 1422-01, and UL-248-14 Guide JDYX standards, offering an interrupting rating of 35kA at 250V for reliable protection in industrial panelboards and control applications.

Key Features & Specifications
  • Type: FNM Series, time-delay, low-voltage fuse with 1 barrel
  • Voltage Rating: 250V AC
  • Current Rating: 1A
  • Dimensions: 0.39 in x 1.44 in x 0.39 in (L/D x H x W)
  • Standards: CE, CSA Class 1422-01, UL-248-14 Guide JDYX
  • Applications: Protection for control circuits, transformers, and motors
  • Class Rating: 1422-01
  • AIC rating: 35kA@250V
  • Connection: Ferrule Non-Rejection
  • Diameter: 0.41 in
  • Weight: 0.2 lb
  • Country of Origin: Mexico


Product Identification
  • UPC: 051712520072
  • GTIN: 00051712520072
