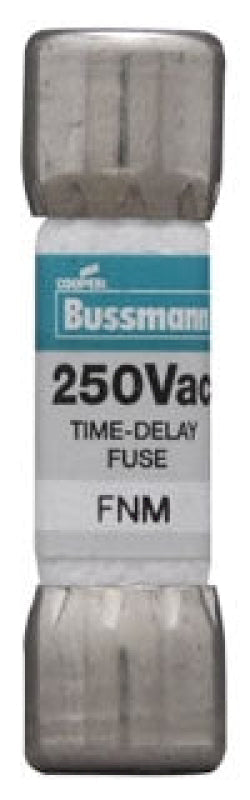

Bussmannn FNM-1/2 - Low Voltage Fuse 1A (35kA@250V Interrupt Rating)

Bussmannn FNM-1/2 is a low-voltage fuse designed for circuit protection in industrial and commercial applications. It features a 250V AC rating with a 1A current capacity and a high interrupting rating of 35kA@250V for reliable overload protection. The fuse has a compact ferrule non-rejection design with a 0.41-inch diameter and 1-1/2-inch length, constructed to meet UL-248-14 Guide JDYX and CSA Class 1422-01 standards. Certified for CE compliance, this fuse is commonly used in control panels, transformers, and motor circuits where precise current protection is required.

Key Features & Specifications

• Type: FNM series ferrule non-rejection fuse
• Voltage Rating: 250V AC
• Current Rating: 1A
• Dimensions: 1-1/2 in length, 0.41 in diameter
• Standards: CE, CSA Class 1422-01, UL-248-14 Guide JDYX
• Applications: Industrial control panels, transformers, motor circuits
• Class Rating: 1422-01
• Connection: Ferrule Non-Rejection
• Barrels: 1
• AIC Rating: 35kA@250V
• Weight: 1 lb
• Country of Origin: Mexico

Product Identification

• UPC: 051712520058
• GTIN: 00051712520058
