Bussmann FNA-6/10 - FNA Midget Fuse 6A 250V (10kA AIC)
Bussmann FNA-6/10 - FNA Midget Fuse 6A 250V (10kA AIC)
Bussmann FNA-6/10 - FNA Midget Fuse 6A 250V (10kA AIC)
Bussmann FNA-6/10 - FNA Midget Fuse 6A 250V (10kA AIC)

Bussmann FNA-6/10 - FNA Midget Fuse 6A 250V (10kA AIC)

Bussmann
Price
Save $1,374.16
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

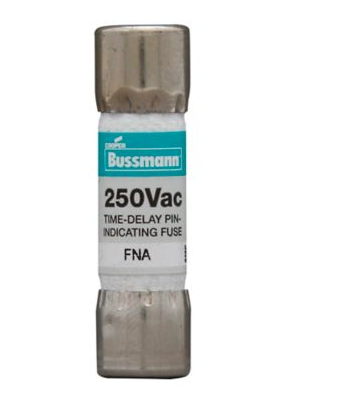

Bussmann FNA-6/10 is a low-voltage fuse designed for overcurrent protection in industrial control circuits and equipment. It features a 6A current rating and a 250V voltage rating, with a 10kA interrupting capacity at that voltage for reliable short-circuit protection. The fuse is constructed as a single-barrel, midget-class device with compact dimensions of 1.5 in x 0.406 in x 0.406 in and a weight of 1.5 lb. It complies with key industry standards, including UL-248-12, CSA Class 1422-01, and CE marking. Typical applications include protecting control transformers, solenoids, and other components within industrial panels and machinery.

Key Features & Specifications
  • Type: FNA Series, Midget Class, Low Voltage Fuse
  • Voltage Rating: 250V
  • Current Rating: 6A
  • Dimensions: 1.5 in (Length) x 0.406 in (Height) x 0.406 in (Width)
  • Standards: CE, CSA Class 1422-01, UL-248-12 Guide JDYX
  • AIC Rating: 10kA @ 250V
  • Diameter: 0.41 in
  • Barrels: 1
  • Weight: 1.5 lb


Product Identification
  • UPC: 05171271341
  • GTIN: 00051712713412
