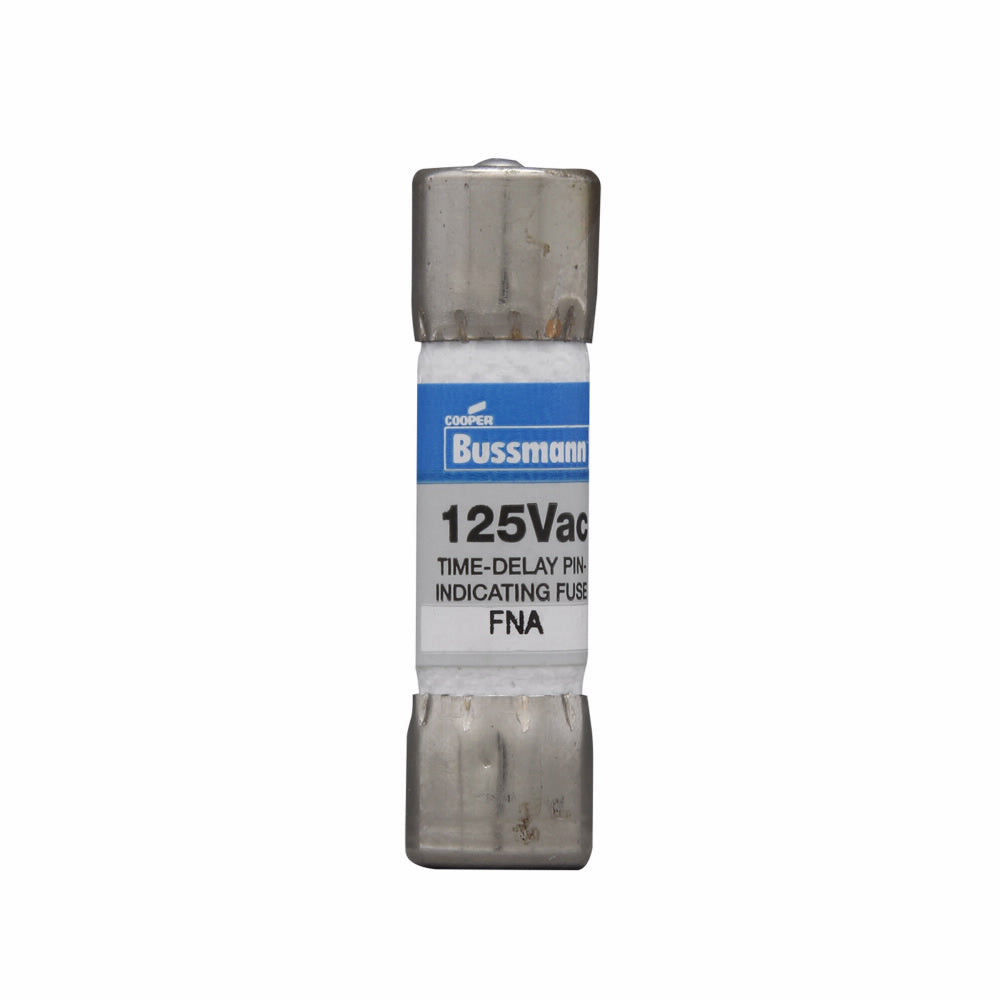

Bussmann FNA-5 - Midget Fuse 5A 125V (10kA AIC Rating)

Bussmann FNA-5 is a low voltage midget fuse designed for circuit protection in industrial and commercial applications. It features a 5A current rating and 125V voltage rating with a 10kA interrupting capacity for reliable overcurrent protection. The fuse measures 1-1/2 inches in length with a 0.41-inch diameter and single-barrel construction, weighing 1.1 lb for compact installation. It complies with CE, CSA Class 1422-01, and UL-248-12 Guide JDYX standards, ensuring safety and reliability. Typical applications include protection of control circuits, transformers, and small motors where space-constrained midget fuse protection is required.

Key Features & Specifications

• Type: Low Voltage Midget Fuse, Single Barrel Construction
• Voltage Rating: 125V AC
• Current Rating: 5A
• Dimensions: 1-1/2 inch Length x 0.41 inch Diameter
• Standards: CE, CSA Class 1422-01, UL-248-12 Guide JDYX
• Applications: Control Circuits, Transformers, Small Motor Protection
• Class Rating: Midget
• Barrels: 1
• AIC Rating: 10kA@125V
• Weight: 1.1 lb
• Family: FNA Series
• Country of Origin: Mexico

Product Identification

• UPC: 051712713580
• GTIN: 00051712713580
