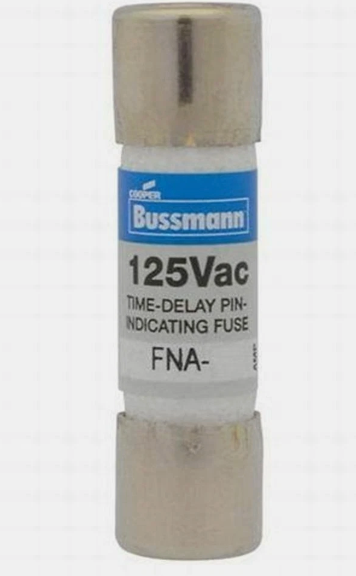

Bussmann FNA-4/10 - Midget Fuse 4A 250V (10kA AIC Rating)

Bussmann FNA-4/10 is a low-voltage midget fuse designed for circuit protection in industrial applications. It features a 4A current rating and 250V voltage rating with a 10kA interrupting capacity at rated voltage. The fuse measures 1-1/2 inches in length with a 0.41-inch diameter and weighs 2.5 lb, constructed as a single-barrel design for reliable performance. It complies with CE, CSA Class 1422-01, and UL-248-12 Guide JDYX standards, ensuring safety and reliability. Typical applications include protection of control circuits, transformers, and other electrical equipment requiring precise overcurrent protection.

Key Features & Specifications

• Type: Low-voltage midget fuse, single-barrel construction
• Voltage Rating: 250V AC
• Current Rating: 4A
• Dimensions: 1-1/2 inches length, 0.41-inch diameter
• Weight: 2.5 lb
• Standards: CE, CSA Class 1422-01, UL-248-12 Guide JDYX
• Applications: Control circuits, transformers, electrical equipment protection
• AIC rating: 10kA@250V
• Class Rating: Midget
• Barrels: 1
• Certification: CE, CSA Class 1422-01, UL-248-12 Guide JDYX

Product Identification

• UPC: 05171271339
• GTIN: 00051712713399
