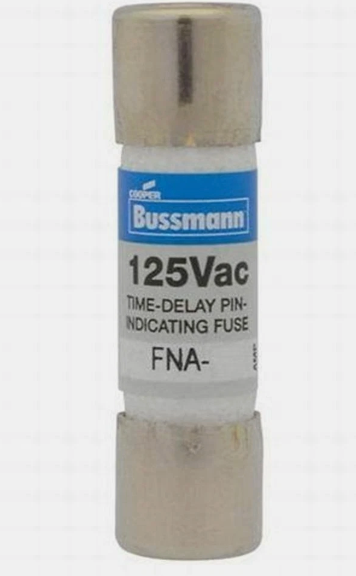

Bussmann FNA-4-1/2 - Midget Fuse 4A 125V (10kA AIC Rating)

Bussmann FNA-4-1/2 is a low voltage fuse designed for circuit protection in industrial applications. It features a 4A current rating and 125V voltage rating with a 10kA interrupting capacity at rated voltage. The fuse has a compact midget class design measuring 1-1/2 inches in length with a 0.41-inch diameter and weighs 1.1 lb. It complies with CE, CSA Class 1422-01, and UL-248-12 Guide JDYX standards for safety and performance. This single-barrel FNA series fuse is commonly used in control circuits, instrumentation, and electronic equipment protection.

Key Features & Specifications

• Type: Low Voltage Fuse, Midget Class, Single Barrel
• Voltage Rating: 125V
• Current Rating: 4A
• Dimensions: 1-1/2 in length x 0.41 in diameter
• Weight: 1.1 lb
• Standards: CE, CSA Class 1422-01, UL-248-12 Guide JDYX
• Applications: Control circuits, instrumentation, electronic equipment protection
• AIC rating: 10kA@125V
• Class Rating: Midget
• Barrels: 1
• Family: FNA Series
• Country of Origin: Mexico

Product Identification

• UPC: 05171271357
• GTIN: 00051712713573
