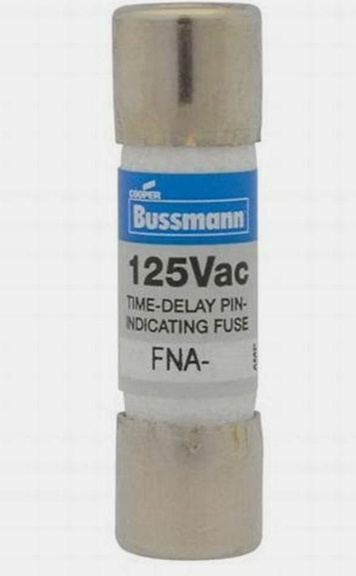

Eaton Bussmann FNA-3/4 - Midget Fuse 3A 250V (10kA AIC)
Eaton Bussmann FNA-3/4 - Midget Fuse 3A 250V (10kA AIC)
Eaton Bussmann FNA-3/4 - Midget Fuse 3A 250V (10kA AIC)
Eaton Bussmann FNA-3/4 - Midget Fuse 3A 250V (10kA AIC)

Eaton Bussmann FNA-3/4 - Midget Fuse 3A 250V (10kA AIC)

Bussmann
Price
Save $6.57
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Eaton Bussmann FNA-3/4 is a low-voltage, midget-class fuse designed for branch circuit protection in industrial control panels and equipment. It provides a 3A current rating and a 250V voltage rating, with an interrupting capacity of 10kA to safely clear high-level faults. The fuse features a compact, single-barrel construction with dimensions of 0.35 in x 1.46 in x 0.35 in and a 0.41-inch diameter, making it suitable for space-constrained applications. It is certified to UL-248-12, CSA Class 1422-01, and CE standards, ensuring reliable performance in protecting motors, transformers, and other critical circuits.

Key Features & Specifications
  • Type: Low Voltage Fuse, FNA Series, Midget Class, Single Barrel
  • Voltage Rating: 250V
  • Current Rating: 3A
  • Dimensions: 0.35 in (L) x 1.46 in (H) x 0.35 in (W)
  • Diameter: 0.41 in
  • Weight: 0.1 lb
  • Standards: CE, CSA Class 1422-01, UL-248-12 Guide JDYX
  • AIC Rating: 10kA @ 250V
  • Class Rating: Midget
  • Barrels: 1
  • Country of Origin: Mexico


Product Identification
  • UPC: 05171215053
  • GTIN: 00051712150538
