Bussmann FNA-25 - Midget Fuse 25A 32VDC (1kA AIC)

Bussmann
Price
Save $99.45
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

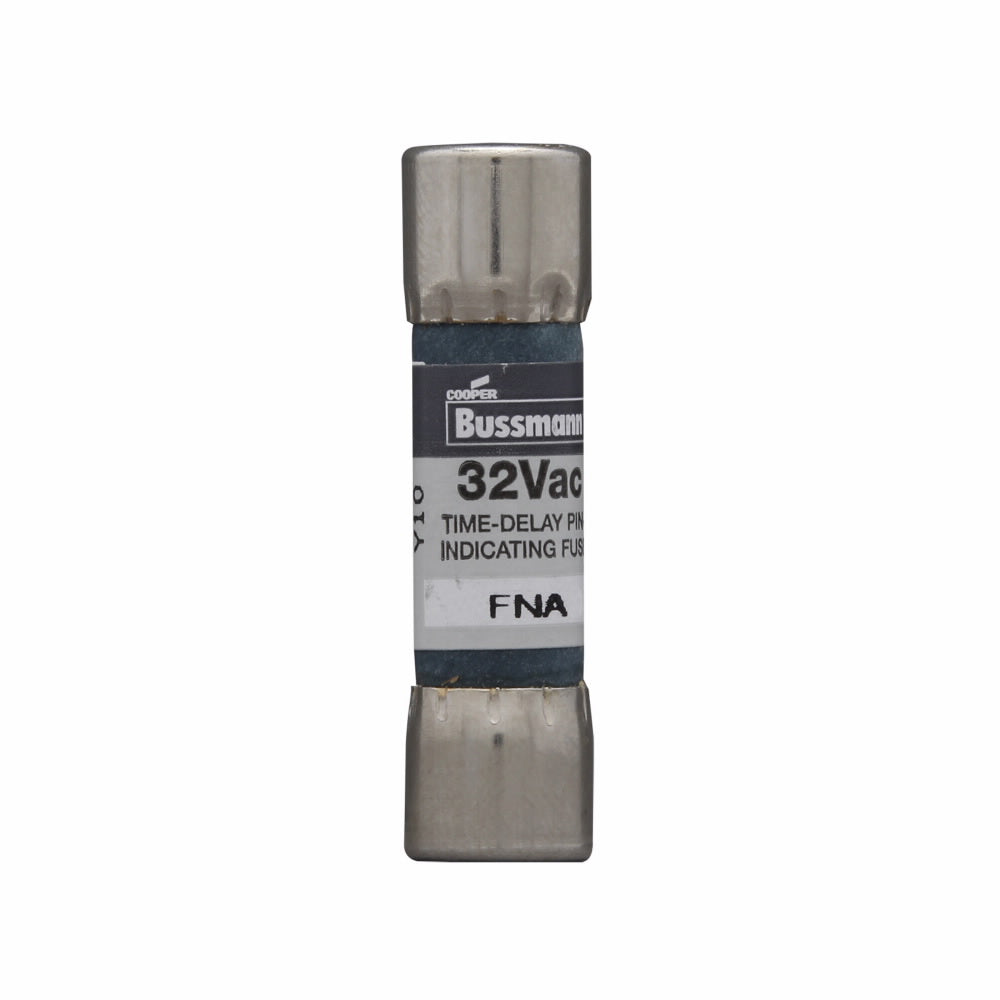

Bussmann FNA-25 is a low-voltage, midget fuse designed for protecting sensitive electronic circuits and components in DC applications up to 32V. It features a 25A current rating and a 1kA interrupting capacity at its rated voltage, housed in a compact, two-barrel construction measuring 1.5 inches in length with a 0.82-inch diameter. This fuse is constructed for reliability and complies with key industry standards including UL 248-12, CSA Class 1422-01, and CE marking. Its typical applications include protection in automotive, telecommunications, and low-voltage DC power distribution systems.

Key Features & Specifications
  • Type: FNA Series, Midget Class, Two-Barrel Cartridge Fuse
  • Voltage Rating: 32V DC
  • Current Rating: 25A
  • Dimensions: 1.5 in L x 0.406 in H x 0.406 in W (38.1mm x 10.3mm x 10.3mm)
  • Diameter: 0.82 in (20.8mm)
  • Weight: 1.5 lb (0.68 kg)
  • Standards: UL 248-12 (Guide JDYX), CSA Class 1422-01, CE
  • AIC Rating: 1kA @ 32V DC
  • Class Rating: Midget
  • Barrels: 2
  • Country of Origin: Mexico


Product Identification
  • UPC: 051712713689
  • GTIN: 00051712713689
