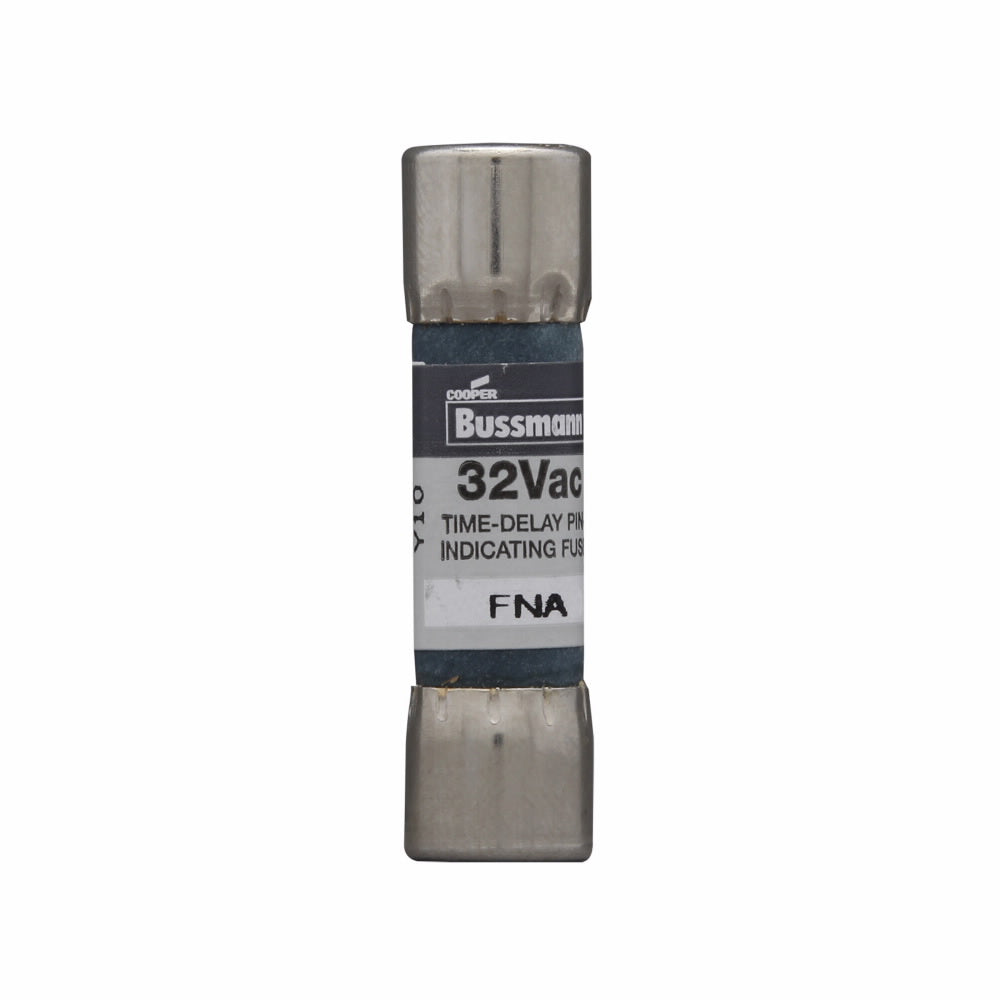

Bussmann FNA-20 - Midget Fuse 20A (32V DC, 1kA AIC)

Bussmann FNA-20 is a midget low-voltage fuse designed for circuit protection in 32V DC applications. It features a 20A current rating and 1kA interrupting capacity at 32V, housed in a compact 1-1/2-inch body with 0.82-inch diameter and dual-barrel construction. The fuse meets CE, CSA Class 1422-01, and UL-248-12 (JDYX) safety standards, with rugged construction suitable for automotive, marine, and industrial power distribution systems.

Key Features & Specifications

• Type: FNA series midget fuse with dual-barrel design
• Voltage Rating: 32V DC
• Current Rating: 20A
• Dimensions: 1-1/2 in length x 0.82 in diameter
• Standards: CE, CSA Class 1422-01, UL-248-12 (JDYX)
• Applications: Automotive, marine, and low-voltage industrial circuits
• Class Rating: Midget
• AIC rating: 1kA@32V
• Weight: 1.3 lb
• Country of Origin: Mexico

Product Identification

• UPC: 051712713672
• GTIN: 00051712713672
