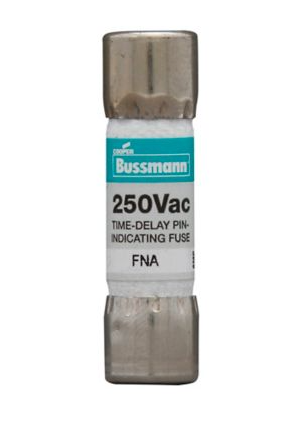

Bussmann FNA-1-6/10 - FNA Midget Fuse 1A 125V (10kA AIC)
Bussmann FNA-1-6/10 - FNA Midget Fuse 1A 125V (10kA AIC)
Bussmann FNA-1-6/10 - FNA Midget Fuse 1A 125V (10kA AIC)
Bussmann FNA-1-6/10 - FNA Midget Fuse 1A 125V (10kA AIC)

Bussmann FNA-1-6/10 - FNA Midget Fuse 1A 125V (10kA AIC)

Bussmann
Price
Save $1,086.07
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Bussmann FNA-1-6/10 is a low-voltage, midget-class fuse designed for precise overcurrent protection in 125V AC/DC circuits. It features a 1A current rating and a high 10kA interrupting capacity, housed in a compact, single-barrel ceramic body measuring 0.35 in x 1.46 in x 0.35 in with a 0.41-inch diameter. The fuse is certified to UL-248-12, CSA Class 1422-01, and CE standards, ensuring reliable performance for protecting control circuits, instrumentation, and small power supplies in industrial and commercial applications.

Key Features & Specifications
  • Type: FNA Series, midget class, single-barrel ceramic body fuse
  • Voltage Rating: 125V AC/DC
  • Current Rating: 1A
  • Dimensions: 0.35 in (L) x 1.46 in (H) x 0.35 in (W)
  • Diameter: 0.41 in
  • Weight: 0.1 lb
  • Standards: CE, CSA Class 1422-01, UL-248-12 Guide JDYX
  • AIC Rating: 10kA @ 125V
  • Class Rating: Midget
  • Barrels: 1
  • Country of Origin: Mexico


Product Identification
  • UPC: 05171271347
  • GTIN: 00051712713474
