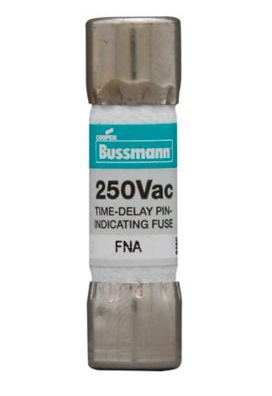

Bussmann FNA-1-4/10 - Midget Fuse 1A 125V (10kA AIC)
Bussmann FNA-1-4/10 - Midget Fuse 1A 125V (10kA AIC)
Bussmann FNA-1-4/10 - Midget Fuse 1A 125V (10kA AIC)
Bussmann FNA-1-4/10 - Midget Fuse 1A 125V (10kA AIC)
Bussmann FNA-1-4/10 - Midget Fuse 1A 125V (10kA AIC)
Bussmann FNA-1-4/10 - Midget Fuse 1A 125V (10kA AIC)

Bussmann FNA-1-4/10 - Midget Fuse 1A 125V (10kA AIC)

Bussmann
Price
Save $14.48
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Bussmann FNA-1-4/10 is a low-voltage fuse designed for branch circuit protection in industrial and commercial electrical systems. It provides a 1A current rating and a 125V voltage rating, engineered to interrupt fault currents up to 10kA. The fuse features a compact, midget-class construction with a single barrel, measuring 0.35 in x 1.46 in x 0.35 in and a 0.41-inch diameter. It is certified to UL-248-12, CSA Class 1422-01, and CE standards, ensuring reliable performance in control circuits, appliances, and supplementary protection applications.

Key Features & Specifications
  • Type: FNA Series, Midget Class, Single Barrel Fuse
  • Voltage Rating: 125V
  • Current Rating: 1A
  • Dimensions: 0.35 in (L) x 1.46 in (H) x 0.35 in (W)
  • Diameter: 0.41 in
  • Weight: 0.1 lb
  • Standards: CE, CSA Class 1422-01, UL-248-12 Guide JDYX
  • AIC Rating: 10kA @ 125V
  • Applications: Industrial control circuits, appliance protection, supplementary protection
  • Class Rating: Midget
  • Barrels: 1
  • Country of Origin: Mexico


Product Identification
  • UPC: 051712713467
  • GTIN: 00051712713467
