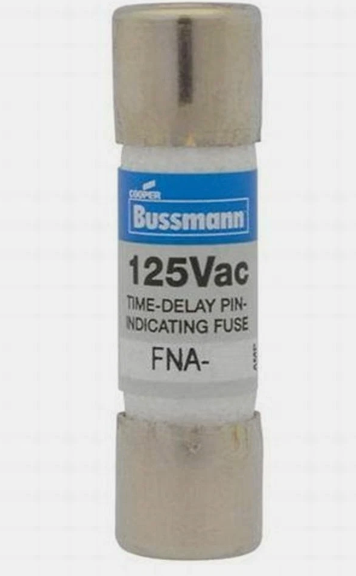

Bussmann FNA-1/10 - Midget Fuse 1A 250V (10kA AIC)

Bussmann
Price
Save $9.60
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Bussmann FNA-1/10 is a low-voltage, midget-class fuse designed for precise overcurrent protection in control circuits and small power supplies. It features a 1A current rating and a 250V voltage rating, with an interrupting capacity of 10kA at 250V to safely clear high-level faults. The fuse is constructed as a single-barrel device with a compact form factor measuring 0.35 in x 1.46 in x 0.35 in and a 0.41-inch diameter, weighing 0.1 lb. It complies with key industry standards including UL-248-12 (Guide JDYX) and CSA Class 1422-01, as well as CE marking. This fuse is typically applied in industrial control panels, instrumentation, and other applications requiring reliable protection for sensitive components.

Key Features & Specifications
  • Type: FNA Series, Midget Class, Single Barrel Fuse
  • Voltage Rating: 250V AC/DC
  • Current Rating: 1A
  • Dimensions: 0.35 in (L) x 1.46 in (H) x 0.35 in (W)
  • Diameter: 0.41 in
  • Weight: 0.1 lb
  • Standards: CE, CSA Class 1422-01, UL-248-12 Guide JDYX
  • AIC Rating: 10kA @ 250V
  • Class Rating: Midget
  • Barrels: 1
  • Family: FNA Series
  • Country of Origin: Mexico


Product Identification
  • UPC: 05171271335
  • GTIN: 00051712713351
