FNA-1-1/2 Bussmann FNA Series Low Voltage Fuse 125V 1A Fuse - Essential Electric Supply
FNA-1-1/2 Bussmann FNA Series Low Voltage Fuse 125V 1A Fuse - Essential Electric Supply

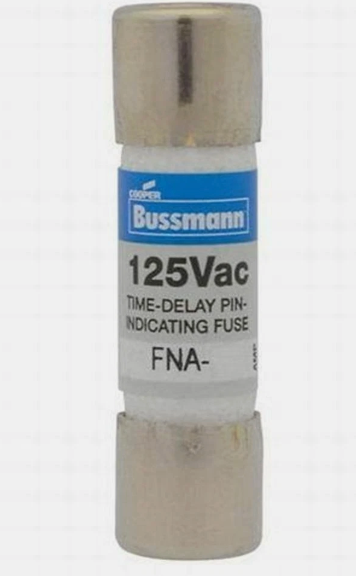

Bussmann FNA-1-1/2 - Midget Fuse 1.5A 125V (10kA AIC)

Bussmann
Price
Save $1,171.18
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Bussmann FNA-1-1/2 is a low-voltage, midget-class fuse designed for precise overcurrent protection in 125V AC/DC circuits. It features a 1.5A current rating and a high 10kA interrupting capacity at its rated voltage, housed in a compact, single-barrel ceramic body measuring 1.46 in. in height with a 0.41 in. diameter. The fuse is constructed for reliability and complies with key industry standards including UL 248-12, CSA Class 1422-01, and CE marking. Its design makes it suitable for protecting control circuits, transformers, and sensitive electronic components in industrial and commercial equipment.

Key Features & Specifications
  • Type: FNA Series, Midget Class, single-barrel ceramic body fuse
  • Voltage Rating: 125V AC/DC
  • Current Rating: 1.5A
  • Dimensions: 1.46 in. H x 0.35 in. W x 0.35 in. D (37.1mm x 8.9mm x 8.9mm)
  • Standards: UL 248-12 (Guide JDYX), CSA Class 1422-01, CE
  • AIC Rating: 10,000 Amps @ 125V
  • Diameter: 0.41 in. (10.4mm)
  • Weight: 0.1 lb
  • Class Rating: Midget
  • Barrels: 1


Product Identification
  • UPC: 051712713702
  • GTIN: 00051712713702
