Littelfuse
Price
Save $51.24
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

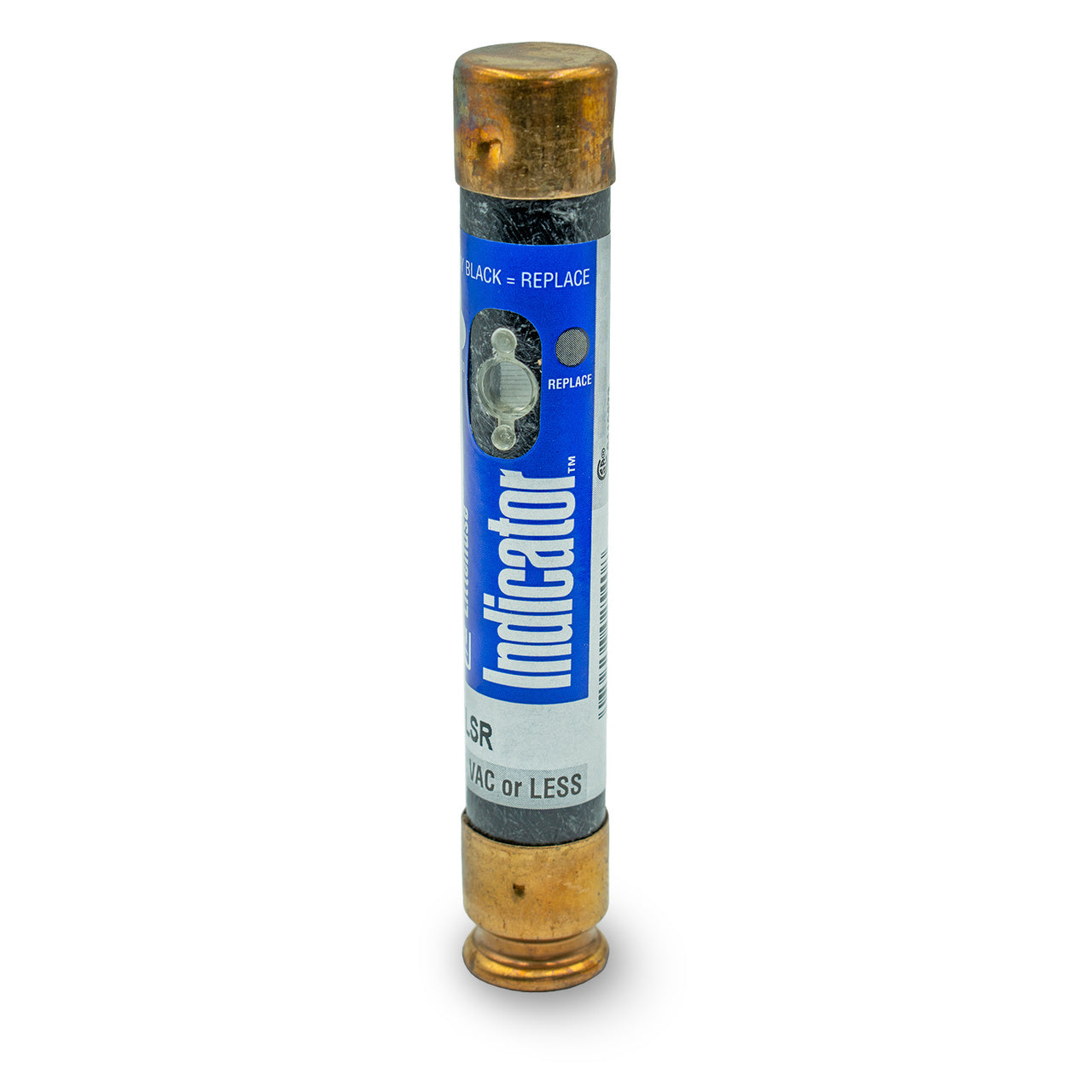

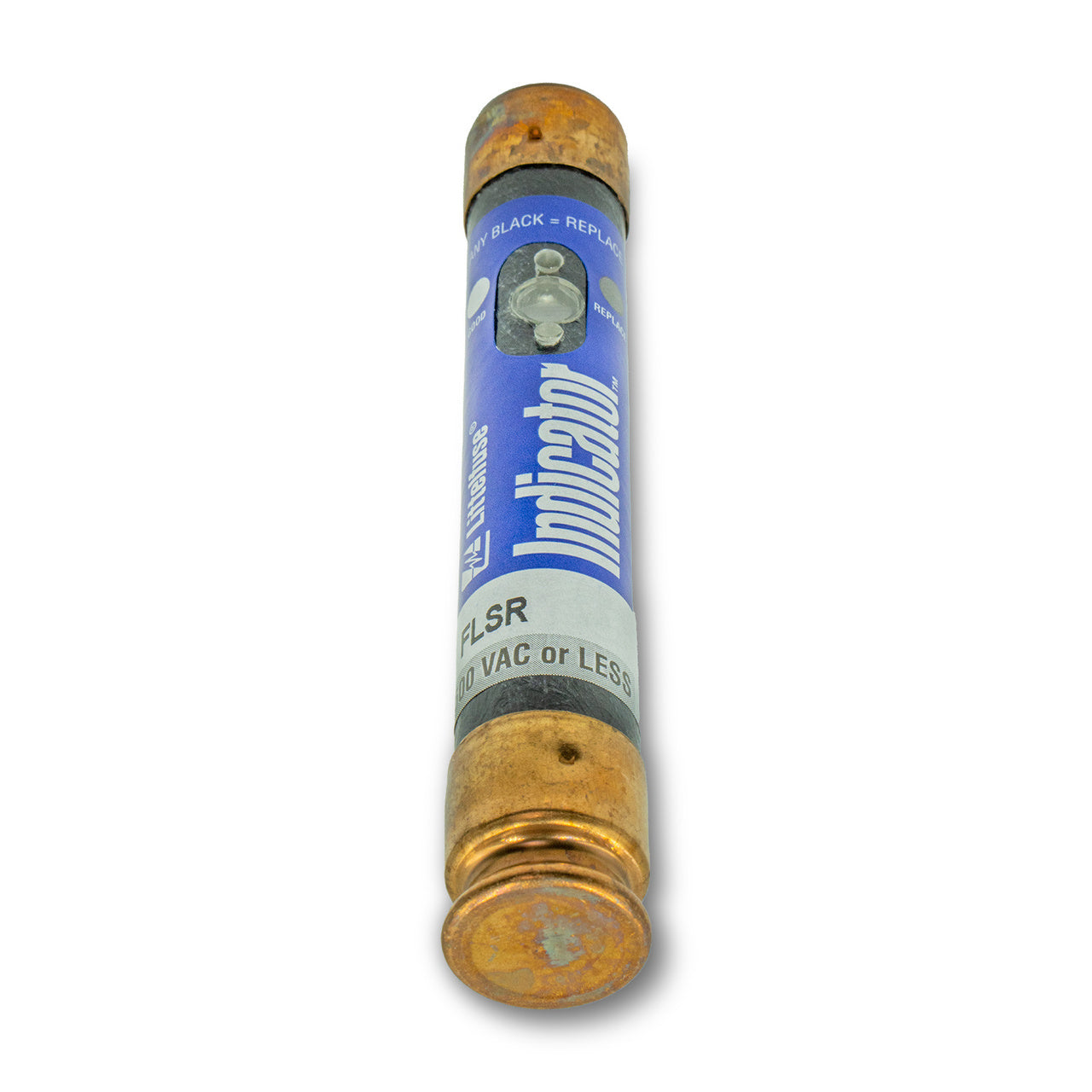

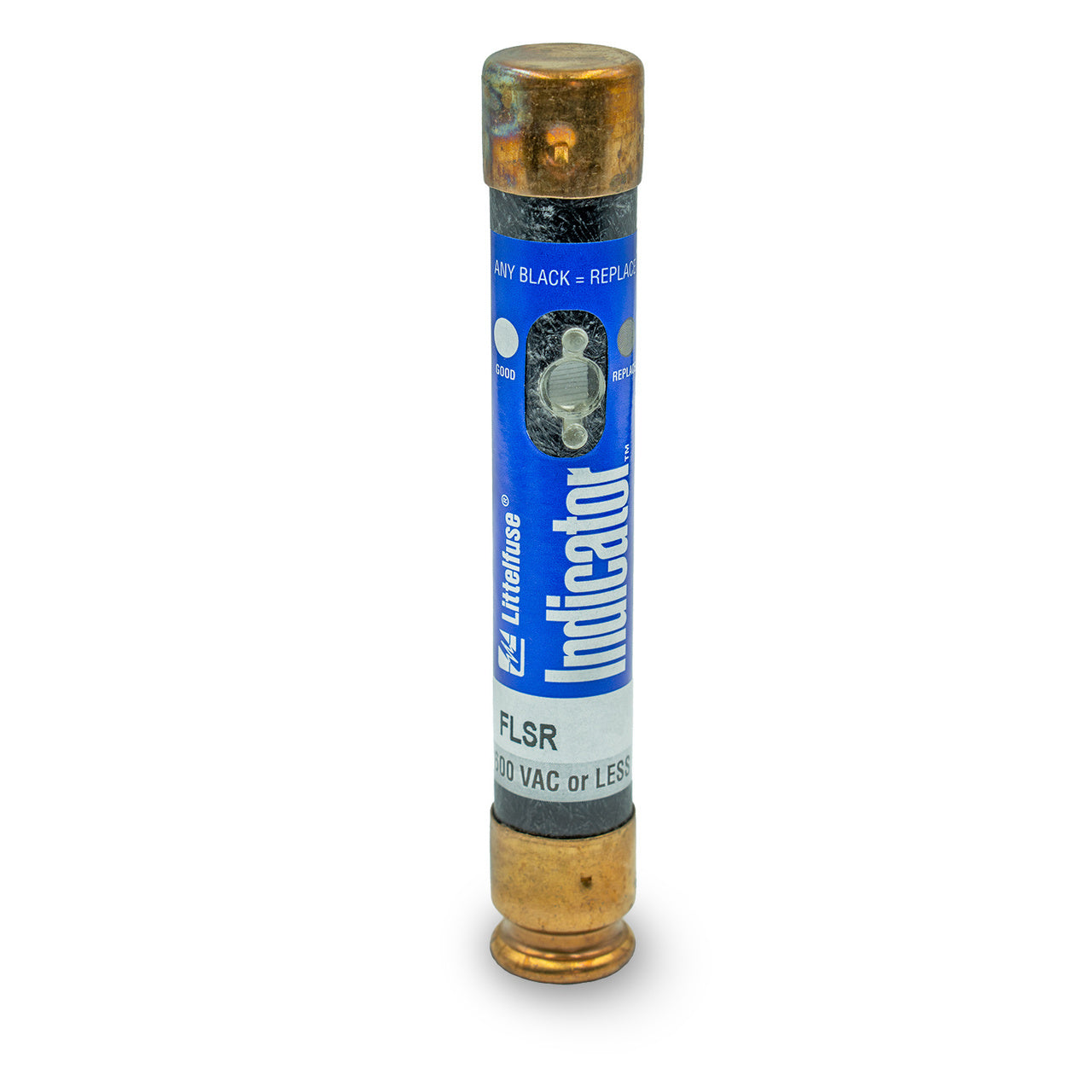

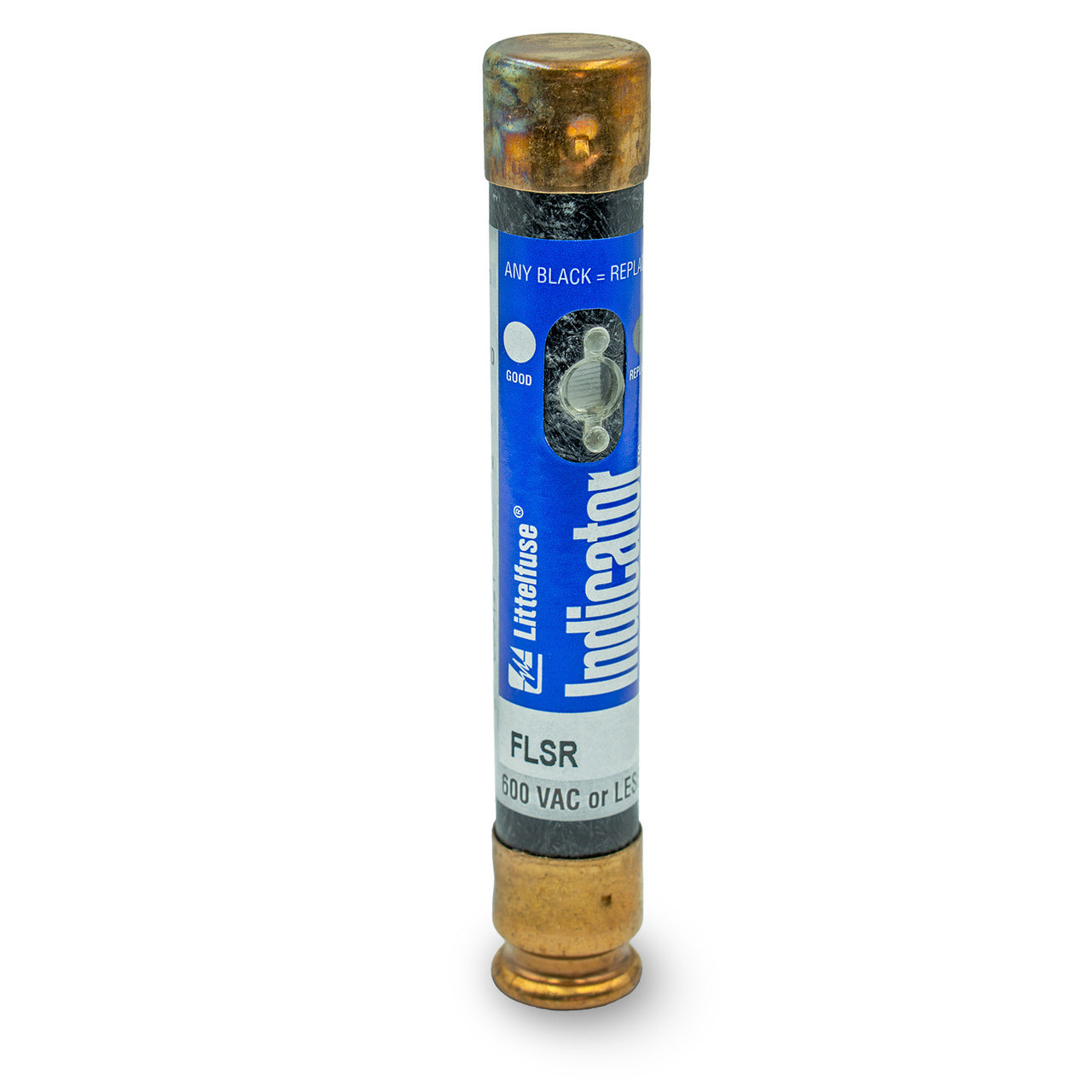

Littelfuse FLSR17.5ID is a UL Class RK5 dual-element time-delay fuse designed for circuit protection in industrial applications, featuring visual indication for fault detection. Rated for 600V AC systems with a 17.5A current capacity, it provides 200kA interrupting capacity (AIC) at rated voltage. The fuse measures 0.81" in diameter with ferrule rejection terminals and a time-delay (TD) characteristic for inrush current tolerance. Certified to CSA, cUL, and UL standards, it meets stringent safety requirements for motor circuits, transformers, and power distribution systems.

Key Features & Specifications
  • Type: Dual-element time-delay fuse with visual indication (FLSR_ID Series)
  • Voltage Rating: 600V AC
  • Current Rating: 17.5A
  • Dimensions: 0.81" diameter x 5" length
  • Standards: CSA, cUL, UL listed
  • Applications: Motor protection, transformers, industrial power distribution
  • Class Rating: RK-5
  • Connection: Ferrule rejection
  • AIC Rating: 200kA@600Vac
  • Weight: 0.18 lb
  • Certification: CSA, cUL, UL


Product Identification
  • UPC: 079458025378
  • GTIN: 00079458025378
