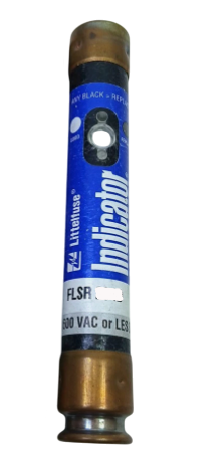

LittleFuse FLSR10 - RK5 Fuse 10A 600VAC (Time-Delay)
LittleFuse FLSR10 - RK5 Fuse 10A 600VAC (Time-Delay)

LittleFuse FLSR10 - RK5 Fuse 10A 600VAC (Time-Delay)

LittleFuse
Price
Save $-12.01
/
Condition
  • Low stock - 9 items left
  • Backordered, shipping soon
Call for Price
LittleFuse FLSR10 is a 10-amp, 600-volt AC/300-volt DC dual-element, time-delay fuse designed for overcurrent protection of motor circuits, transformers, and other inductive loads. It features a 10-amp current rating and a 600-volt AC/300-volt DC voltage rating, with a 200,000-amp interrupting rating (AIC) for high-fault current applications. The fuse measures approximately 1.5 inches in length and 0.41 inches in diameter, constructed with a melamine body and nickel-plated brass end caps for durability. It complies with UL 248-12 and CSA C22.2 No. 248.12 standards, ensuring reliable performance in industrial environments. Typical applications include motor control centers, panelboards, and disconnect switches where time-delay characteristics prevent nuisance opening during inrush currents.

Key Features & Specifications
  • Type: Dual-element, time-delay fuse with melamine body and nickel-plated brass end caps
  • Voltage Rating: 600 VAC / 300 VDC
  • Current Rating: 10 A
  • Dimensions: 1.5 in length x 0.41 in diameter
  • Standards: UL 248-12, CSA C22.2 No. 248.12
  • Applications: Motor circuits, transformers, panelboards, disconnect switches
  • Fuse Class: RK5
  • AIC Rating: 200,000 A
  • Weight: 5.19 lb


Product Identification
  • Manufacturer: LittleFuse
