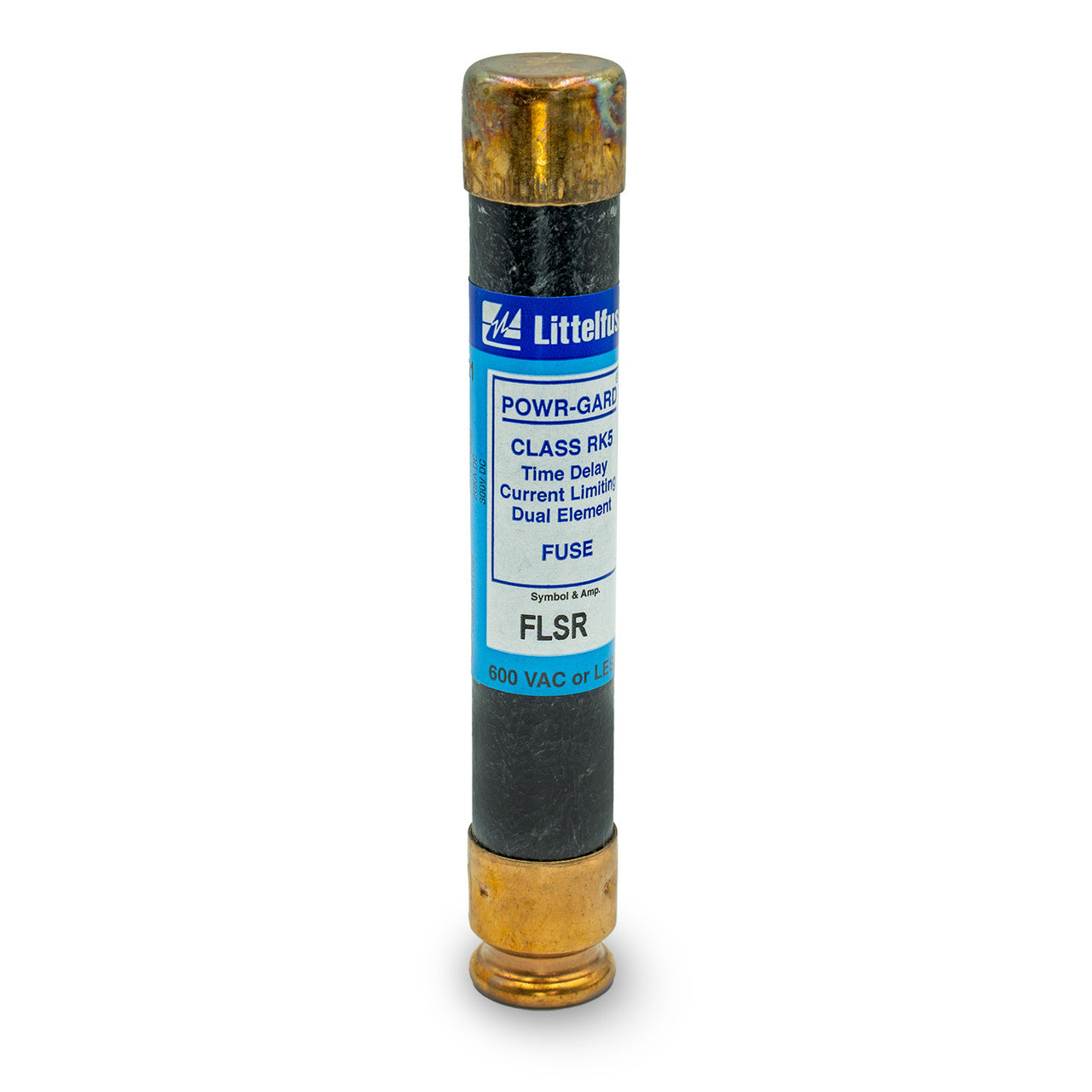

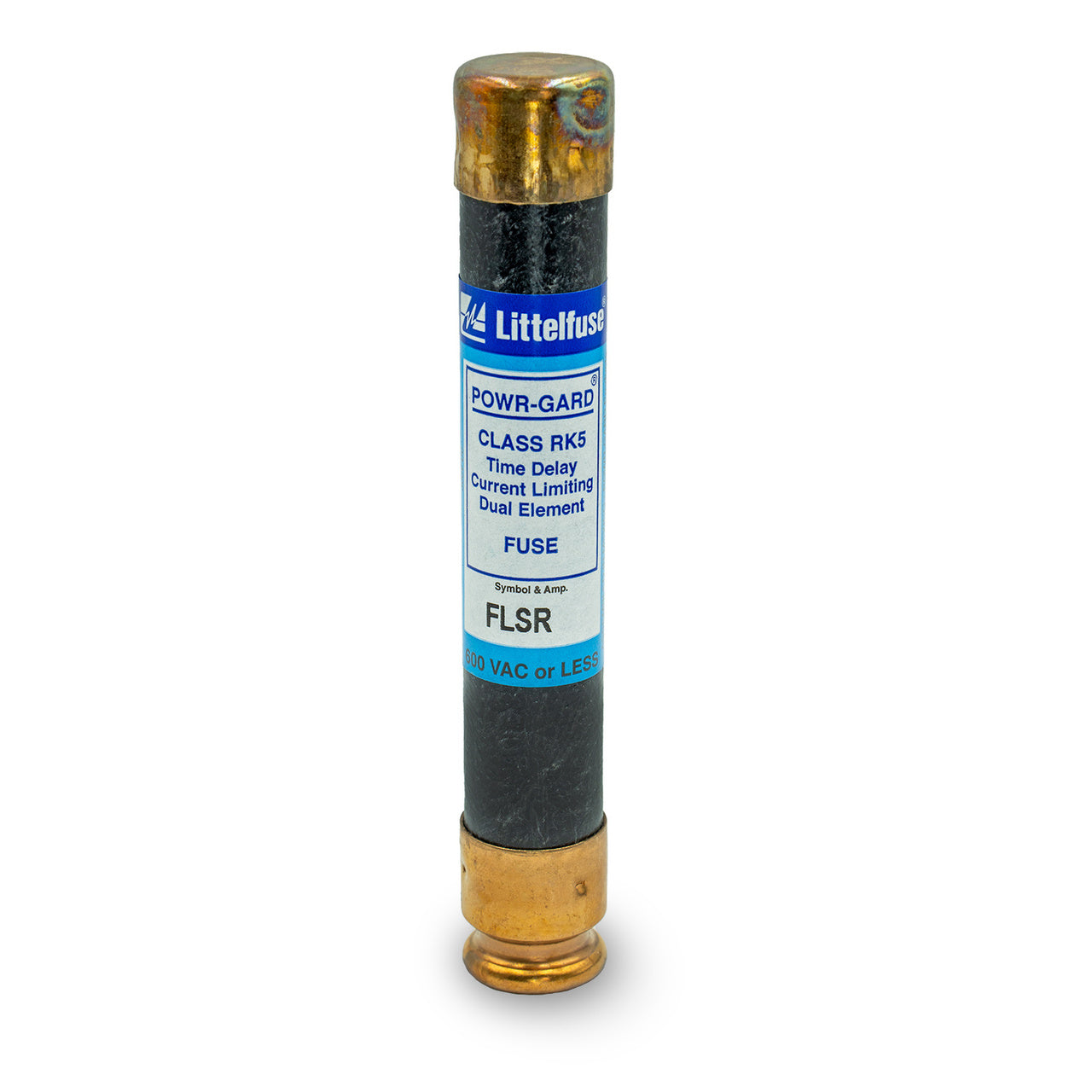

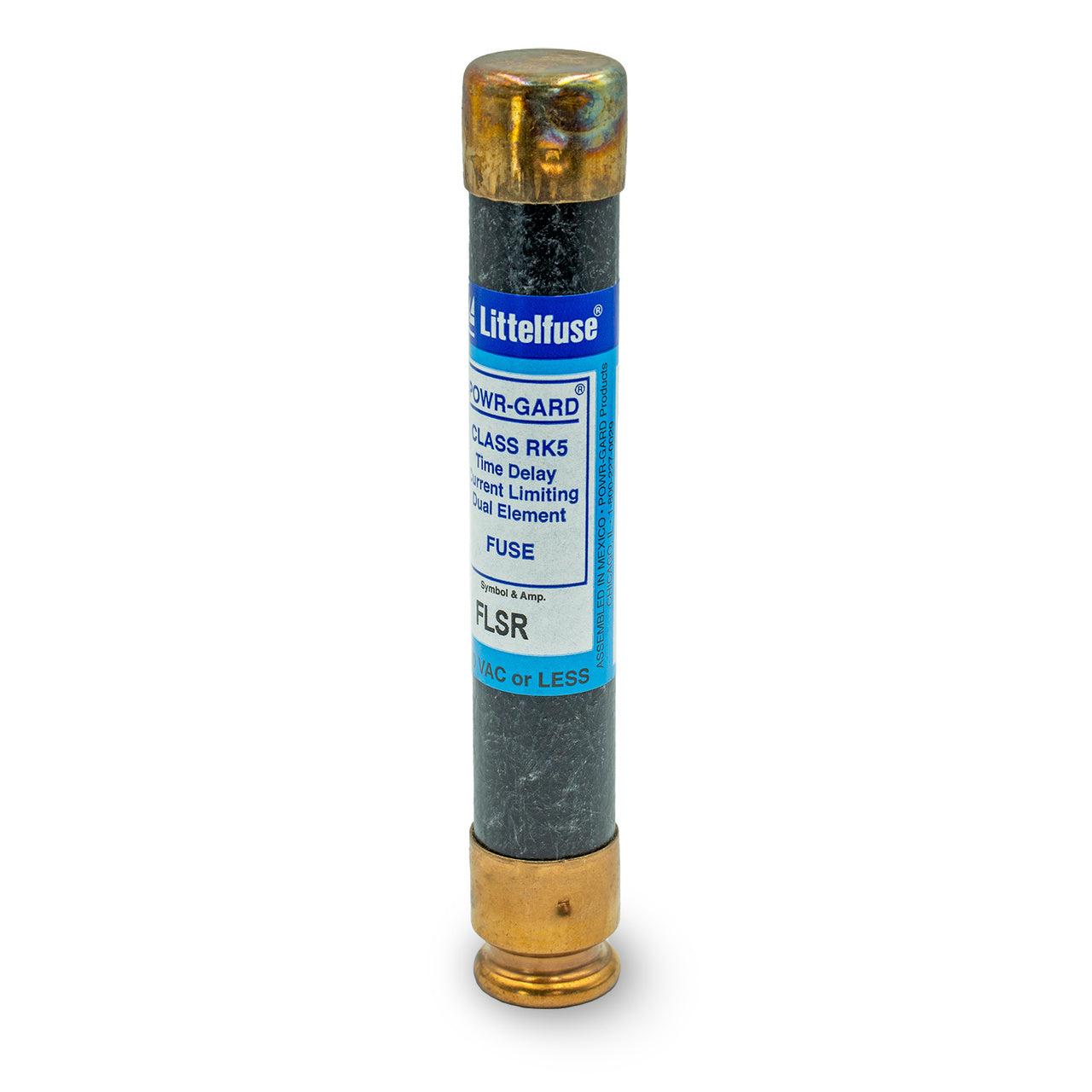

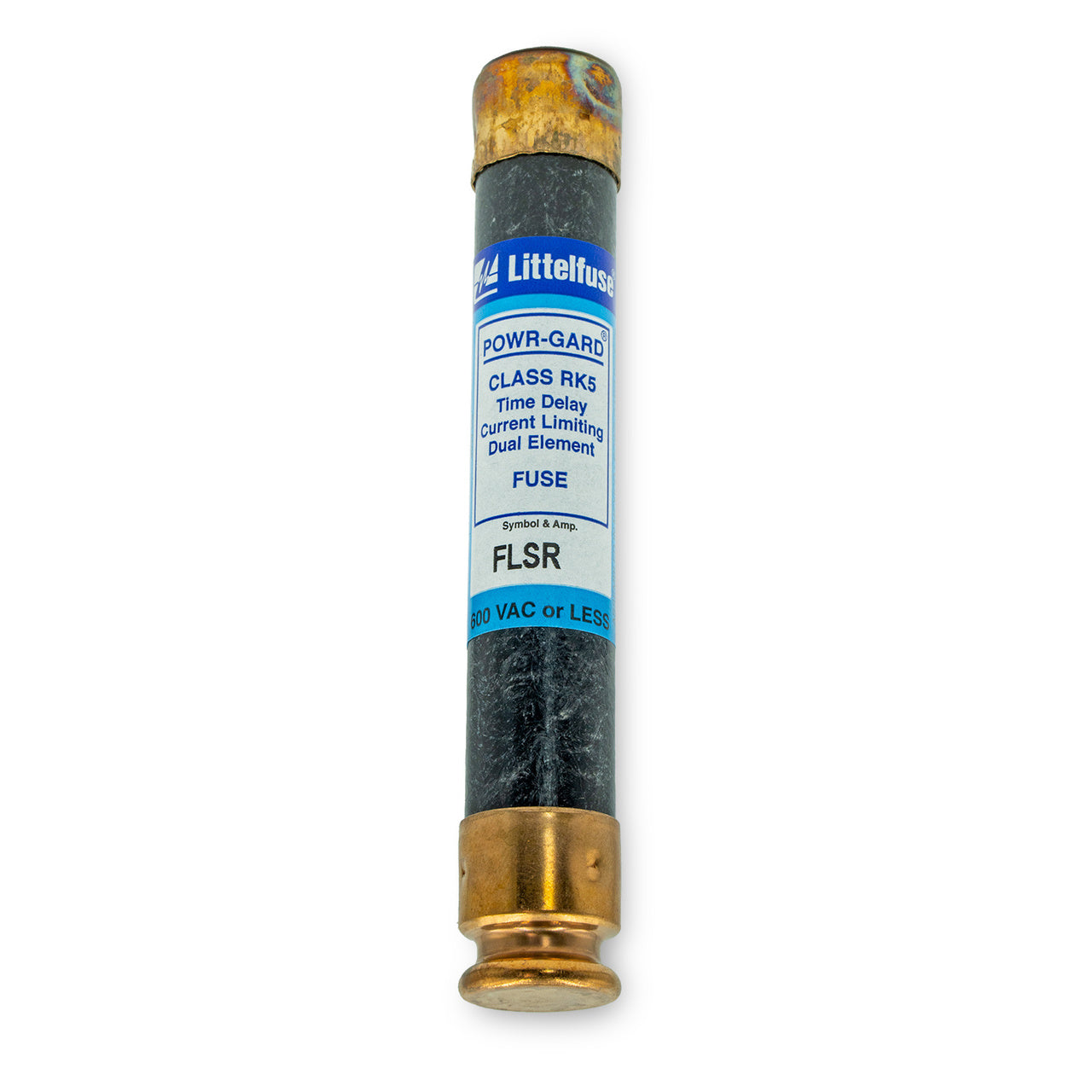

Littelfuse FLSR012 - Class RK5 Time-Delay Fuse 12A 600V (200kA AIC Rating)

Littelfuse FLSR012 is a low voltage fuse designed for industrial circuit protection applications. This UL Class RK5 dual-element time-delay fuse provides reliable overcurrent protection with a 600V voltage rating and 12A current rating. The fuse features a compact single-barrel construction measuring 5 inches in length with a 0.81-inch diameter and weighs 5.19 lb. It complies with multiple industry standards including UL 248-12 Class RK5, CSA Certification, CE, and QPL-W-F-1814. Typical applications include motor circuit protection, transformer protection, and industrial control panel installations where high interrupting capacity is required.

Key Features & Specifications

• Type: UL Class RK5 dual-element time-delay fuse with single-barrel construction
• Voltage Rating: 600V AC
• Current Rating: 12A
• Dimensions: 5 inches length, 0.81 inches diameter
• Standards: UL 248-12 Class RK5, CSA Certification, CE, QPL-W-F-1814
• Applications: Motor circuit protection, transformer protection, industrial control panels
• Class Rating: RK5
• AIC rating: 200kA@600V
• Barrels: 1
• Weight: 5.19 lb
• Country of Origin: Mexico

Product Identification

• UPC: 007945817066
• GTIN: 00079458170665
