Littelfuse FLSR008ID - RK5 Dual-Element Time-Delay Fuse 8A 600V (200kA AIC)
FLSR008ID Littelfuse FLSR_ID Series - UL Class RK5 Dual-Element Time-Delay Fuses with Indication Low Voltage Fuse 600V 8A Fuse - Essential Electric Supply
FLSR008ID Littelfuse FLSR_ID Series - UL Class RK5 Dual-Element Time-Delay Fuses with Indication Low Voltage Fuse 600V 8A Fuse - Essential Electric Supply
FLSR008ID Littelfuse FLSR_ID Series - UL Class RK5 Dual-Element Time-Delay Fuses with Indication Low Voltage Fuse 600V 8A Fuse - Essential Electric Supply
FLSR008ID Littelfuse FLSR_ID Series - UL Class RK5 Dual-Element Time-Delay Fuses with Indication Low Voltage Fuse 600V 8A Fuse - Essential Electric Supply
Littelfuse FLSR008ID - RK5 Dual-Element Time-Delay Fuse 8A 600V (200kA AIC)

Littelfuse FLSR008ID - RK5 Dual-Element Time-Delay Fuse 8A 600V (200kA AIC)

Littelfuse
Price
Save $20.41
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

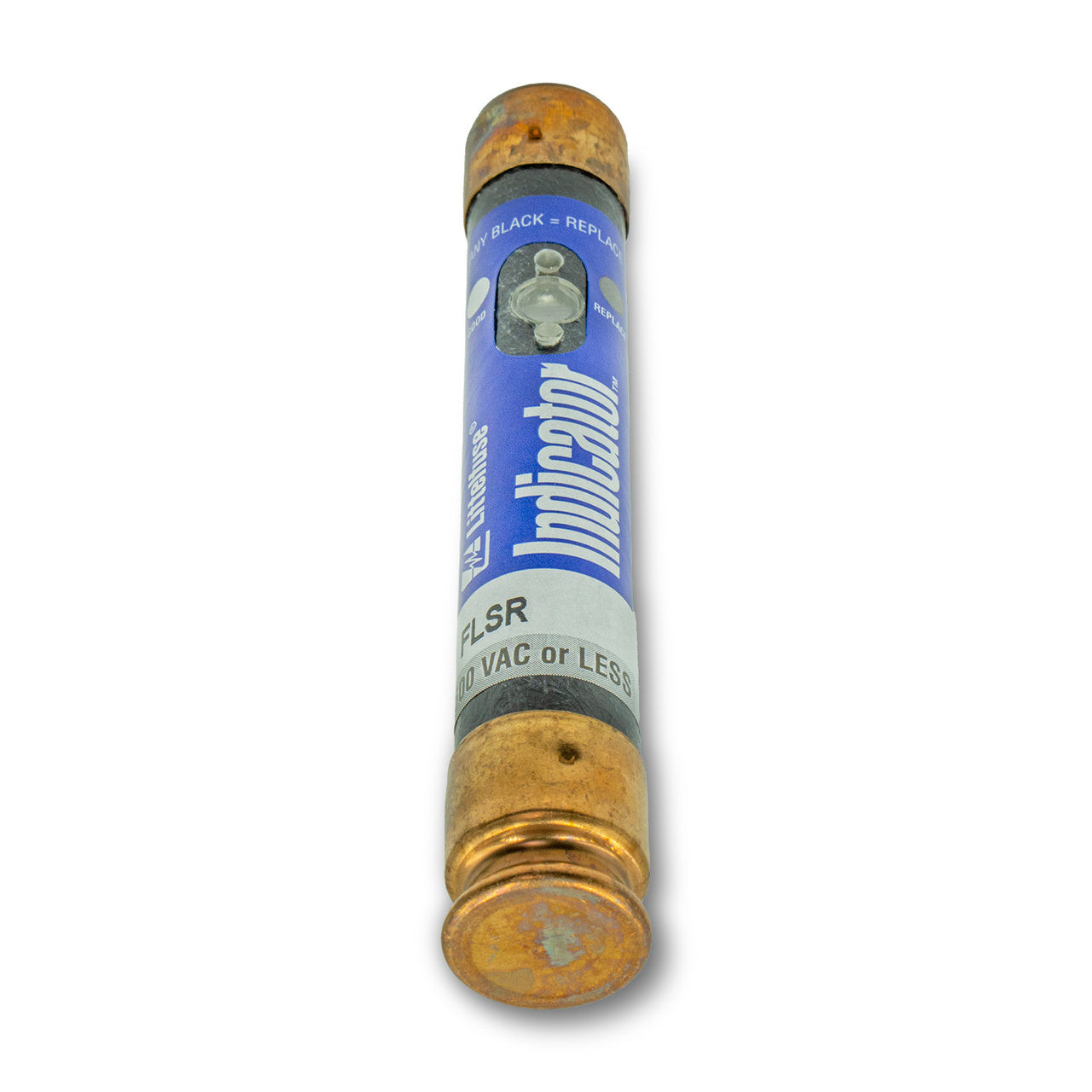

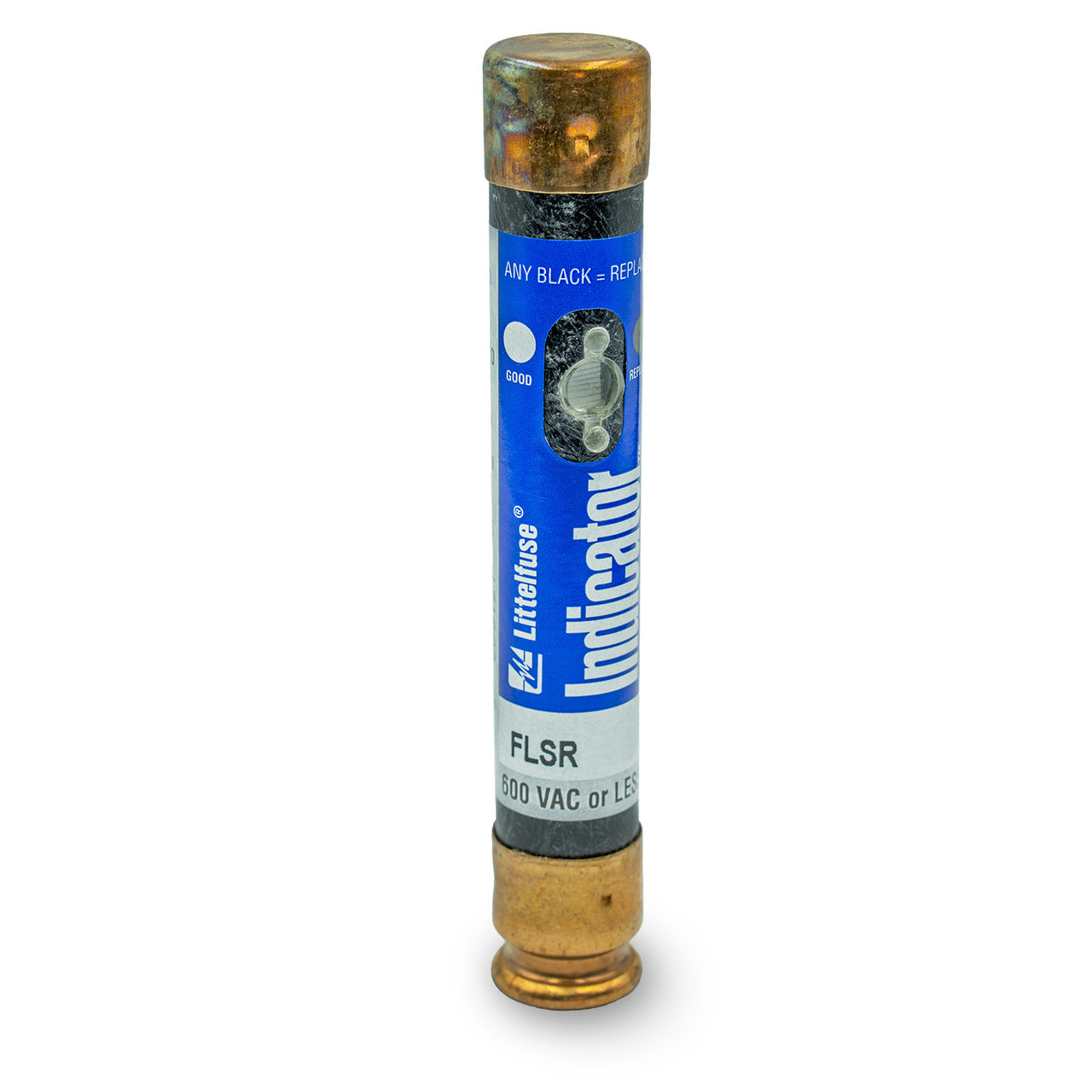

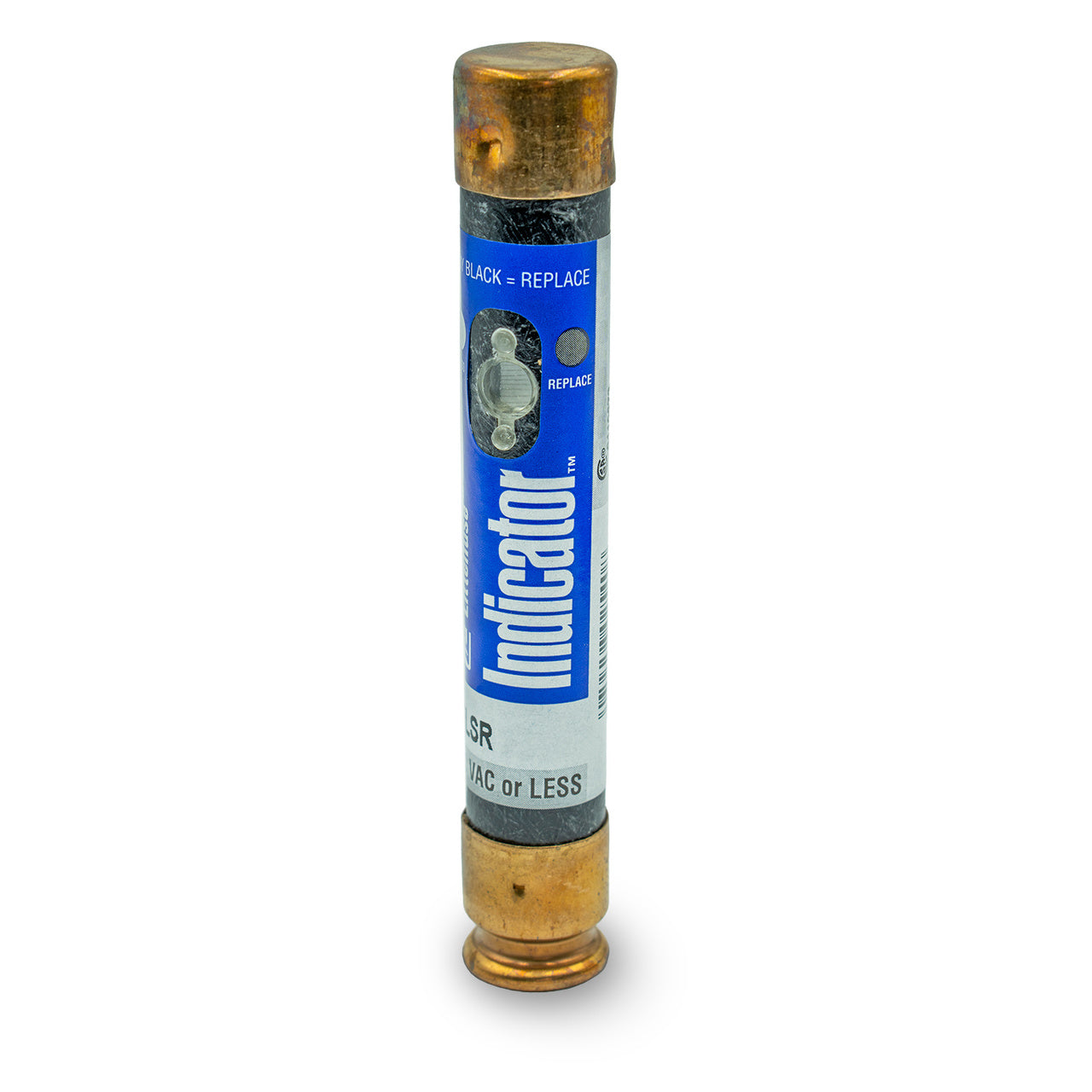

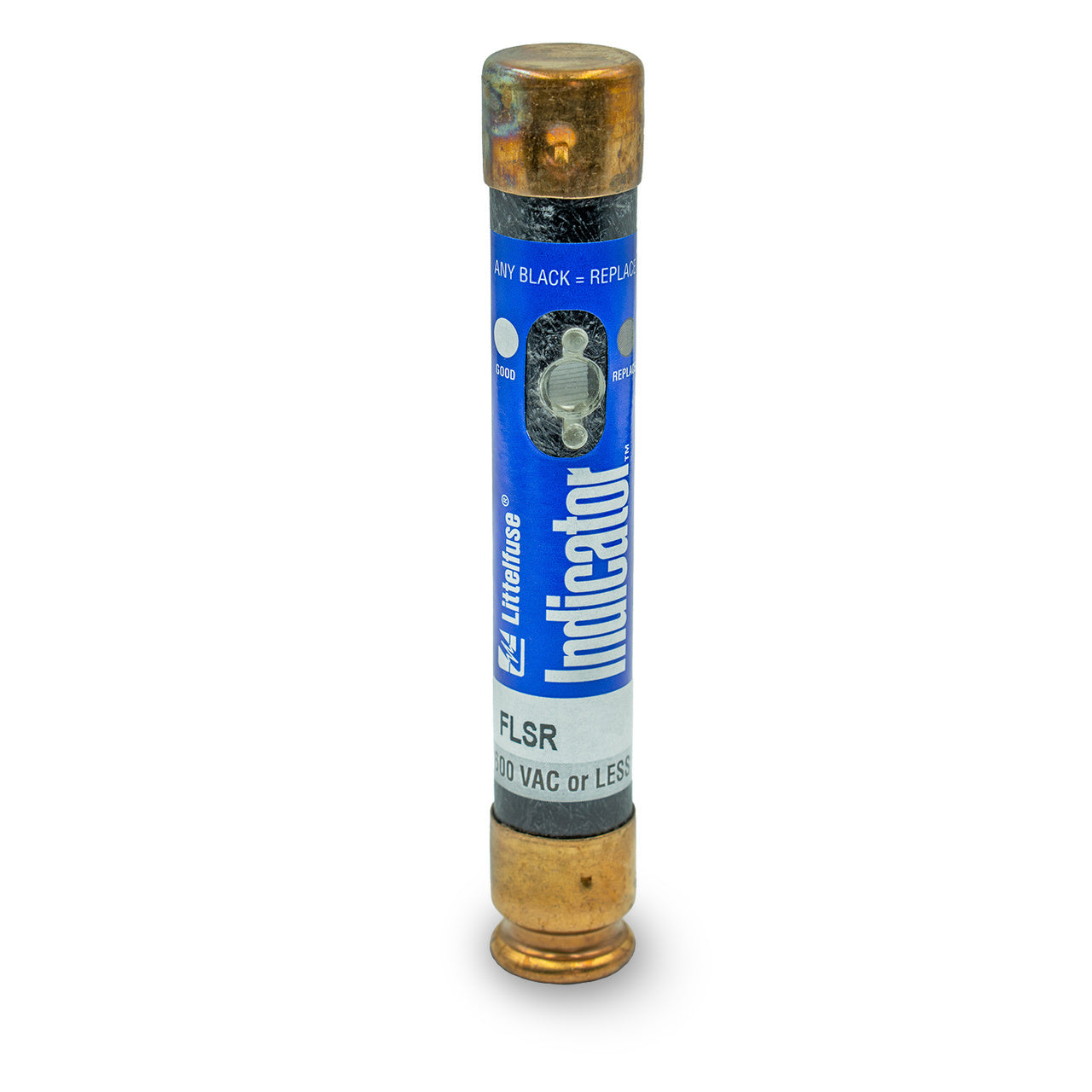

Littelfuse FLSR008ID is a UL Class RK5 dual-element time-delay fuse designed for circuit protection in industrial applications, featuring visual indication for blown fuse detection. It operates at 600V AC with an 8A current rating and offers a high interrupting capacity of 200kA at rated voltage. The fuse features a ferrule connection type with a 0.81-inch diameter cylindrical body and weighs 0.18 lb, constructed for durable performance in demanding environments. Compliant with CSA, cUL, and UL standards, this Mexico-manufactured component meets rigorous safety requirements. Typical applications include motor branch circuits, transformers, and other equipment requiring time-delay protection against overloads and short circuits.

Key Features & Specifications
  • Type: FLSR_ID Series - UL Class RK5 Dual-Element Time-Delay Fuse with Indication
  • Voltage Rating: 600V AC
  • Current Rating: 8A
  • Dimensions: 0.81 in diameter x 5 in length
  • Weight: 0.18 lb
  • Class Rating: RK5
  • Connection: Ferrule
  • Barrels: 1
  • Certification: CSA, cUL, UL
  • AIC Rating: 200kA @ 600V
  • Country of Origin: Mexico


Product Identification
  • UPC: 079458025323
  • GTIN: 00079458025323
