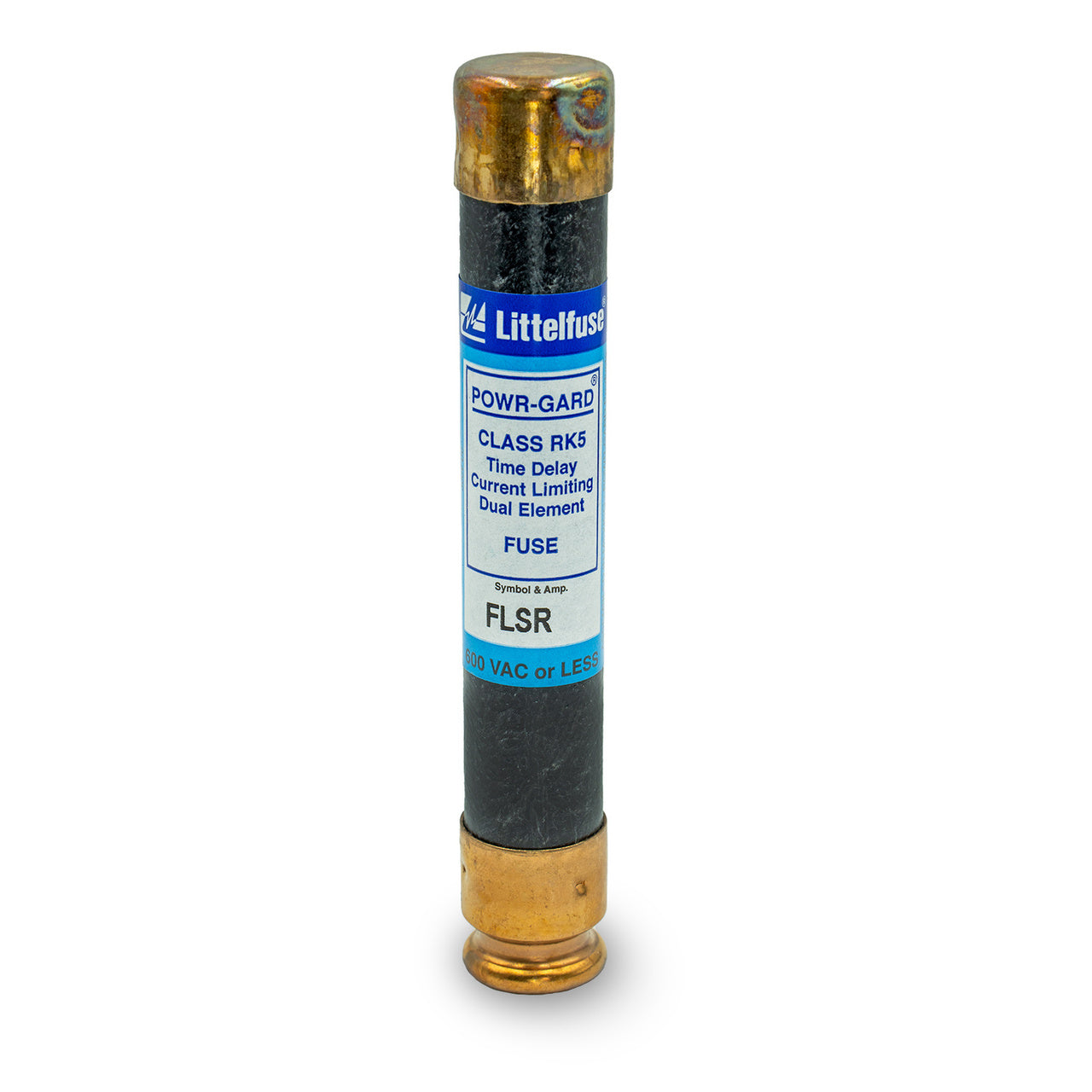

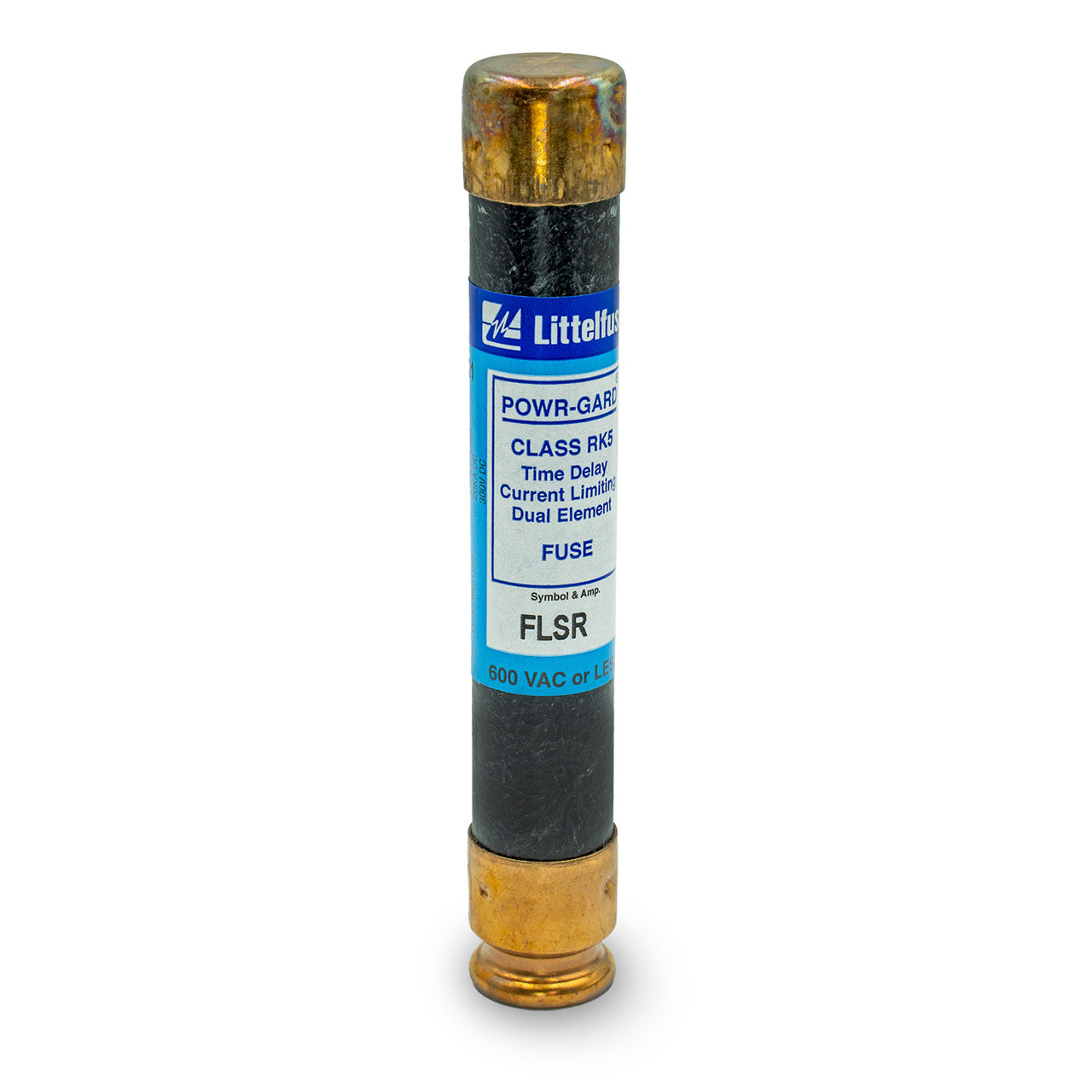

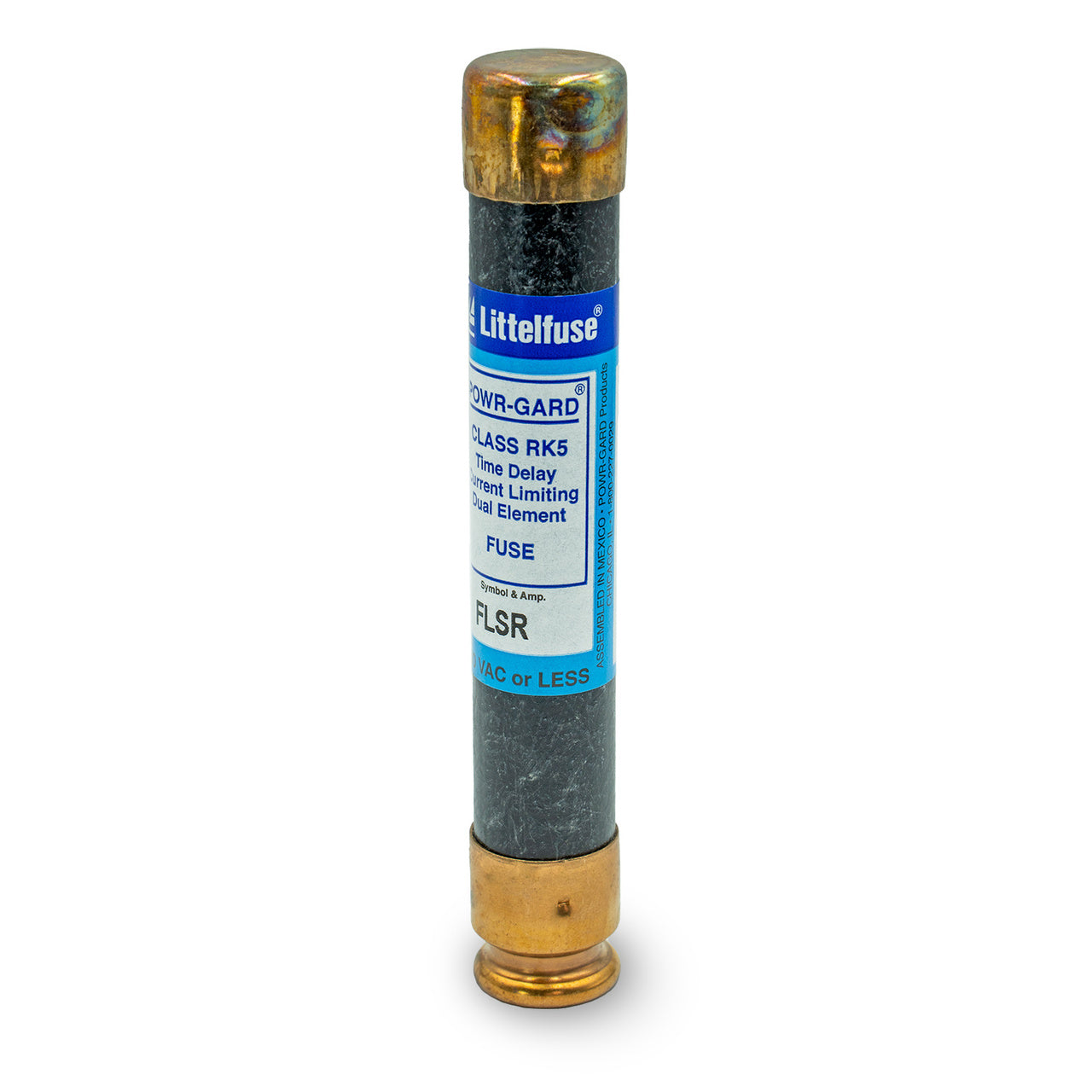

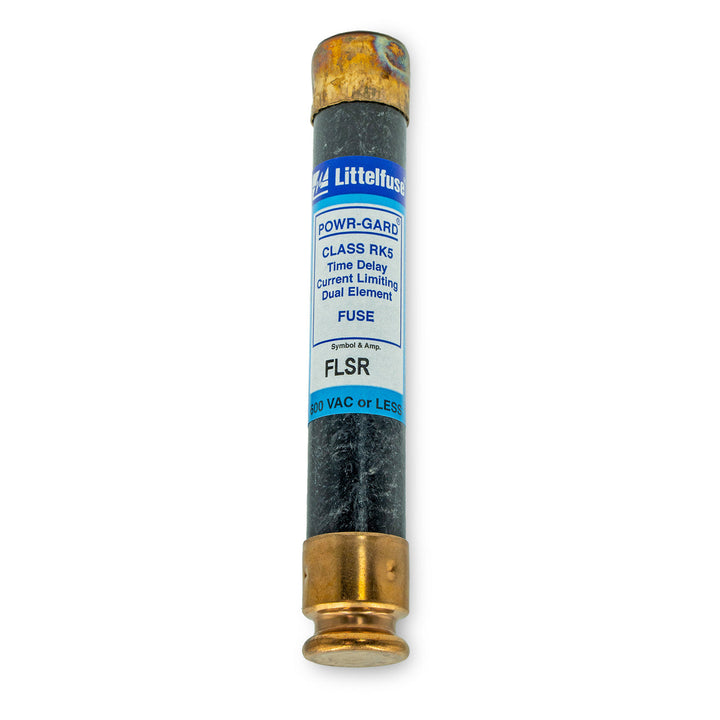

Littelfuse FLSR008 - RK5 Dual-Element Time-Delay Fuse 8A 600V (200kA AIC)

Littelfuse FLSR008 is a UL Class RK5 dual-element time-delay fuse designed for overcurrent protection in low-voltage circuits. It features a 600V AC/DC voltage rating and 8A current rating with a 200kA interrupting capacity at 600V for robust short-circuit protection. The fuse measures 1.06" in diameter with a 5" length and 1.83 lb weight, constructed with a single-barrel design for reliable performance. It meets UL 248-12 Class RK5, CSA, CE, and QPL-W-F-1814 standards for industrial compliance. Typical applications include motor branch circuits, transformers, and power distribution systems requiring time-delay characteristics.

Key Features & Specifications

• Type: UL Class RK5 dual-element time-delay fuse
• Voltage Rating: 600V AC/DC
• Current Rating: 8A
• Dimensions: 1.06" diameter x 5" length
• Weight: 1.83 lb
• Standards: UL 248-12 Class RK5, CSA, CE, QPL-W-F-1814
• Applications: Motor protection, transformers, power distribution
• Class Rating: RK5
• Barrels: 1
• AIC rating: 200kA@600V
• Certification: CE, UL 248-12 Class RK5, CSA Certification, QPL-W-F-1814

Product Identification

• UPC: 07945817063
• GTIN: 00079458170634
