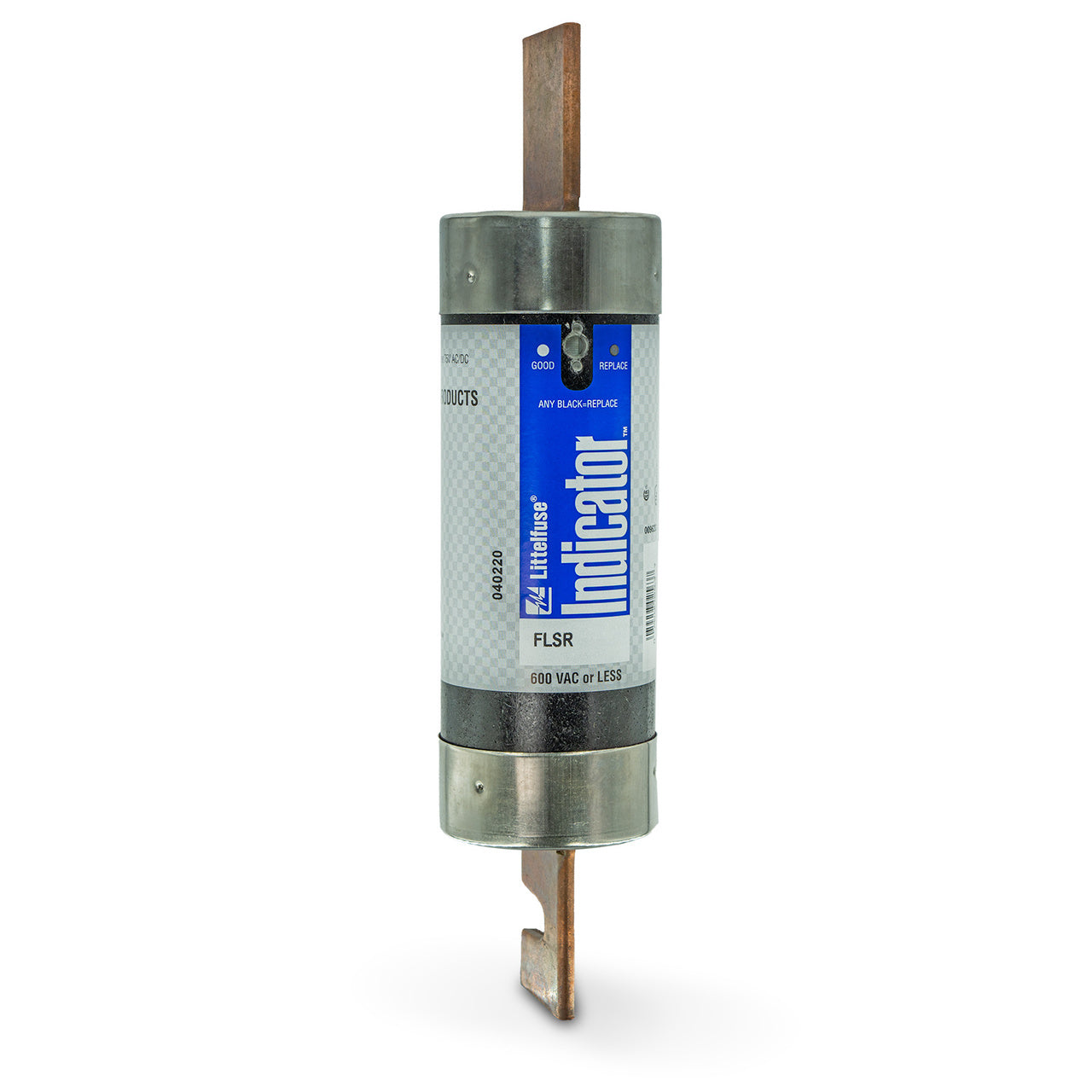

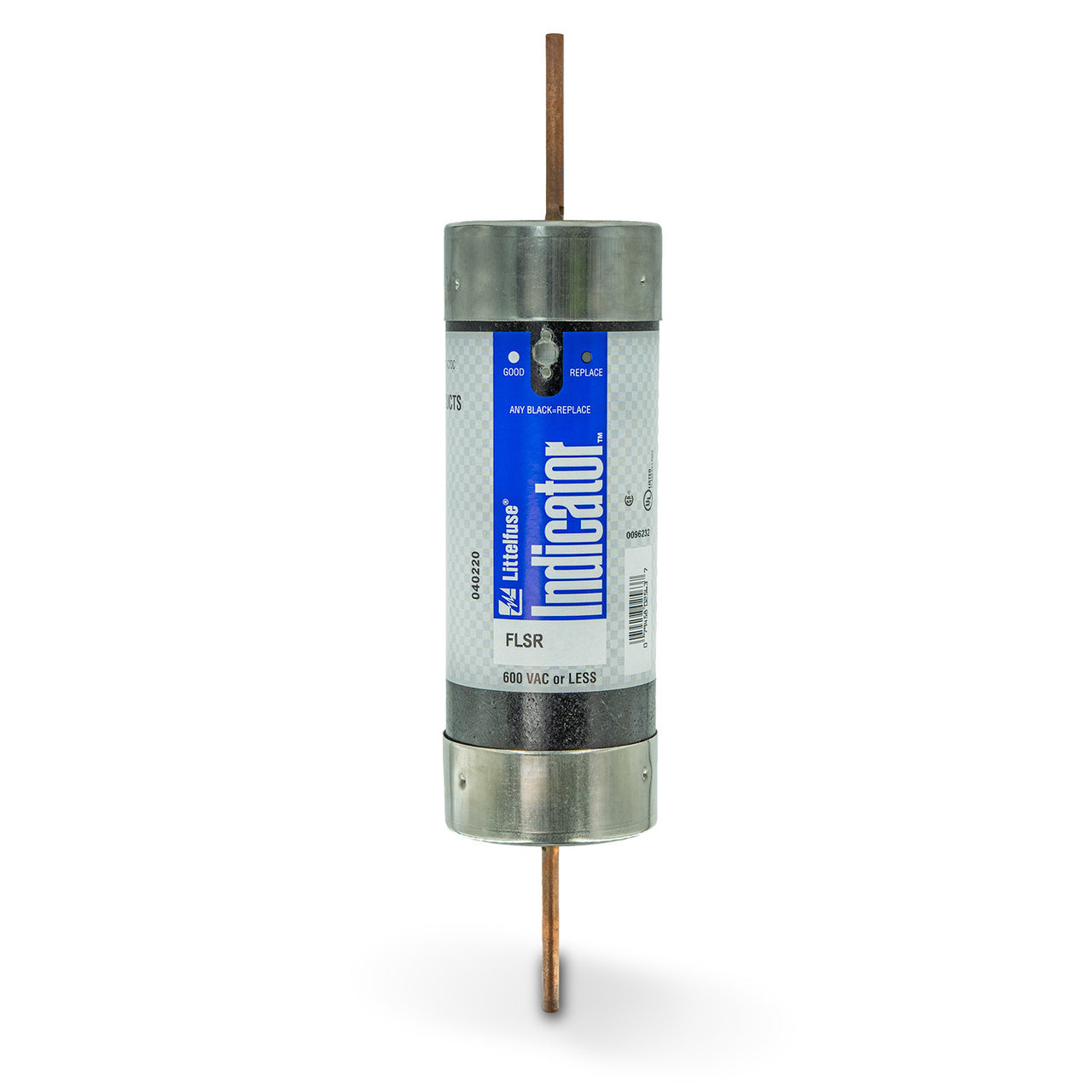

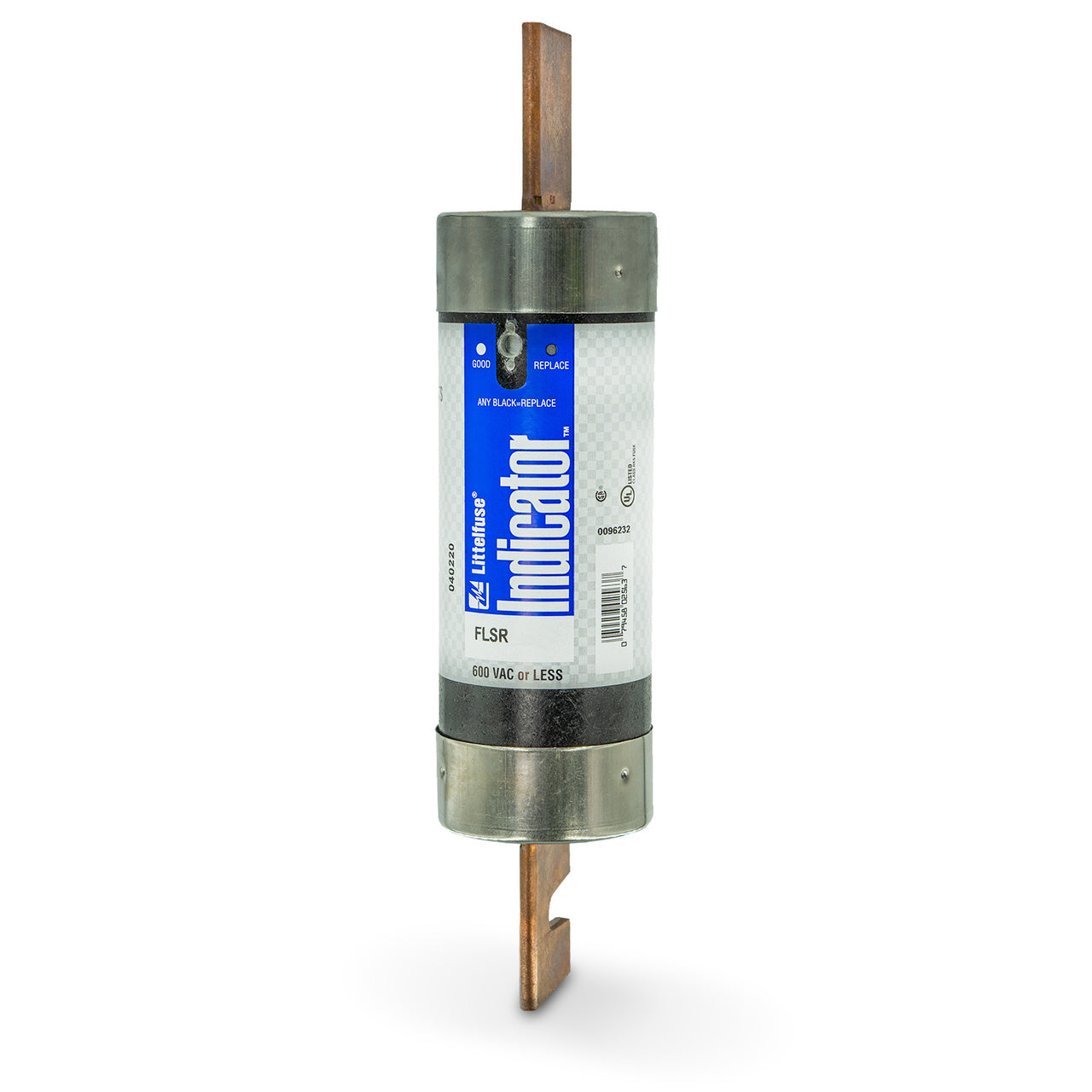

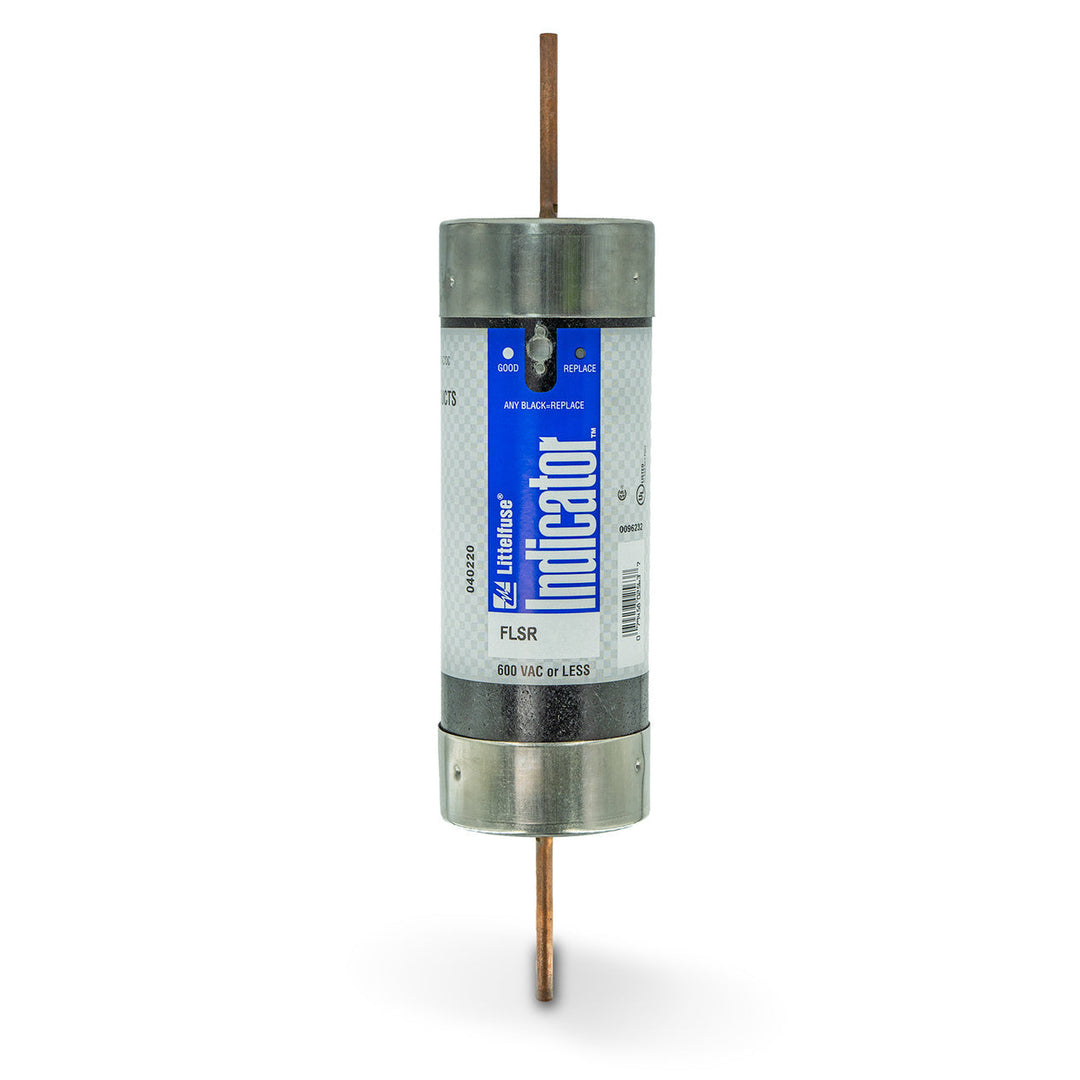

Littelfuse FLSR-.500ID - RK5 Time-Delay Fuse 0.5A 600V (200kA AIC)

Littelfuse FLSR-.500ID is a time-delay fuse designed for comprehensive circuit protection in industrial power distribution systems. This 0.5A rated fuse operates at 600V AC/DC with a high 200kA interrupting rating, providing reliable overload and short-circuit protection. The fuse features a compact 0.81-inch diameter ferrule connection design with single-barrel construction and RK5 classification for time-delay characteristics. It complies with industry standards for low-voltage fuses, ensuring safe operation in demanding environments. Typical applications include motor branch circuits, transformers, and industrial control panels where coordinated protection is required.

Key Features & Specifications

• Type: FLSR_ID time-delay fuse with ferrule connection, single barrel construction
• Voltage Rating: 600V AC/DC
• Current Rating: 0.5A
• Dimensions: 0.81-inch diameter
• Standards: UL/CSA certified, RK5 class rating
• Applications: Motor circuits, transformers, industrial control panels, power distribution systems
• AIC rating: 200kA@600V
• Class Rating: RK5
• Connection: Ferrule
• Barrels: 1
• Weight: 5.19 lb

Product Identification

• UPC: 07945802507
• GTIN: 00079458025071
