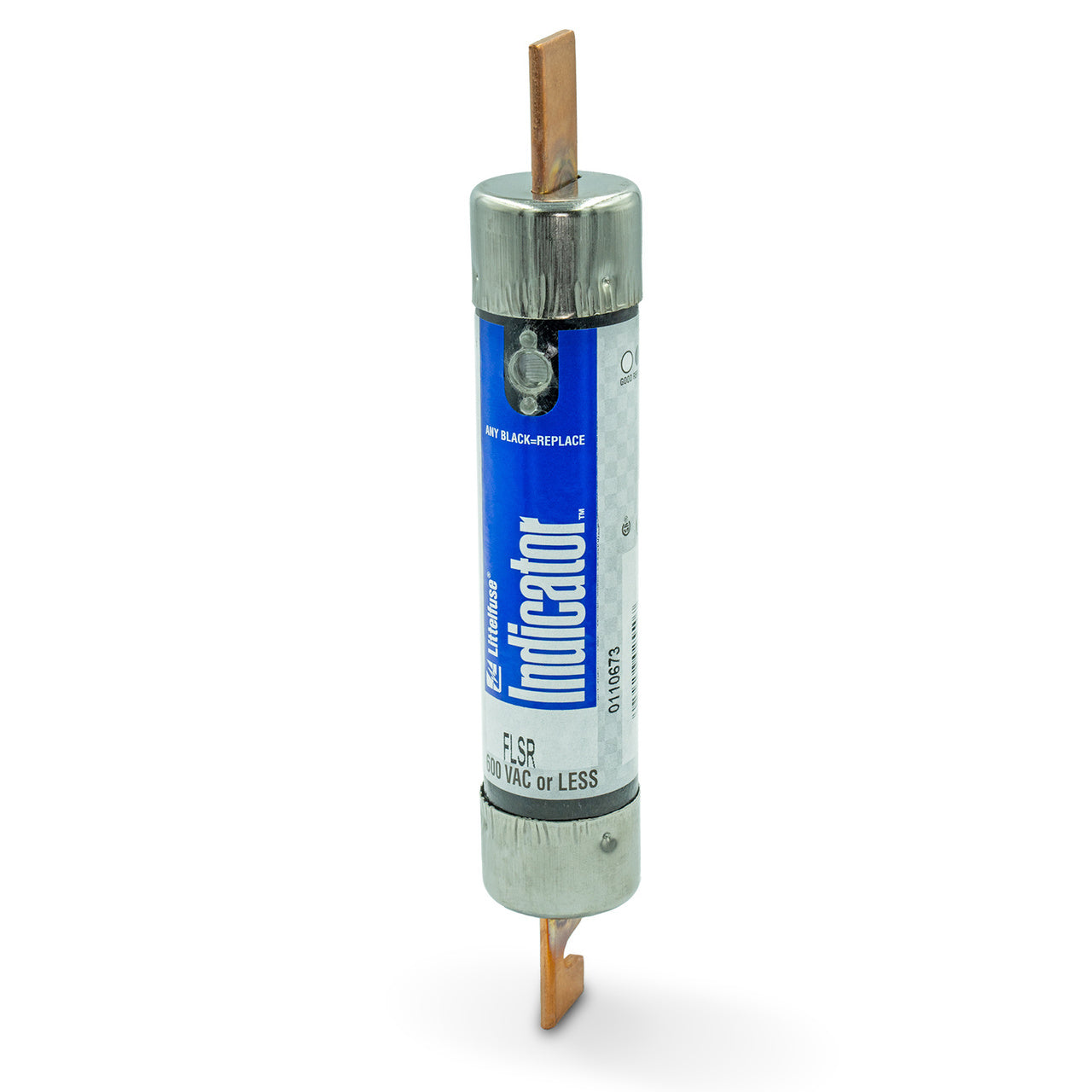

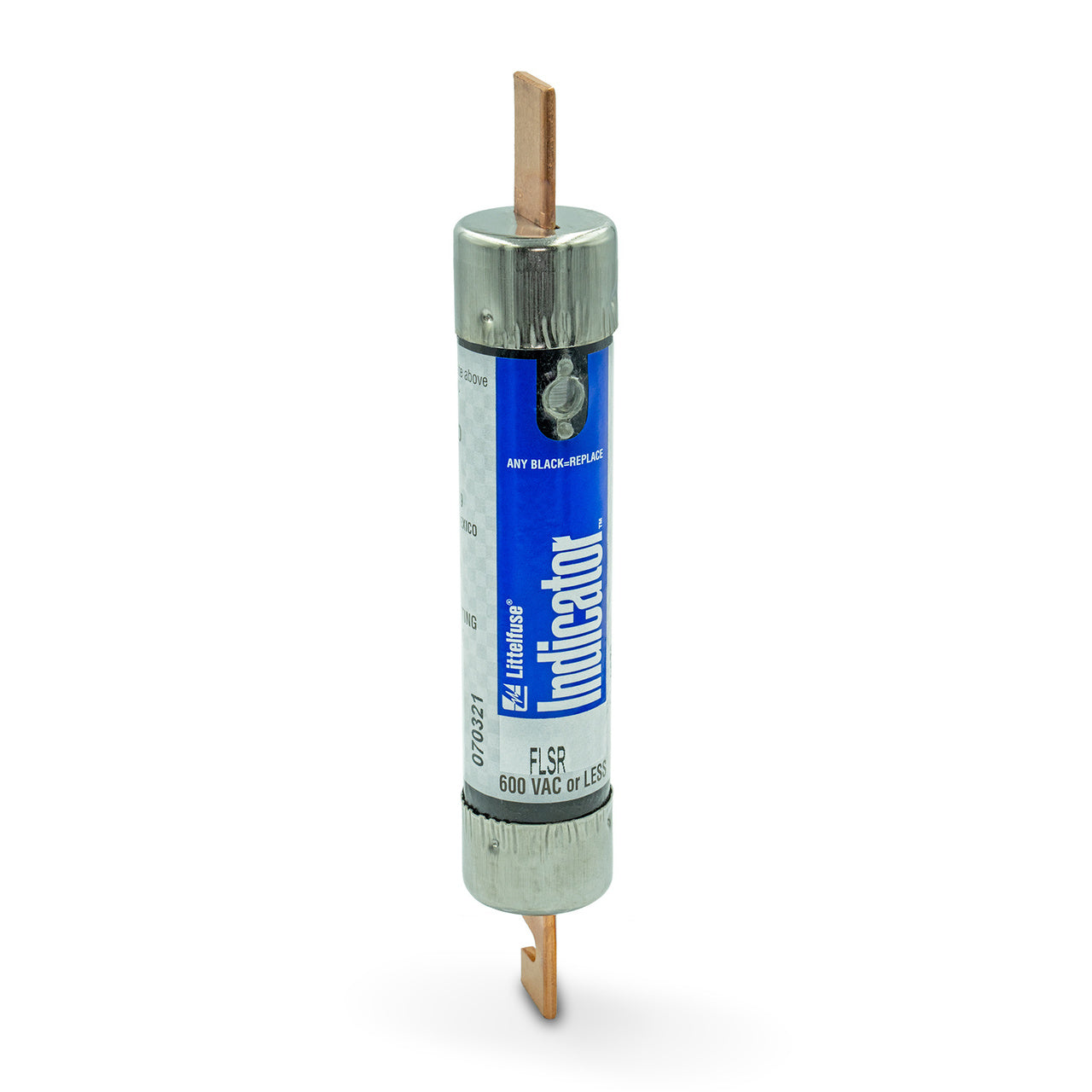

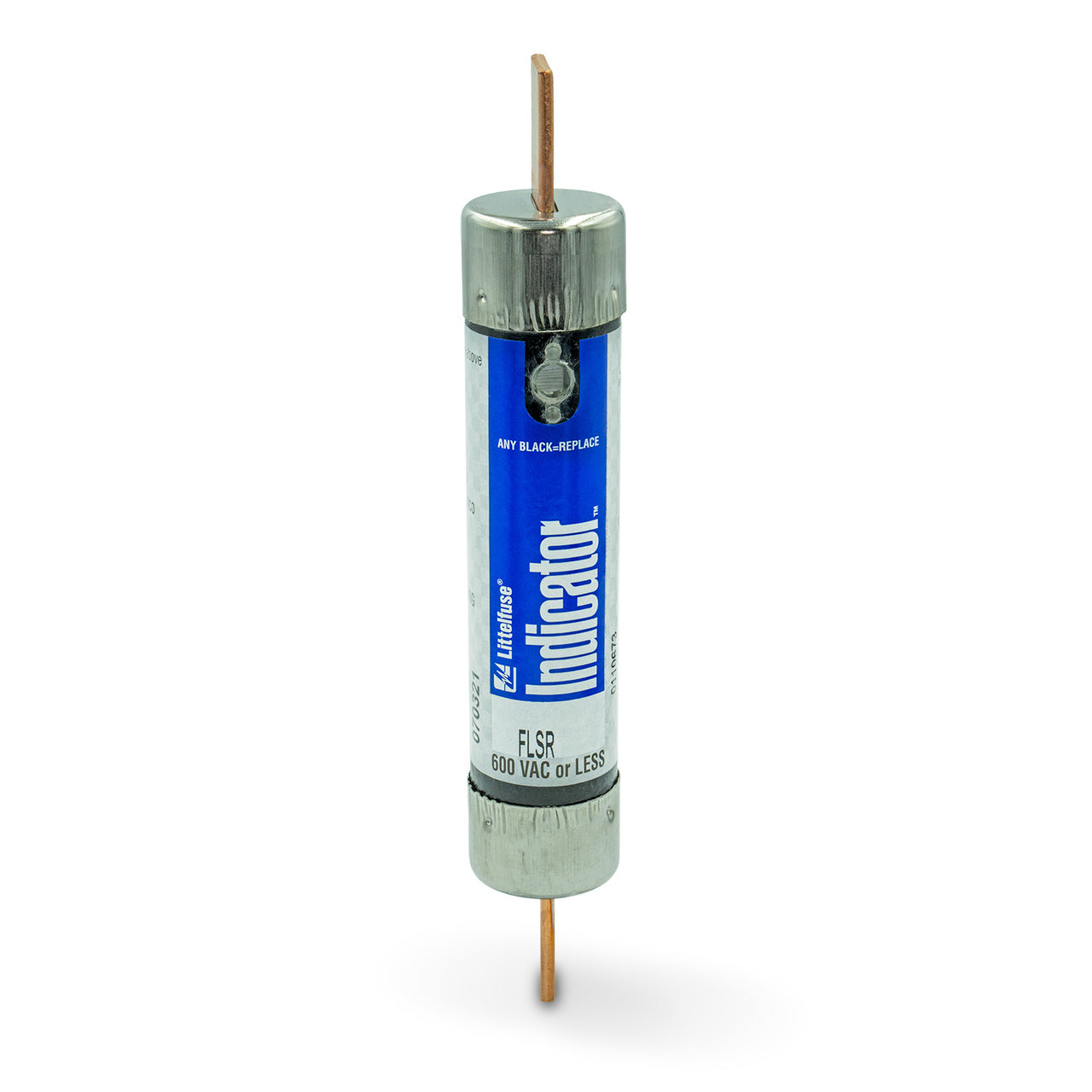

Littelfuse FLSR-080ID - RK5 Class Fuse 80A (200kA AIC @600V)

Littelfuse FLSR-080ID is a low voltage current-limiting fuse from the Powr-Gard family designed to provide reliable overcurrent protection in industrial electrical systems. It features a 600V AC voltage rating and an 80A current rating, housed within a robust single-barrel construction measuring 1.31 inches in diameter and weighing 5.19 lb. This RK5 class fuse complies with industry standards and offers a high 200kA interrupting rating at 600V AC for superior short-circuit protection. It is typically applied in motor branch circuits, feeder circuits, and industrial control panels where high fault current interruption is critical.

Key Features & Specifications

• Type: Low Voltage Fuse, Current-Limiting, Single Barrel, FLSR_ID
• Voltage Rating: 600V AC
• Current Rating: 80A
• Dimensions: 1.31 inches (Diameter)
• Standards: UL/CSA
• Applications: Motor Branch Circuits, Feeder Circuits, Industrial Control Panels
• Class Rating: RK5
• AIC rating: 200kA @ 600V AC
• Barrels: 1
• Weight: 5.19 lb

Product Identification

• UPC: 07945802548
• GTIN: 00079458025484
